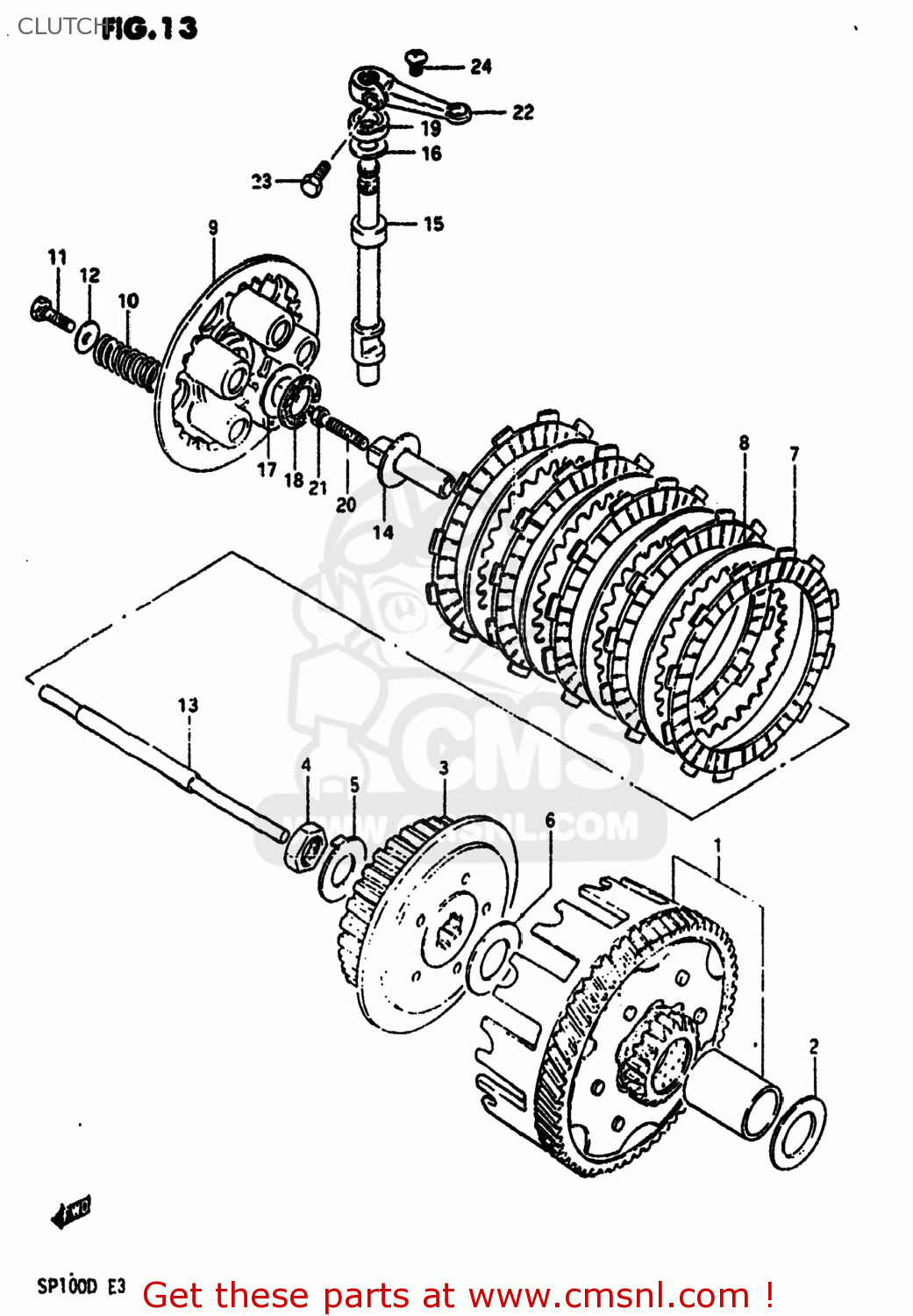

CLUTCH

ref

part #

description

quantity

1

2120005860
ref: 1
21200-05863

GEAR ASSEMBLY,PRIMARY DRIVE

€ 104.00

2

0821120353
ref: 2

WASHER

€ 2.50

3

2141105200
ref: 3

HUB,CLUTCH SLEEVE

€ 47.00

4

0914016014
ref: 4
09140-16005

NUT

€ 4.50

5

0916916003
ref: 5

WASHER

€ 2.00

6

0821120352
ref: 6

WASHER

€ 3.00

7

2144128301
ref: 7
21441-13A01

PLATE,CLUTCH DRIVE

€ 8.50

8

2145128000
ref: 8
21451-19A00

PLATE,CLUTCH DRIVEN (NAS)

€ 4.50

9

2146214102
ref: 9
21462-14103

PLATE,CLUTCH PRESSURE

€ 16.00

10

0944015014
ref: 10

SPRING

€ 4.00

11

0910005002
ref: 11

BOLT(5X16)

€ 2.00

12

0916005017
ref: 12
09160-05043

WASHER (5.5X16X1.2)

€ 2.50

13

2311005200
ref: 13
23110-05203

ROD,CLUTCH PUSH

€ 11.00

14

2312138200
ref: 14
23121-38201

PIECE,CLUTCH PUSH

€ 17.00

15

2312205200
ref: 15

CAMSHAFT,CLUTCH RELEASE

€ 31.00

16

0821110201
ref: 16
09181-10195

WASHER,THRUST

€ 2.00

17

0916015015
ref: 17
09160-15045

WASHER

€ 4.00

18

0926315003
ref: 18

BEARING(15X28X2)

€ 7.00

19

0928210007
ref: 19
09282-10012

OIL SEAL

€ 7.50

20

0913406001
ref: 20
09134-06010

SCREW

€ 3.00

21

0831022068
ref: 21
08310-00067

NUT 6MM

€ 2.50

22

2327146000
ref: 22
23271-46010

ARM,CLUTCH RELEASE

€ 14.50

23

0110706168
ref: 23
01500-06167

BOLT, UPPER

€ 3.00

24

0214206108
ref: 24
02142-06107

SCREW

€ 2.00
