ELECTRICAL

SP100 1983 (D) USA (E03)

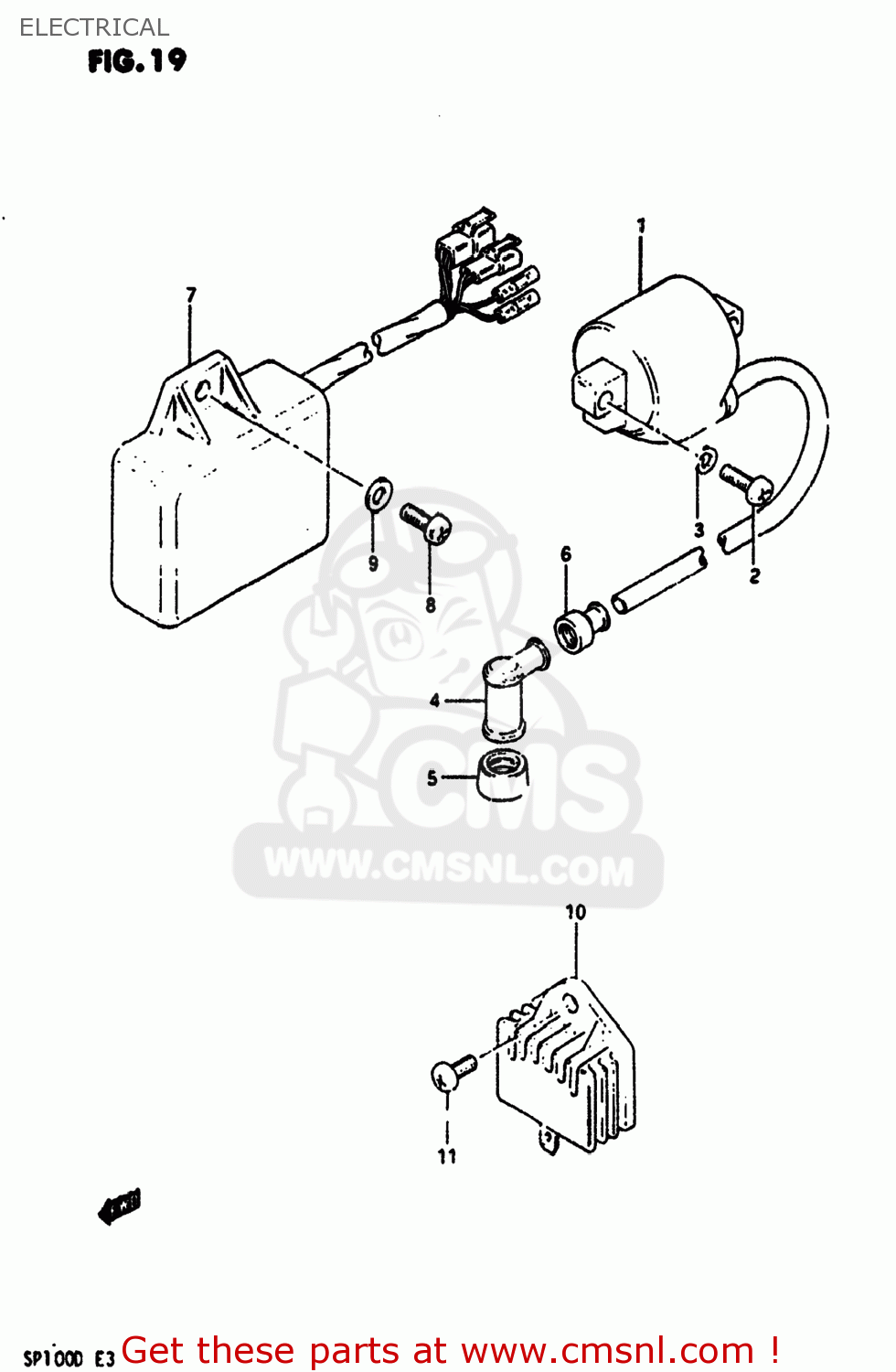

Electrical diagram SP100 1983 (D) USA (E03)

prices are in EUR

ref

part #

description

quantity

3341005210
ref: 1
33410-01X50

COIL ASSEMBLY,IGNITION

€ 90.00

0211206208
ref: 2
02112-06207

SCREW

€ 2.00

0832121068
ref: 3
08321-01067

LOCK WASHER

€ 2.50

3351022010
ref: 4
33510-97313

CAP ASSY,SPARK PLUG

€ 16.50

3354138210
ref: 5

SEAL,SPARK PLUG

€ 7.00

3354298000
ref: 6
33542-38B00

SEAL,SPARK PLU

€ 4.50

3290005210
ref: 7

CDI UNIT

€ 355.00

0211206168
ref: 8
02112-06167

SCREW

€ 2.50

0832221068
ref: 9
08322-01067

WASHER

€ 2.00

3280038200
ref: 10

RECTIFIER ASSY,REGULATOR

€ 72.50

0211206128
ref: 11
02112-06127

SCREW 6X12

€ 2.00
