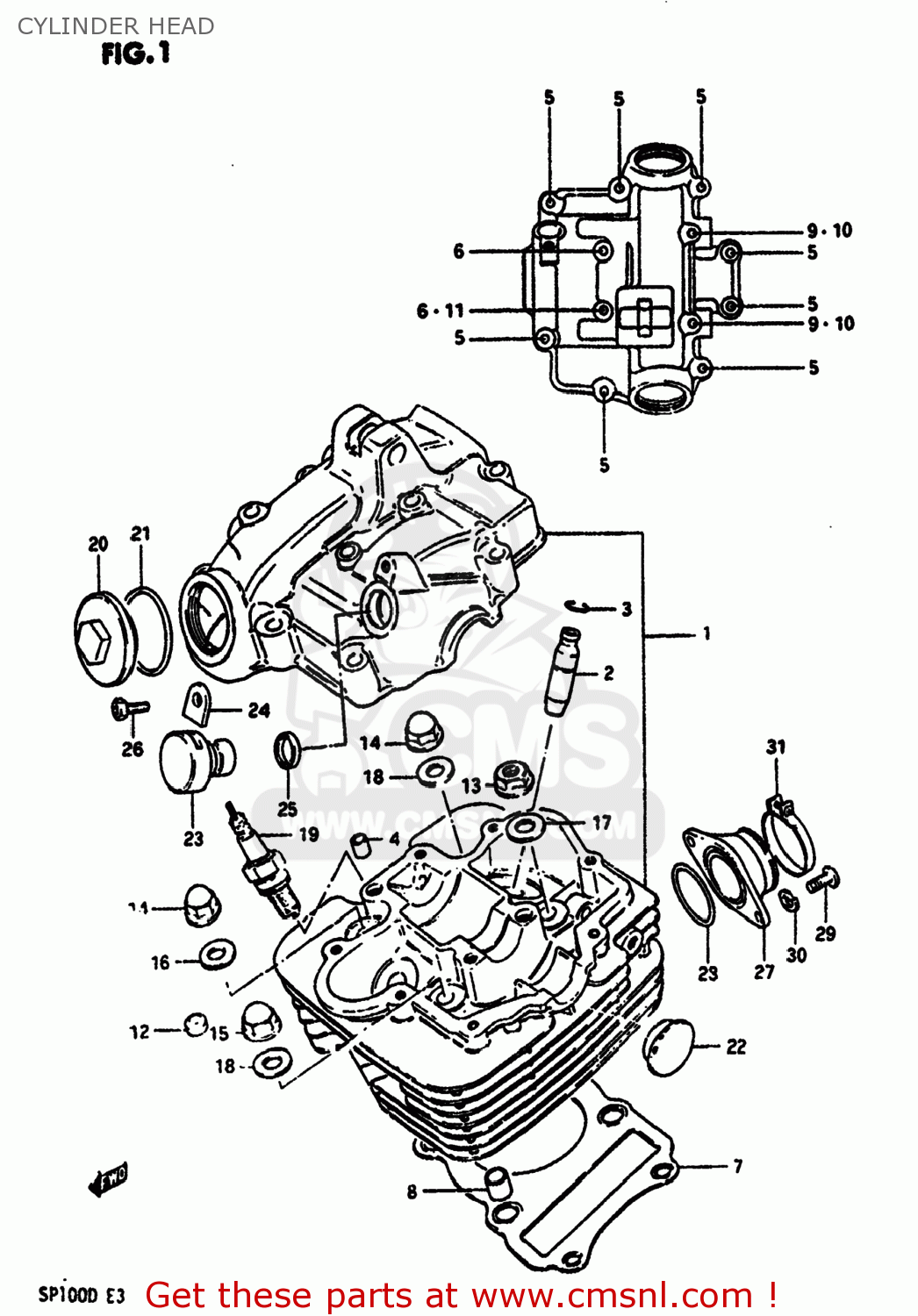

CYLINDER HEAD

ref

part #

description

quantity

1

1110005253
ref: 1
11100-05290

HEAD ASSEMBLY,CYLINDER

€ 198.00

2

1111505270
ref: 2

GUIDE,VALVE

€ 18.50

3

0938110004
ref: 3

RING,SNAP

€ 1.50

4

0720608001
ref: 4

PIN

€ 0.00

5

0151706355
ref: 5
01550-0635A

BOLT

€ 2.50

6

0151706605
ref: 6
01550-0660A

BOLT ,6X60

€ 2.50

7

1114105210
ref: 7
11141-05202

GASKET,CYLINDER HEAD

€ 7.50

8

0421111169
ref: 8

PIN

€ 2.00

9

0142106255
ref: 9
01421-0625A

STUD 6X25

€ 2.00

10

0831616065
ref: 10
08316-1006B

NUT

€ 2.50

11

0916806004
ref: 11

GASKET(6.2X11X1).2 (NAS)

€ 1.50

12

1115145000
ref: 12

PAD,CYLINDER HEAD

€ 3.00

13

0915908031
ref: 13
09159-08034

NUT

€ 2.00

14

0915908035
ref: 14
09159-08029

NUT (8MM)

€ 6.00

15

0915908029
ref: 15

NUT

€ 6.00

16

0916008053
ref: 16
09160-08039

WASHER (8.5X19X2.3)

€ 2.00

17

0916008039
ref: 17

WASHER(8.5X19X2.3)

€ 2.00

18

0916808012
ref: 18
09168-08013

GASKET (NAS)

€ 4.50

19-1

0948200144
ref: 19-1

SPARK PLUG D8EA

€ 3.50

19-2

0948200145
ref: 19-2
09482-00223

SPARK PLUG X24ES-U

€ 3.50

19-3

0948200275
ref: 19-3
09482-00144

SPARK PLUG A6YC

€ 3.50

20

1117532400
ref: 20
11175-42A00

CAP,INSPECTION

€ 9.50

21

0928030001
ref: 21

O RING(D:3,ID:29.5)

€ 2.00

22

0924122002
ref: 22

PLUG(OD:22.5)

€ 5.50

23

2644245000
ref: 23

PLUG,TACH GEAR SLEEVE HOLE

€ 15.50

24

2644933000
ref: 24

PLATE,TACH DRIVE GEAR SLEEVE

€ 3.50

25

2645145000A
ref: 25

SEAL,TACHOMETER DRIVEN

€ 4.50

26

0912805101
ref: 26

SCREW(5X12)

€ 1.50

27

1311005210
ref: 27
13110-05200

PIPE,INTAKE

€ 29.00

28

0928032006
ref: 28

O RING(D:2.4,ID:31.7)

€ 2.50

29

0211206168
ref: 29
02112-06167

SCREW

€ 2.50

30

0832121068
ref: 30
08321-01067

LOCK WASHER

€ 2.50

31

0940240305
ref: 31
09402-40303

CLAMP

€ 4.00
