SEAT
SP125 1986 (G) USA (E03)

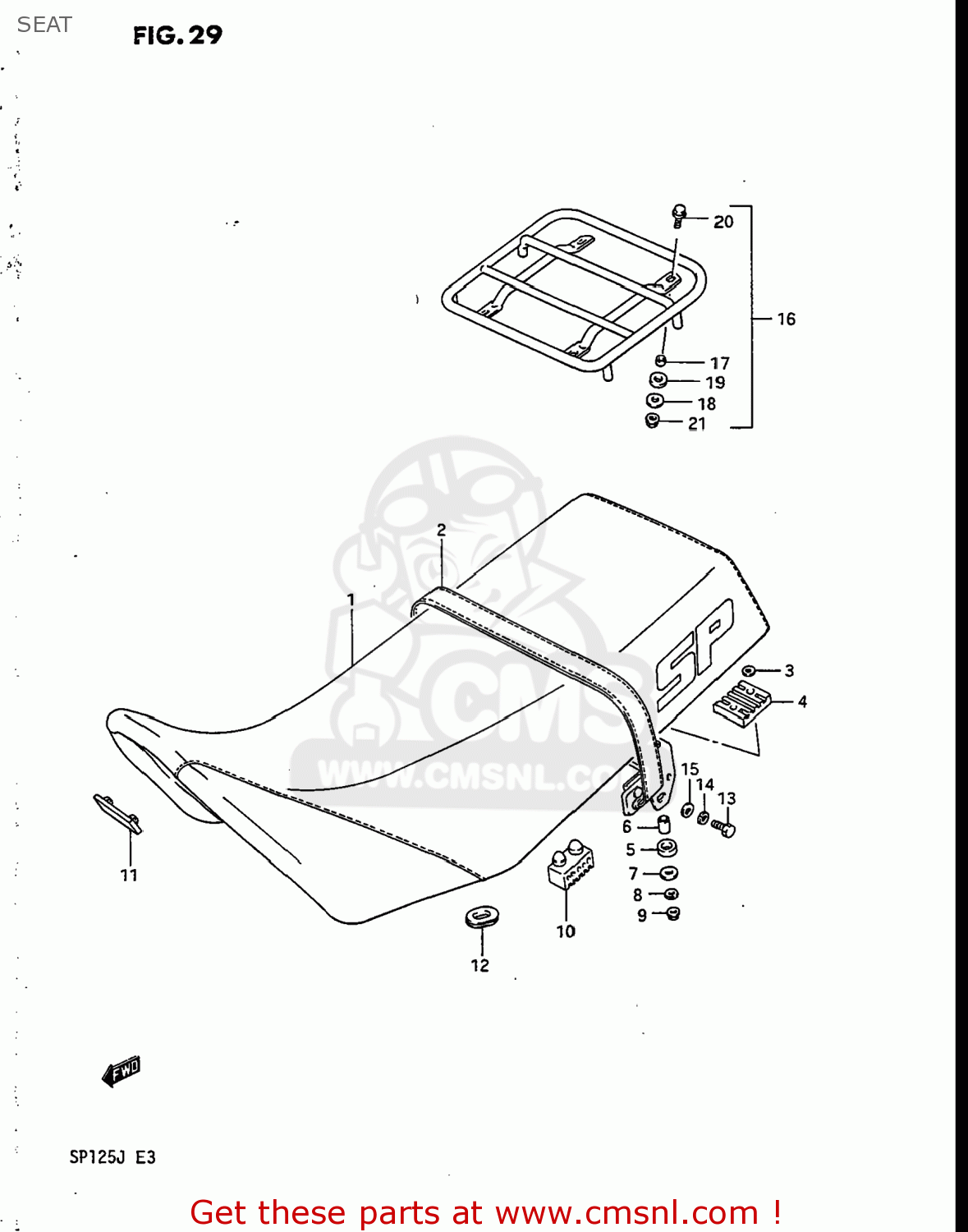

Seat diagram SP125 1986 (G) USA (E03)
SEAT SP125 1986 (G) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4510044A2158D
ref: 1-1
45100-44X01-4UZ
SEAT ASSEMBLY
€ 139.50
1-2
4510044A404UZ
ref: 1-2
45100-44X01-4UZ
SEAT ASSEMBLY
€ 139.50
2-1
4518042A0058D
ref: 2-1
45180-42A00-4UZ
BAND,SEAT
€ 12.00
2-2
4518042A004UZ
ref: 2-2
BAND,SEAT
€ 12.00
3
0832221066
ref: 3
08322-0106B
WASHER, LOWER
€ 2.00
4
4515023450
ref: 4
CUSHION,FR PLATE
€ 3.00
5
4514723450
ref: 5
CUSHION,SEAT FR
€ 1.50
6
4521923450
ref: 6
SPACER,SEAT SUPPORT
€ 2.50
7
0821206201
ref: 7
WASHER
€ 1.50
8
0832121066
ref: 8
08321-0106A
WASHER,LOCK
€ 2.00
9
0831011066
ref: 9
08310-0006A
NUT
€ 2.00
10
4514931300
ref: 10
CUSHION,SEAT(40X20X15)
€ 2.00
11
0932108009
ref: 11
CUSHION
€ 4.00
12
0932908003
ref: 12
CUSHION
€ 3.50
13
0110708165
ref: 13
01500-0816B
BOLT
€ 2.00
14
0832121084
ref: 14
08321-0108A
WASHER,LOCK,8.
€ 2.50
15
0832211084
ref: 15
08322-0108A
WASHER
€ 1.50
16
4630013830
ref: 16
46300-13831
CARRIER SET,SUPPORT
€ 50.00
17
4635613A00
ref: 17
SPACER
€ 0.00
18
0916006056
ref: 18
WASHER(6.5X18X1)
€ 2.00
19
0932010036
ref: 19
CUSHION
€ 2.50
20
0151706205
ref: 20
01550-0620A
BOLT
€ 2.50
21
0831616064
ref: 21
08316-1006B
NUT 6MM
€ 2.50
