TURN SIGNAL LAMP
SP125 1986 (G) USA (E03)

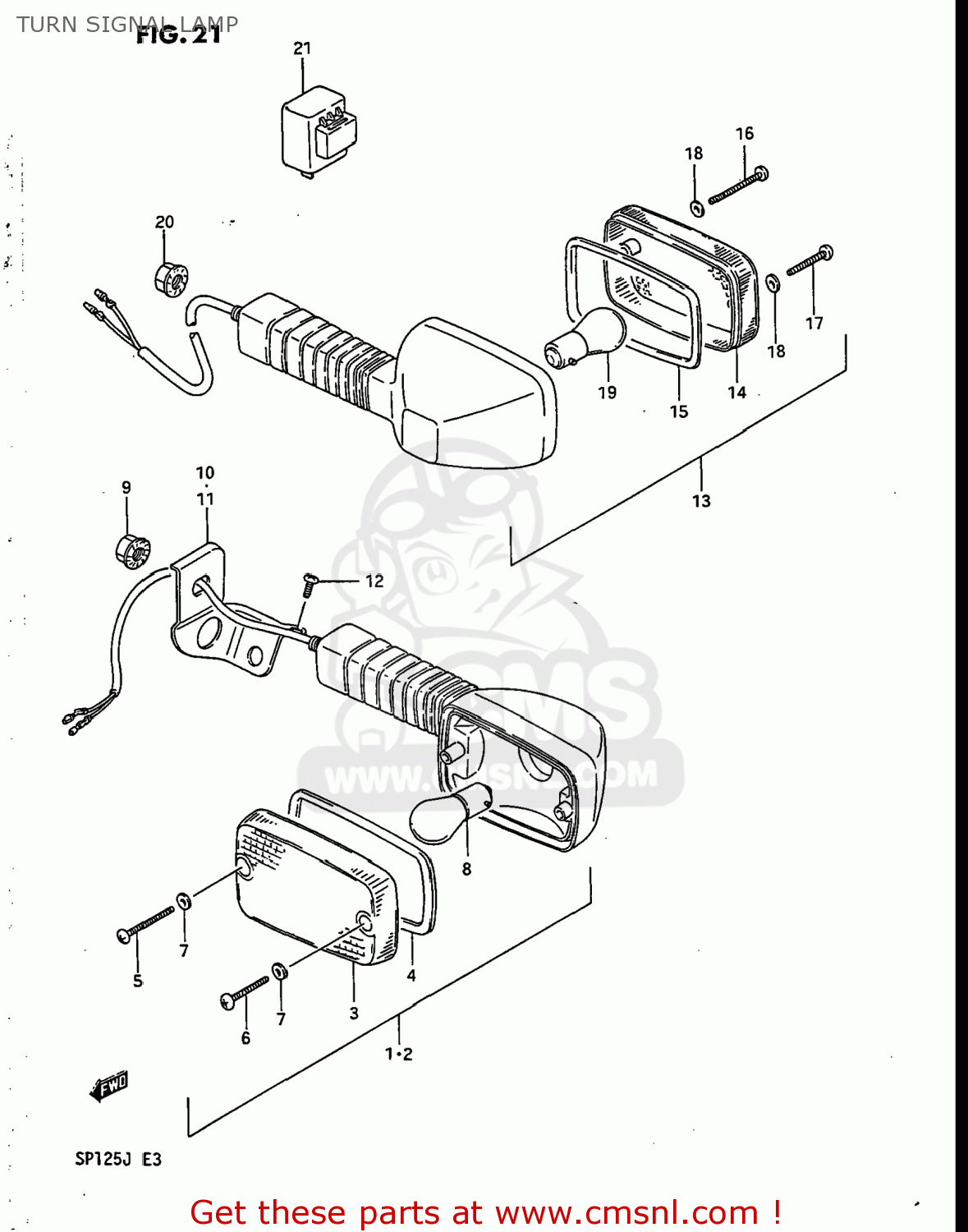

Turn signal lamp diagram SP125 1986 (G) USA (E03)
TURN SIGNAL LAMP SP125 1986 (G) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3560144A31
ref: 1
35603-44A31-999
LAMP ASSEMBLY,FRONT TURN SIGNAL
€ 127.50
2
3560114A53999
ref: 2
35603-44A31-999
LAMP ASSEMBLY,FRONT TURN SIGNAL
€ 127.50
3
3561202181
ref: 3
LENS,FR
€ 9.00
4
3561348700
ref: 4
GASKET (NAS)
€ 7.50
5
3562302180
ref: 5
SCREW,TURN SIG LENS FITTING
€ 2.00
6
0321104308
ref: 6
03211-04306
SCREW
€ 1.50
7
3562743010
ref: 7
GASKET (NAS)
€ 2.00
8
0947106011
ref: 8
BULB(6V17W,STANLEY,A4513A)
€ 9.50
9
0831626105
ref: 9
08316-2010B
NUT
€ 3.50
10
3567044A00
ref: 10
35670-44A01
BRACKET,FRONT TURN SIGNAL,RIGHT
€ 13.50
11
3568044A00
ref: 11
35680-44A01
BRACKET,FRONT TURN SIGNAL
€ 13.50
12
0214206108
ref: 12
02142-06107
SCREW
€ 2.00
13
3560344A31999
ref: 13
LAMP ASSY,RR TURNSIGNAL
€ 127.50
14
3561202181
ref: 14
LENS,FR
€ 9.00
15
3561348700
ref: 15
GASKET (NAS)
€ 7.50
16
3562302180
ref: 16
SCREW,TURN SIG LENS FITTING
€ 2.00
17
0321104308
ref: 17
03211-04306
SCREW
€ 1.50
18
3562743010
ref: 18
GASKET (NAS)
€ 2.00
19
0947106011
ref: 19
BULB(6V17W,STANLEY,A4513A)
€ 9.50
20
0831626105
ref: 20
08316-2010B
NUT
€ 3.50
21
3861005200
ref: 21
38610-05X50
RELAY,TURN SIGNAL
€ 46.50
