CYLINDER HEAD
SP500 1981 (X) USA (E03)

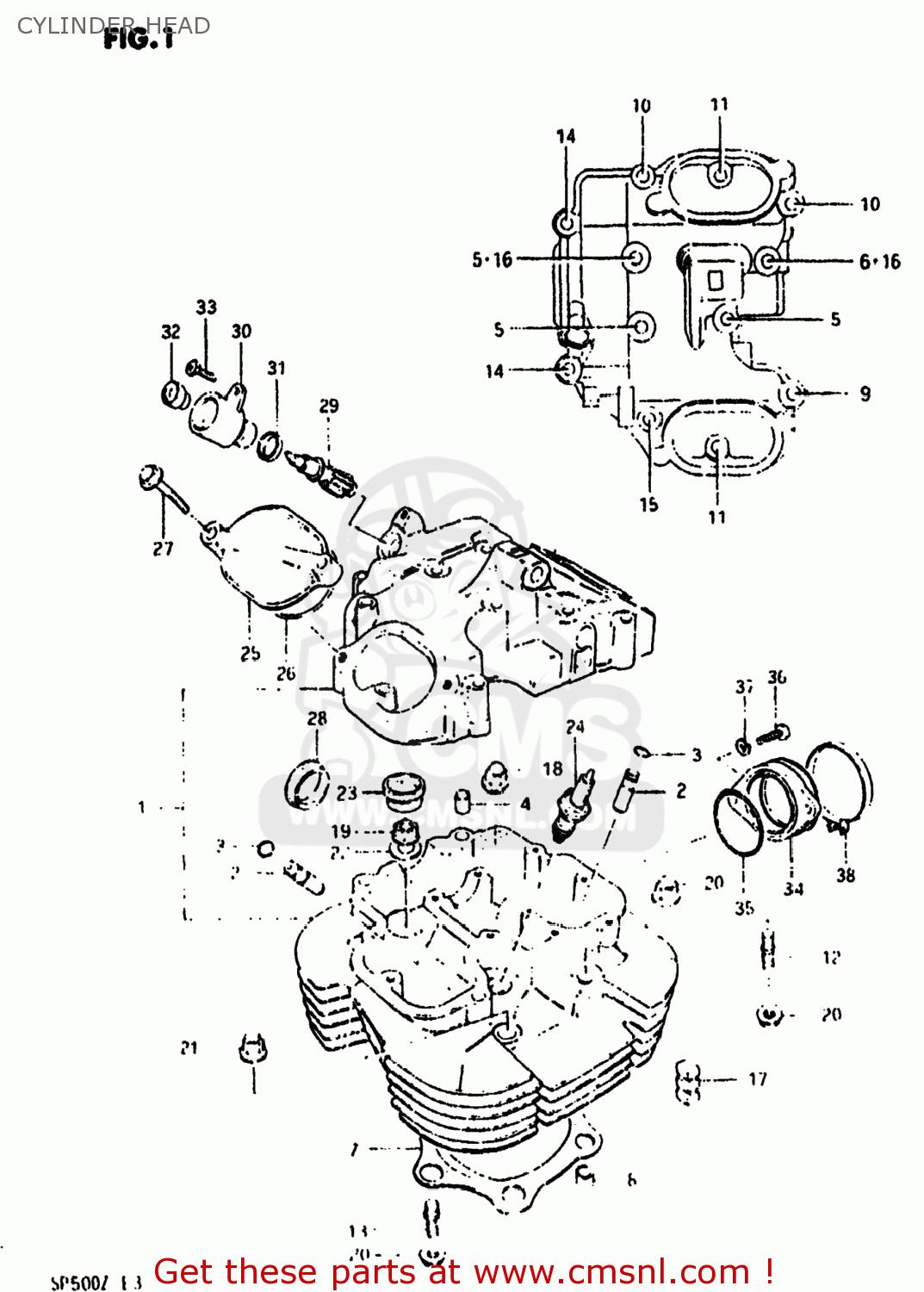

Cylinder head diagram SP500 1981 (X) USA (E03)
CYLINDER HEAD SP500 1981 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1110037400
ref: 1
HEAD,CYLINDER (4-VALVE)
€ 748.00
2
1111537470
ref: 2
GUIDE,VALVE
€ 20.00
3
0938110003
ref: 3
RING,SNAP
€ 2.50
4
0920608001
ref: 4
PIN(6.2X8X11)
€ 2.00
5
0151706608
ref: 5
01550-06607
BOLT (6X60)
€ 2.50
6
0910306040
ref: 6
BOLT 6X55
€ 7.00
7
1114137400
ref: 7
GASKET,CYLINDER HEAD (NAS)
€ 42.00
8
0920613001
ref: 8
04211-13189
PIN
€ 2.50
9
0151706508
ref: 9
01550-06507
BOLT ,6X50
€ 2.00
10
0151706458
ref: 10
01550-06457
BOLT,UNDER
€ 2.50
11
0151706308
ref: 11
01550-06307
BOLT
€ 2.00
12
0910808084
ref: 12
STUD
€ 3.50
13
0910808083
ref: 13
STUD
€ 4.00
14
0910306036
ref: 14
09103-06033
BOLT
€ 3.50
15
0151706608
ref: 15
01550-06607
BOLT (6X60)
€ 2.50
16
0916806009
ref: 16
09168-06023
GASKET (NAS)
€ 2.00
17
1125141520
ref: 17
11251-36500
PAD,CYLINDER
€ 6.50
18
0915910035
ref: 18
09159-10026
NUT
€ 6.00
19
0831616108
ref: 19
08316-10107
NUT
€ 2.00
20
0831616088
ref: 20
08316-10087
NUT
€ 2.50
21
0915910026
ref: 21
NUT
€ 6.00
22
0916810019
ref: 22
09168-10017
GASKET (NAS)
€ 3.50
23
1114537400
ref: 23
11145-41B01
NUT,CYLINDER HEAD SEAL
€ 12.00
24-1
0948200144
ref: 24-1
SPARK PLUG D8EA
€ 3.50
24-2
0948200145
ref: 24-2
09482-00223
SPARK PLUG X24ES-U
€ 3.50
25
1117537401
ref: 25
CAP,INSPECTION HOLE
€ 16.00
26
0928060004
ref: 26
O RING(D:2.4,ID:23)
€ 4.50
27
0151706258
ref: 27
01550-06257
BOLT
€ 2.50
28
0924130004
ref: 28
PLUG(OD:30)
€ 6.50
29
2643137400
ref: 29
26431-37401
GEAR,TACHOMETER DRIVEN
€ 35.00
30
2644149000
ref: 30
SLEEVE,TACHOMETER DRIVE GEAR
€ 18.00
31
2645145000A
ref: 31
SEAL,TACHOMETER DRIVEN
€ 4.50
32
0928905002
ref: 32
SEAL,OIL(5X12X8)
€ 11.00
33
0912805101
ref: 33
SCREW(5X12)
€ 1.50
34
1311037400
ref: 34
13101-14A10
PIPE,INTAKE
€ 38.50
35
0928046001
ref: 35
09280-46002
O-RING (D:2.4 ID:45.7)
€ 9.50
36
0211206168
ref: 36
02112-06167
SCREW
€ 2.50
37
0832121068
ref: 37
08321-01067
LOCK WASHER
€ 2.50
38
0940258306
ref: 38
CLAMP
€ 5.00
