STEERING STEM (MODEL X)
SP500 1981 (X) USA (E03)

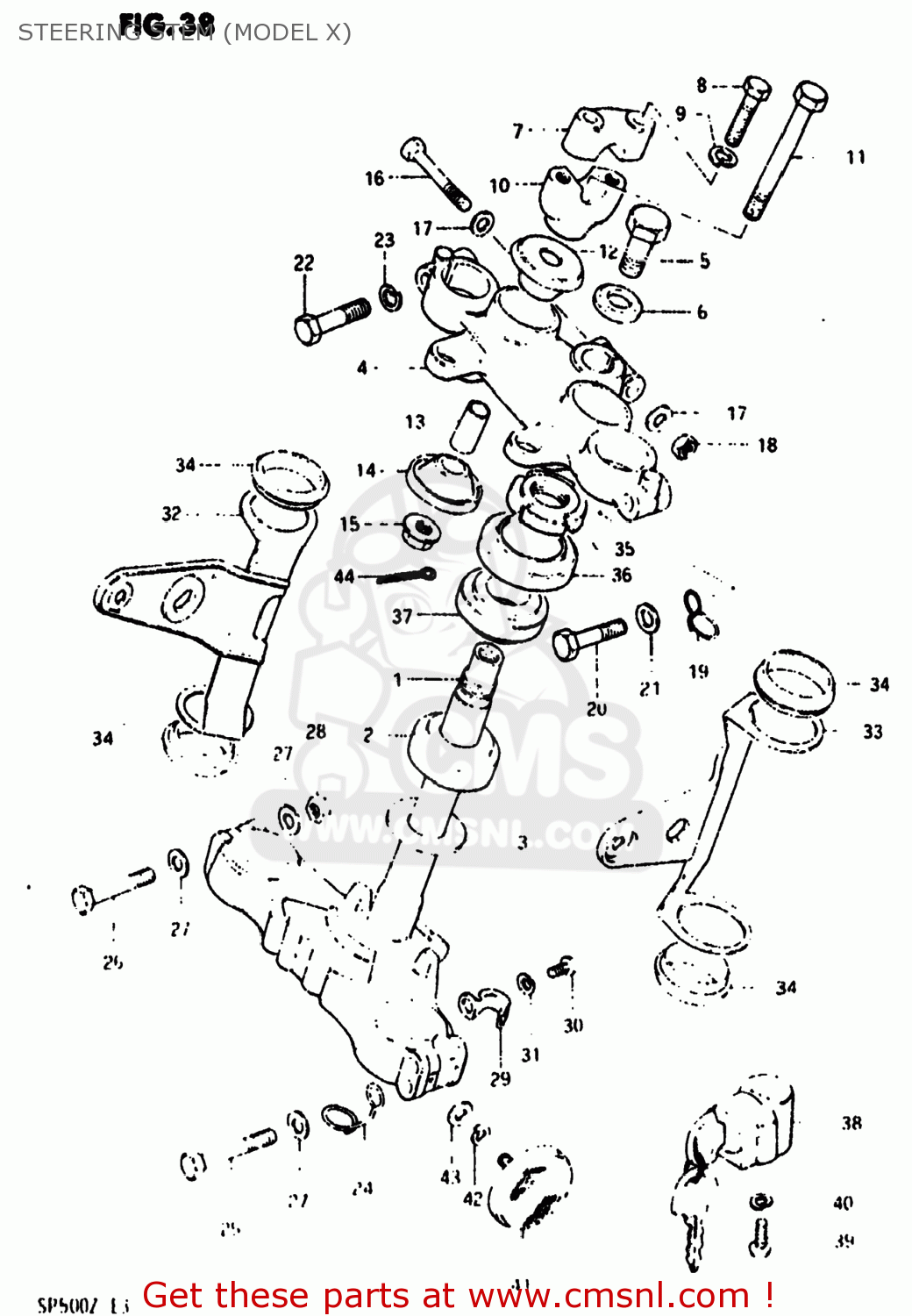

Steering stem (model x) diagram SP500 1981 (X) USA (E03)
STEERING STEM (MODEL X) SP500 1981 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
514103741008C
ref: 1
51410-37220-08C
STEM,STEERING
€ 360.50
2
0926530005
ref: 2
09265-30009
BEARING
€ 49.50
3
0821130402
ref: 3
09181-30184
WASHER,THRUST
€ 4.00
4
513113741008C
ref: 4
HEAD,STEERING STEM
€ 68.00
5
5135130540
ref: 5
BOLT,STEERING STEM HEAD
€ 5.00
6
5135641310
ref: 6
WASHER
€ 6.00
7
562114030008C
ref: 7
HOLDER,HANDLEBAR
€ 7.00
8
0110708358
ref: 8
01500-0835B
BOLT
€ 3.50
9
0832121088
ref: 9
08321-01087
LOCK WASHER
€ 2.00
10
562213741008C
ref: 10
HOLDER,HANDLEBAR
€ 21.00
11
5132137410
ref: 11
BOLT,HANDLE HOLDER
€ 7.00
12
5624137410
ref: 12
CUSHION,HANDLE,UPPER
€ 11.50
13
0918010065
ref: 13
SPACER(10.2X14X46)
€ 4.50
14
5624237410
ref: 14
CUSHION,HANDLE,LOWER
€ 32.50
15
0831931108
ref: 15
NUT
€ 3.00
16
0110708558
ref: 16
01500-08557
BOLT 8X55
€ 3.00
17
0832221088
ref: 17
08322-01087
WASHER
€ 2.00
18
0831012088
ref: 18
08310-00087
NUT
€ 2.00
19
5145537410
ref: 19
CLAMP,METER CABLE
€ 2.50
20
0110710408
ref: 20
01500-10407
BOLT 10X40
€ 3.00
21
0832211108
ref: 21
08322-01107
WASHER
€ 2.50
22
0110710408
ref: 22
01500-10407
BOLT 10X40
€ 3.00
23
0832121108
ref: 23
08321-01107
LOCK WASHER
€ 2.00
24
5145532400
ref: 24
51455-29330
GUIDE,CABLE
€ 5.50
25
0110708608
ref: 25
01500-0860B
BOLT
€ 2.50
26
0110708558
ref: 26
01500-08557
BOLT 8X55
€ 3.00
27
0832221088
ref: 27
08322-01087
WASHER
€ 2.00
28
0831012088
ref: 28
08310-00087
NUT
€ 2.00
29
5145305110
ref: 29
CLIP,BRAKE CABLE
€ 4.50
30
0211206108
ref: 30
02112-06107
SCREW
€ 1.50
31
0832121068
ref: 31
08321-01067
LOCK WASHER
€ 2.50
32
5153037410291
ref: 32
BRACKET,HEADLAMP,RIGHT
€ 22.50
33
5154037410291
ref: 33
BRACKET,HEADLAMP,LEFT
€ 24.50
34
5155341410
ref: 34
CUSHION,HEADLAMP BRACKET
€ 5.50
35
5163128000
ref: 35
NUT,STEERING STEM(25X44X10)
€ 12.50
36
5164349001
ref: 36
51643-49002
DUST SEAL,STEERING,UPPER
€ 7.50
37
0926525008
ref: 37
09265-25019
TAPER,ROLLER BEARING
€ 48.50
38
5191025311
ref: 38
LOCK ASSY,STEERING
€ 22.50
39
0211205128
ref: 39
02112-05127
SCREW
€ 2.50
40
0832121058
ref: 40
08321-0105A
LOCK WASHER
€ 2.00
41
3595045010
ref: 41
REFLEX REFLECTOR,FR
€ 17.00
42
0832121058
ref: 42
08321-0105A
LOCK WASHER
€ 2.00
43
0832221058
ref: 43
08322-01057
WASHER
€ 2.50
44
0411120208
ref: 44
04111-2020A
PIN 20X20
€ 1.50
