REAR SWINGING ARM
SP500 1981 (X) USA (E03)

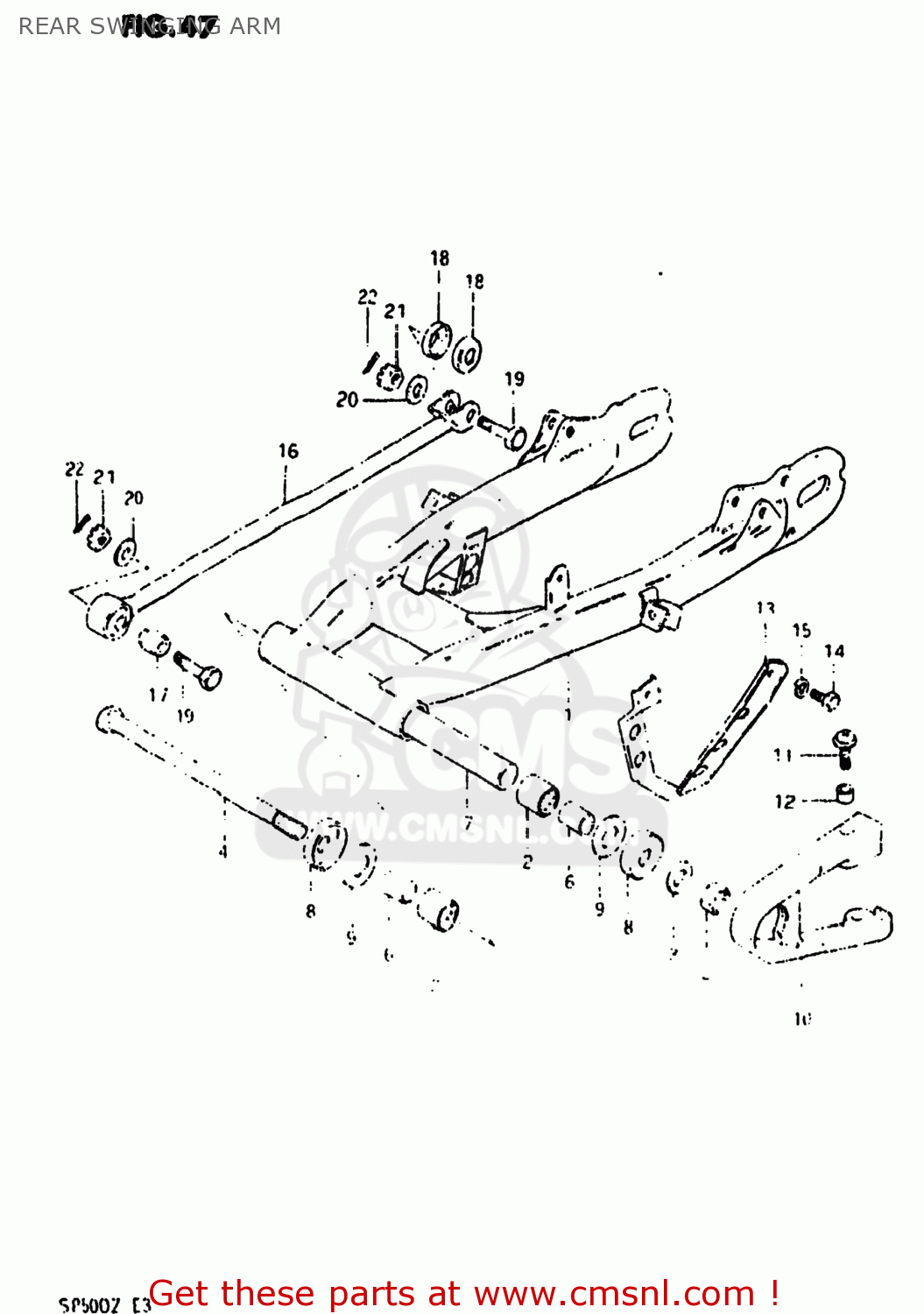

Rear swinging arm diagram SP500 1981 (X) USA (E03)
REAR SWINGING ARM SP500 1981 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
611003786008C
ref: 1
ARM,REAR SWING
€ 276.00
2
0926322022
ref: 2
BEARING(22X29X20)
€ 27.00
3
0832211168
ref: 3
08322-01167
WASHER
€ 2.00
4
6121137201
ref: 4
SHAFT,REAR SWING ARM
€ 33.00
5
0831921168
ref: 5
08319-2116A
NUT 16MM
€ 5.00
6
6125132410
ref: 6
SPACER,RR SWGARM PIVOT
€ 8.50
7
0918016018
ref: 7
SPACER (16.2X21.7X142)
€ 12.50
8
6126232410
ref: 8
COVER,RR SWGARM DUST SEAL
€ 10.00
9
0821116341
ref: 9
WASHER
€ 2.00
10
6127337410
ref: 10
BUFFER,CHAIN TOUCH DEFLECTOR
€ 20.00
11
6127537400
ref: 11
SCREW,CHAIN TOUCH DEFEND
€ 1.50
12
0918005015
ref: 12
09180-05046
SPACER (5.5X8X4)
€ 3.00
13
6134130500
ref: 13
61341-30501
GUIDE,CHAIN
€ 13.00
14
0110708128
ref: 14
01500-08127
BOLT 8X12
€ 2.50
15
0832111088
ref: 15
LOCK WASHER
€ 2.00
16
643103741008C
ref: 16
64310-37411-08C
TORQUE LINK,REAR
€ 28.50
17
0931908018
ref: 17
BUSH
€ 6.00
18
6433940410
ref: 18
6433940410
19-1
0910108003
ref: 19-1
BOLT 8X28
€ 2.00
19-2
0910108014
ref: 19-2
BOLT 8X29.5
€ 1.50
20
0832211088
ref: 20
08322-01087
WASHER
€ 2.00
21
0831441088
ref: 21
08314-4008B
NUT 8MM
€ 2.50
22
0411120208
ref: 22
04111-2020A
PIN 20X20
€ 1.50
