MUFFLER
SP500 1981 (X) USA (E03)

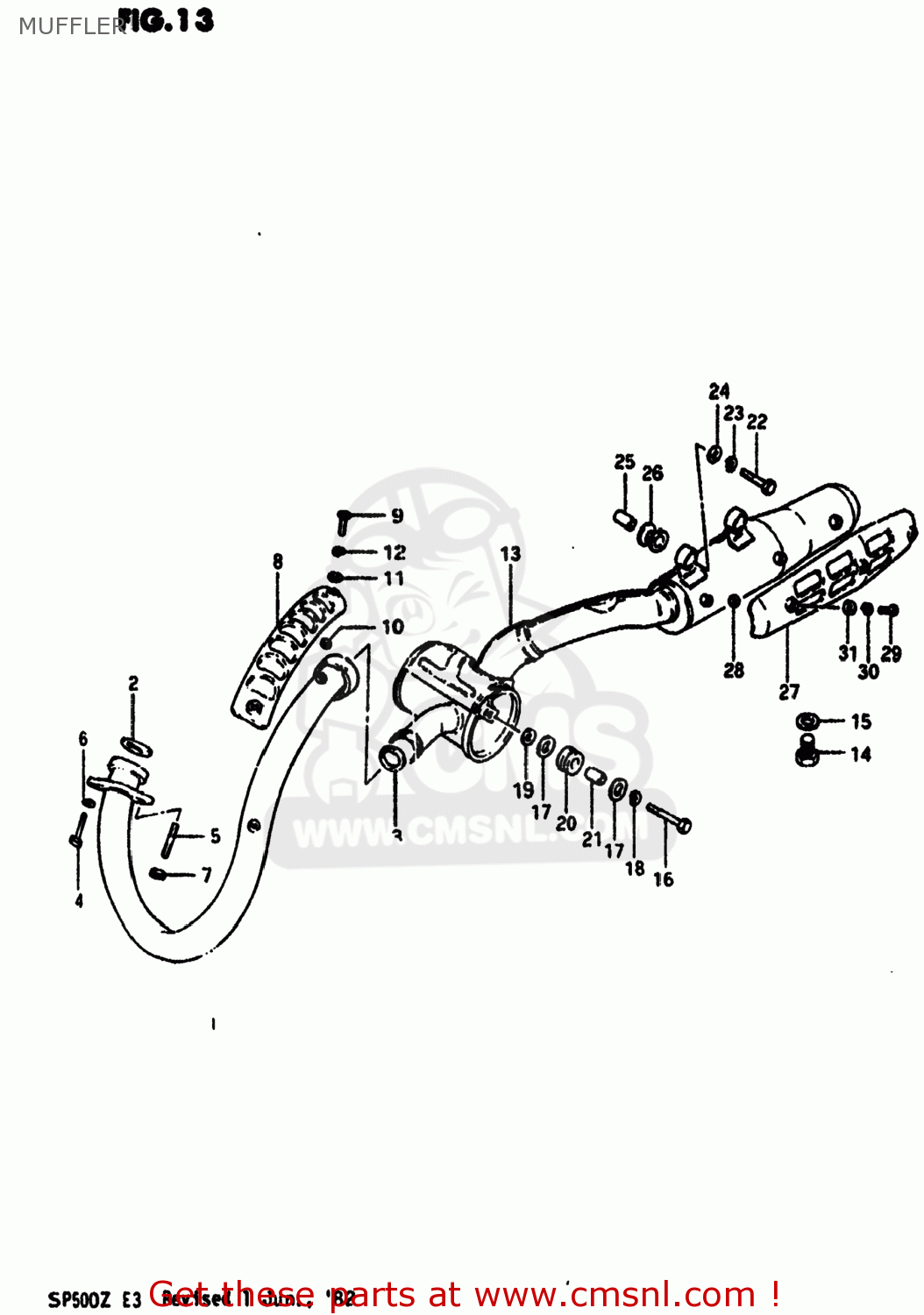

Muffler diagram SP500 1981 (X) USA (E03)
MUFFLER SP500 1981 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1415037401
ref: 1
PIPE,EXHAUST
€ 81.50
2
1418111020
ref: 2
14181-01D00
GASKET,EXHAUST PIPE (NAS)
€ 8.00
3
1418105020
ref: 3
14181-18C00
GASKET,EXHAUST PIPE (NAS)
€ 6.50
4
0110708258
ref: 4
01500-08257
BOLT
€ 2.50
5
0142108208
ref: 5
01421-0820A
STUD 8X20
€ 2.00
6
0832121088
ref: 6
08321-01087
LOCK WASHER
€ 2.00
7
0831012088
ref: 7
08310-00087
NUT
€ 2.00
8
1418637400
ref: 8
COVER,EXHAUST PIPE
€ 55.00
9
0211206128
ref: 9
02112-06127
SCREW 6X12
€ 2.00
10
0916806005
ref: 10
09168-06105
GASKET 6.2X12X1.5 (MCA)
€ 2.00
11
0832221068
ref: 11
08322-01067
WASHER
€ 2.00
12
0832121068
ref: 12
08321-01067
LOCK WASHER
€ 2.50
13
1430137420
ref: 13
14301-37441-H01
MUFFLER ASSEMBLY
€ 368.50
14
0924712103
ref: 14
PLUG(12X9)
€ 3.50
15
0916812003
ref: 15
GASKET(12X16X2) (NAS)
€ 2.00
16
0110708358
ref: 16
01500-0835B
BOLT
€ 3.50
17
0916008002
ref: 17
09160-08135
WASHER (8.5X29X1.6)
€ 2.00
18
0832121088
ref: 18
08321-01087
LOCK WASHER
€ 2.00
19
0916808010
ref: 19
GASKET
€ 2.00
20
0932014008
ref: 20
09320-13007
CUSHION
€ 4.50
21
0918008076
ref: 21
SPACER (8.6X13.8X13)
€ 2.50
22
0110708408
ref: 22
01500-0840A
BOLT 8X40
€ 3.00
23
0832121088
ref: 23
08321-01087
LOCK WASHER
€ 2.00
24
0916008002
ref: 24
09160-08135
WASHER (8.5X29X1.6)
€ 2.00
25
0918008101
ref: 25
09180-08194
SPACER
€ 3.00
26
0932012026
ref: 26
09320-12043
CUSHION
€ 8.00
27
1478137410
ref: 27
COVER,SECOND MUFFLER
€ 59.50
28
0916806005
ref: 28
09168-06105
GASKET 6.2X12X1.5 (MCA)
€ 2.00
29
0211206128
ref: 29
02112-06127
SCREW 6X12
€ 2.00
30
0832121068
ref: 30
08321-01067
LOCK WASHER
€ 2.50
31
0832221068
ref: 31
08322-01067
WASHER
€ 2.00
