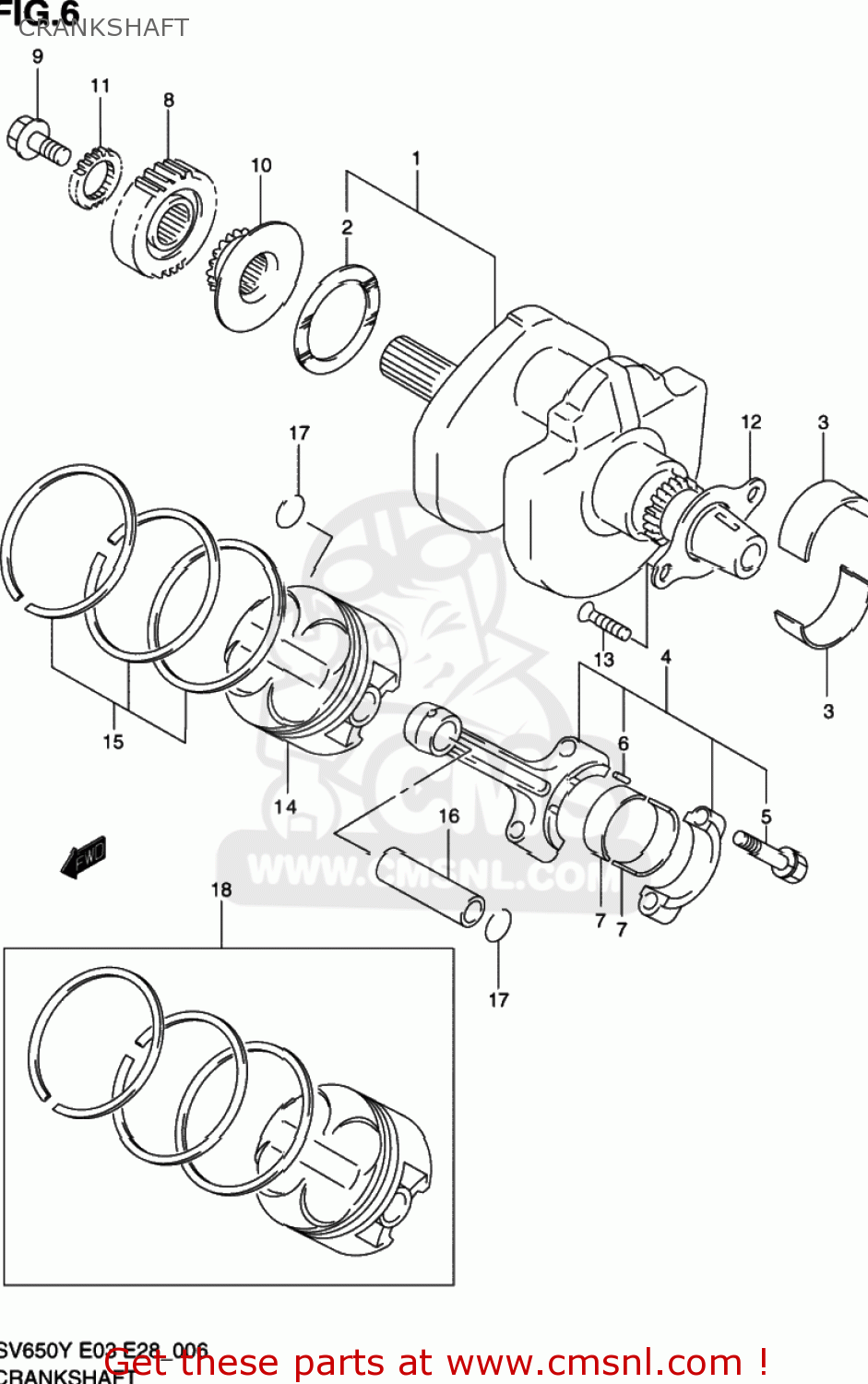

ref
part #
description
quantity
2-1
WASHER,CRANK THRUST(T:1.925)
2-10
WASHER,CRANK THRUST(T:2.15)
2-2
WASHER,CRANK THRUST(T:1.95)
2-3
WASHER,CRANK THRUST(T:1.975)
2-4
WASHER,CRANK THRUST(T:2.0)
2-5
WASHER,CRANK THRUST(T:2.025)
2-6
WASHER,CRANK THRUST(T:2.05)
2-7
WASHER,CRANK THRUST(T:2.075)
2-8
WASHER,CRANK THRUST(T:2.1)
2-9
WASHER,CRANK THRUST(T:2.125)
3-2
BEARING,CRANKSHAFT
4
CONNECTING ROD ASSY
5
BOLT,CONNCTING ROD
6
PIN,CONNECTING ROD
7-1
BEARING,CRANK PIN
7-2
BEARING,CRANK PIN
7-3
BEARING,CRANK PIN
7-4
BEARING,CRANK PIN
8
GEAR,PRIMARY DRIVE
9
BOLT,PRIMARY DRIVE GEAR
10
SPROCKET,CAM CHAIN DRIVE
13
SCREW(6X12)
14
PISTON
15
RING SET,PISTON
16
PIN,PISTON
17
CIRCLIP,PISTON PIN
18-1
PISTON SET(OS:0.5)
18-2
PISTON SET (OS:1.0)
