TAIL LAMP
SV650 2001 (K1) USA (E03)

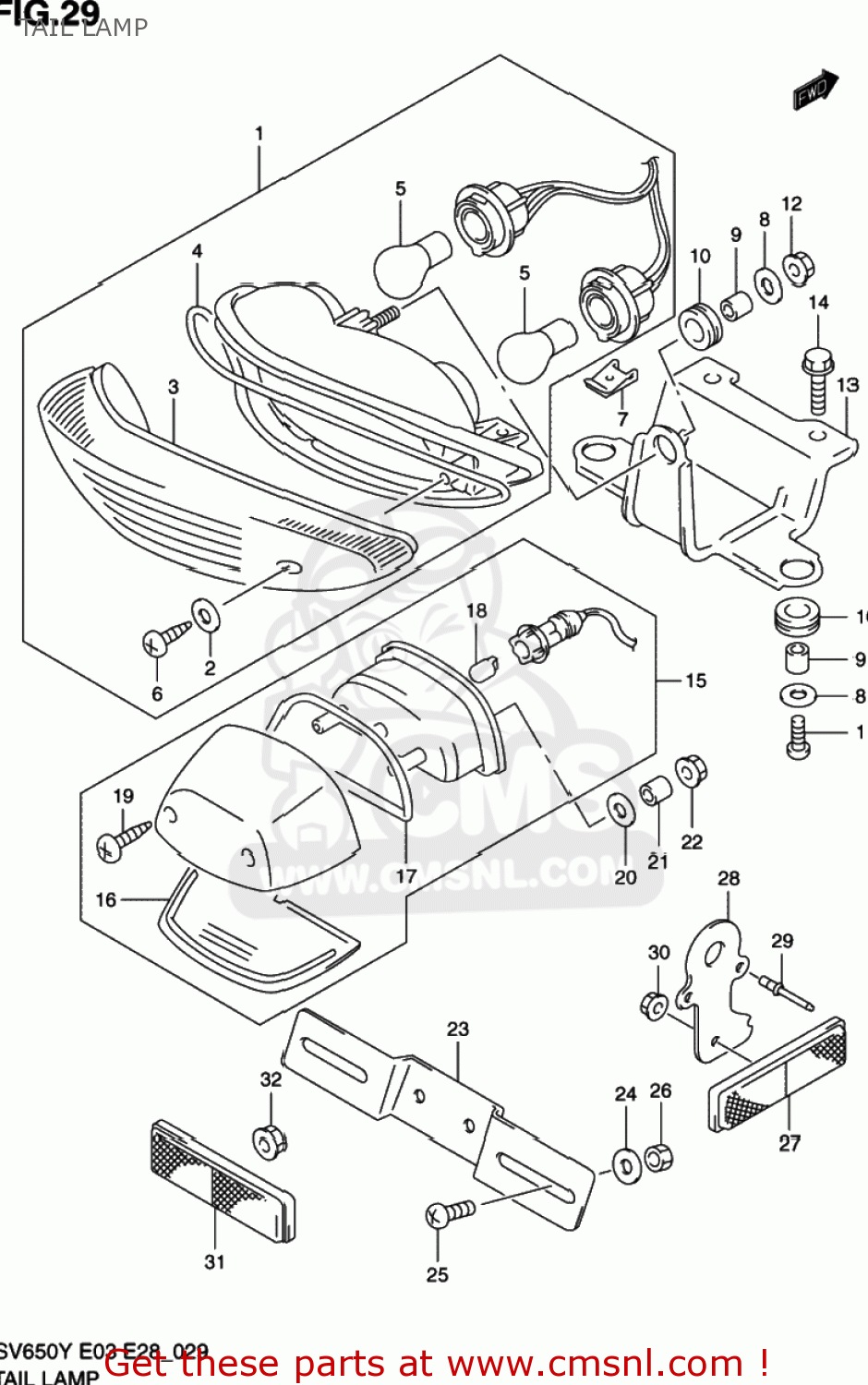

Tail lamp diagram SV650 2001 (K1) USA (E03)
TAIL LAMP SV650 2001 (K1) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3571002F30
ref: 1
LAMP ASSY,RR COMBINATION
€ 0.00
2
3562743010
ref: 2
GASKET (NAS)
€ 2.00
3
3571202F30
ref: 3
LENS
€ 34.50
4
3571302F00
ref: 4
GASKET (NAS)
€ 6.50
5
0947112128
ref: 5
BULB(12V21/5W,BF141-49642A)
€ 6.00
6
0321104207
ref: 6
SCREW
€ 1.50
7
0914805020
ref: 7
NUT
€ 2.00
8
0916006088
ref: 8
WASHER(6.5X20X1.6)
€ 2.00
9
0918006285
ref: 9
SPACER(6.5X10X9)
€ 2.50
10
0932009009
ref: 10
CUSHION
€ 5.00
11
0354105203
ref: 11
03541-0520A
SCREW
€ 2.50
12
0831610063
ref: 12
08316-1006B
NUT
€ 2.50
13
3572619F00
ref: 13
BRACKET,RR COMBINATION LAMP
€ 9.50
14
0155006123
ref: 14
01550-0612A
BOLT
€ 2.50
15
3591002F00
ref: 15
LAMP ASSY,LICENSE
€ 111.50
16
3591202F00
ref: 16
LENS
€ 10.00
17
3591302F00
ref: 17
GASKET (NAS)
€ 4.50
18
0947112081
ref: 18
BULB(12V5W)
€ 1.50
19
0321104163
ref: 19
03211-0416A
SCREW
€ 1.50
20
0916006088
ref: 20
WASHER(6.5X20X1.6)
€ 2.00
21
0918005054
ref: 21
SPACER(5.5X9.5X11.5)
€ 2.00
22
0831610053
ref: 22
08316-1005A
NUT
€ 2.50
23
3592748B30
ref: 23
BRACKET,LICENSE PLATE
€ 15.00
24
0916006088
ref: 24
WASHER(6.5X20X1.6)
€ 2.00
25
0214206123
ref: 25
02142-0612A
SCREW 6X12
€ 2.00
26
0831610063
ref: 26
08316-1006B
NUT
€ 2.50
27
3597007F00
ref: 27
35970-07F01
REFLECTOR ASSEMBLY,REAR
€ 20.50
28
3597519F00
ref: 28
BRACKET,RR SIDE RR
€ 0.00
29
0922904038
ref: 29
RIVET
€ 3.00
30
0831000053
ref: 30
08310-0005A
NUT
€ 2.50
31
3597007F00
ref: 31
35970-07F01
REFLECTOR ASSEMBLY,REAR
€ 20.50
32
0831610053
ref: 32
08316-1005A
NUT
€ 2.50
