REAR CUSHION LEVER
SV650 2001 (K1) USA (E03)

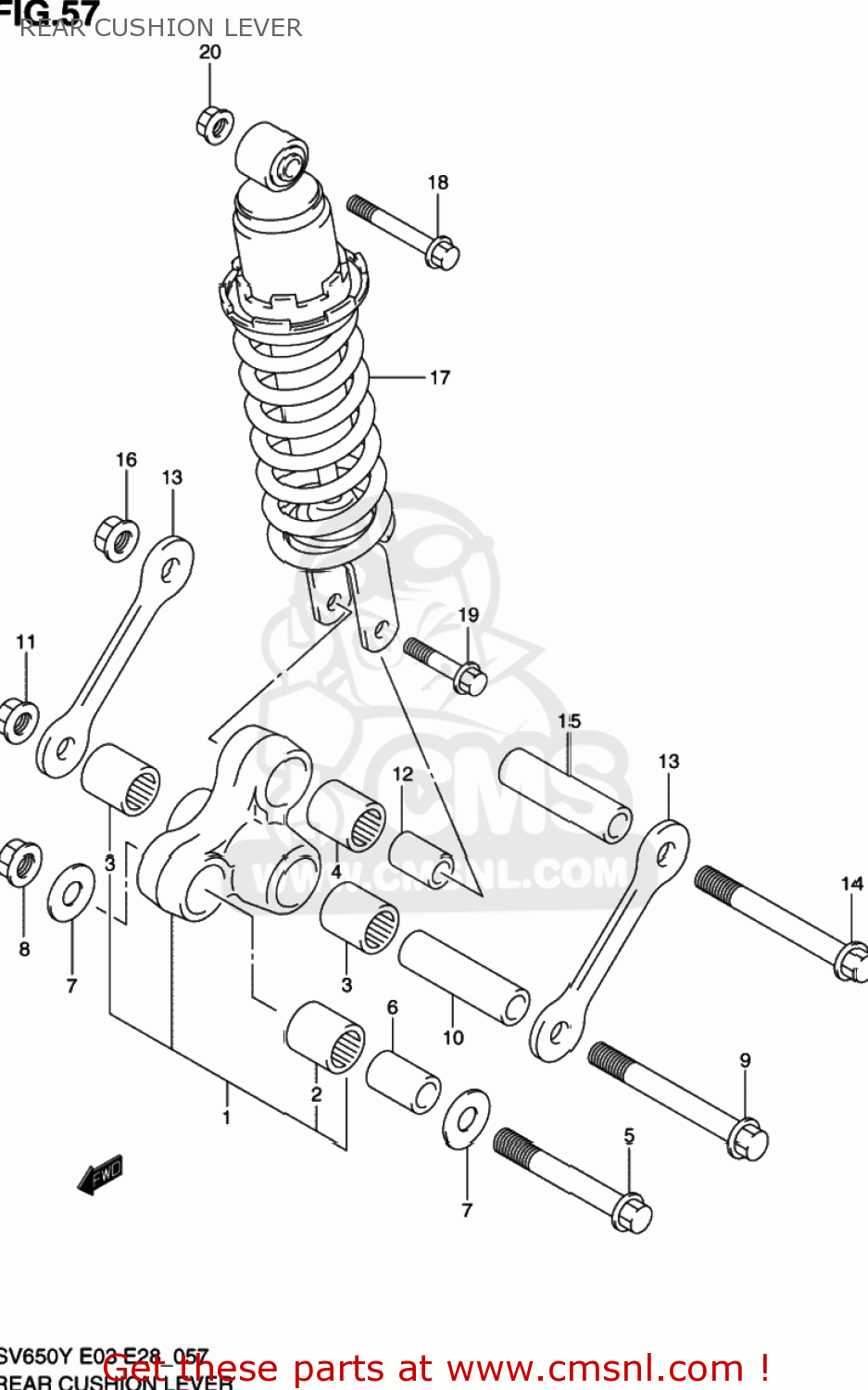

Rear cushion lever diagram SV650 2001 (K1) USA (E03)
REAR CUSHION LEVER SV650 2001 (K1) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6260019880
ref: 1
LEVER SET,RR CUSHION
€ 230.50
2
0926320073
ref: 2
BEARING(20X27X30)
€ 24.50
3
0926320071
ref: 3
BEARING(20X27X23.5)
€ 21.50
4
0926317034
ref: 4
BEARING(17X24X26)
€ 21.50
5
6265819F00
ref: 5
BOLT,RR CUSHION LEVER FR
€ 8.00
6
6268412C00
ref: 6
SPACER,RR CUSHION LEVER FR
€ 12.50
7
0916012037
ref: 7
WASHER(12X34X1)
€ 4.00
8
0831931128
ref: 8
08319-3112A
NUT 12MM
€ 4.00
9
0910312034
ref: 9
BOLT(12X96)
€ 6.00
10
6262619F00
ref: 10
SPACER,RR CUSHION LEVER CTR
€ 26.50
11
0831931128
ref: 11
08319-3112A
NUT 12MM
€ 4.00
12
6268440A10
ref: 12
SPACER,RR CUSHION LEVER
€ 11.50
13
6264120F00
ref: 13
ROD,RR CUSHION
€ 29.50
14
0910312034
ref: 14
BOLT(12X96)
€ 6.00
15
6262619F00
ref: 15
SPACER,RR CUSHION LEVER CTR
€ 26.50
16
0831931128
ref: 16
08319-3112A
NUT 12MM
€ 4.00
17-1
6210020F10163
ref: 17-1
62100-20F11-163
ABSORBER ASSEMBLY,REAR SHOCK
€ 507.00
17-1
6210020F10163
ref: 17-1
62100-20F11-163
ABSORBER ASSEMBLY,REAR SHOCK
€ 507.00
17-2
6210020F00163
ref: 17-2
ABSORBER,RR SH
€ 507.00
17-2
6210020F00163
ref: 17-2
ABSORBER,RR SH
€ 507.00
17-3
6210020F11163
ref: 17-3
ABSORBER ASSY,RR SHOCK
€ 507.00
17-3
6210020F11163
ref: 17-3
ABSORBER ASSY,RR SHOCK
€ 507.00
17-4
6210020F40163
ref: 17-4
ABSORBER ASSY,RR SHOCK
€ 0.00
17-4
6210020F40163
ref: 17-4
ABSORBER ASSY,RR SHOCK
€ 0.00
17-5
6210020F01163
ref: 17-5
ABSORBER ASSY,RR SHOCK
€ 507.00
17-5
6210020F01163
ref: 17-5
ABSORBER ASSY,RR SHOCK
€ 507.00
17-6
6210020F50163
ref: 17-6
ABSORBER ASSY,RR SHOCK
€ 0.00
17-6
6210020F50163
ref: 17-6
ABSORBER ASSY,RR SHOCK
€ 0.00
18
0910310033
ref: 18
BOLT(10X70)
€ 5.00
19
0910310126
ref: 19
BOLT(10X48)
€ 4.50
20
0831931107
ref: 20
NUT
€ 3.00
