EVAPO SISTEM (E33)

SV650 2001 (K1) USA (E03)

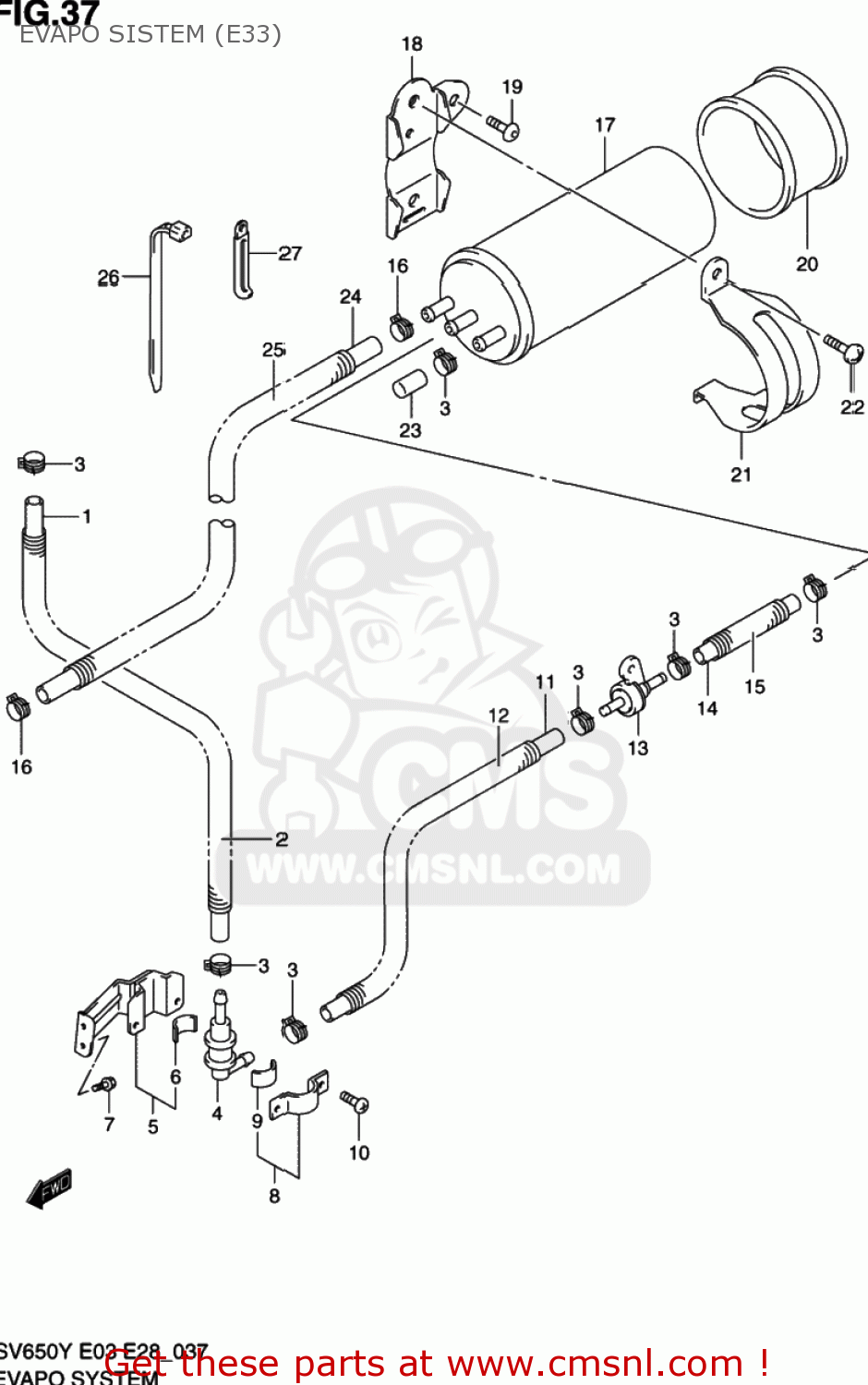

Evapo sistem (e33) diagram SV650 2001 (K1) USA (E03)

EVAPO SISTEM (E33) SV650 2001 (K1) USA (E03)
EVAPO SISTEM (E33) SV650 2001 (K1) USA (E03)
EVAPO SISTEM (E33) SV650 2001 (K1) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
4443519F00
ref: 1
44400-19810
HOSE,TANK & BREATHER VALVE
€ 7.00
2
0935114152600
ref: 2
PROTECTOR(14.5X15.5X600)
0935114152600
€ 9.00
3
0940111413
ref: 3
CLIP
0940111413
€ 2.50
4
4424017C00
ref: 4
VALVE,FUEL TANK BREATHER
4424017C00
€ 40.00
5
4489019F00
ref: 5
PLATE,BREATHER VALVE
€ 0.00
6
4489424A00
ref: 6
CUSHION
4489424A00
€ 1.50
7
0155006123
ref: 7
01550-0612A
BOLT
0155006123
€ 2.50
8
4489224A00
ref: 8
PLATE,FUEL TANK BREATHER NO.2
€ 3.00
9
4489424A00
ref: 9
CUSHION
4489424A00
€ 1.50
10
0214204083
ref: 10
02142-0408B
SCREW
0214204083
€ 1.50
11
4443419F00
ref: 11
44434-29F00
HOSE,VALVE & CANISTER
€ 0.00
12
0935114152600
ref: 12
PROTECTOR(14.5X15.5X600)
0935114152600
€ 9.00
13
4424024F00
ref: 13
VALVE,2 WAY & BREATHER VALVE
4424024F00
€ 44.50
14
0935554116600
ref: 14
HOSE(5.4X11.4X600)
0935554116600
€ 12.00
15
0935114152600
ref: 15
PROTECTOR(14.5X15.5X600)
0935114152600
€ 9.00
16
0940112404
ref: 16
CLIP
0940112404
€ 2.50
17
1721026E00
ref: 17
CANISTER ASSY,CHARCOAL
1721026E00
€ 261.50
18
4488019F00
ref: 18
BRACKET,CANISTER
€ 0.00
19
0913906067
ref: 19
SCREW(6X16)
0913906067
€ 3.00
20
4488326E00
ref: 20
CUSHION,CANISTER
€ 9.00
21
4488219F00
ref: 21
HOLDER,CANISTER
€ 0.00
22
0214206123
ref: 22
02142-0612A
SCREW 6X12
0214206123
€ 2.00
23
0925107003
ref: 23
CAP,OD:11.5
0925107003
€ 2.00
24
0935954112760
ref: 24
HOSE(5.4X11.4X760)
€ 28.00
25
093511415200B
ref: 25
HOSE
€ 0.00
26
0940718402
ref: 26
CLAMP(L:165)
0940718402
€ 2.50
27
0940406434
ref: 27
CLAMP(L:80 T:1.0)
0940406434
€ 3.00
