FUEL TANK (MODEL K7)
SV650S 2005 (K5) USA (E03)

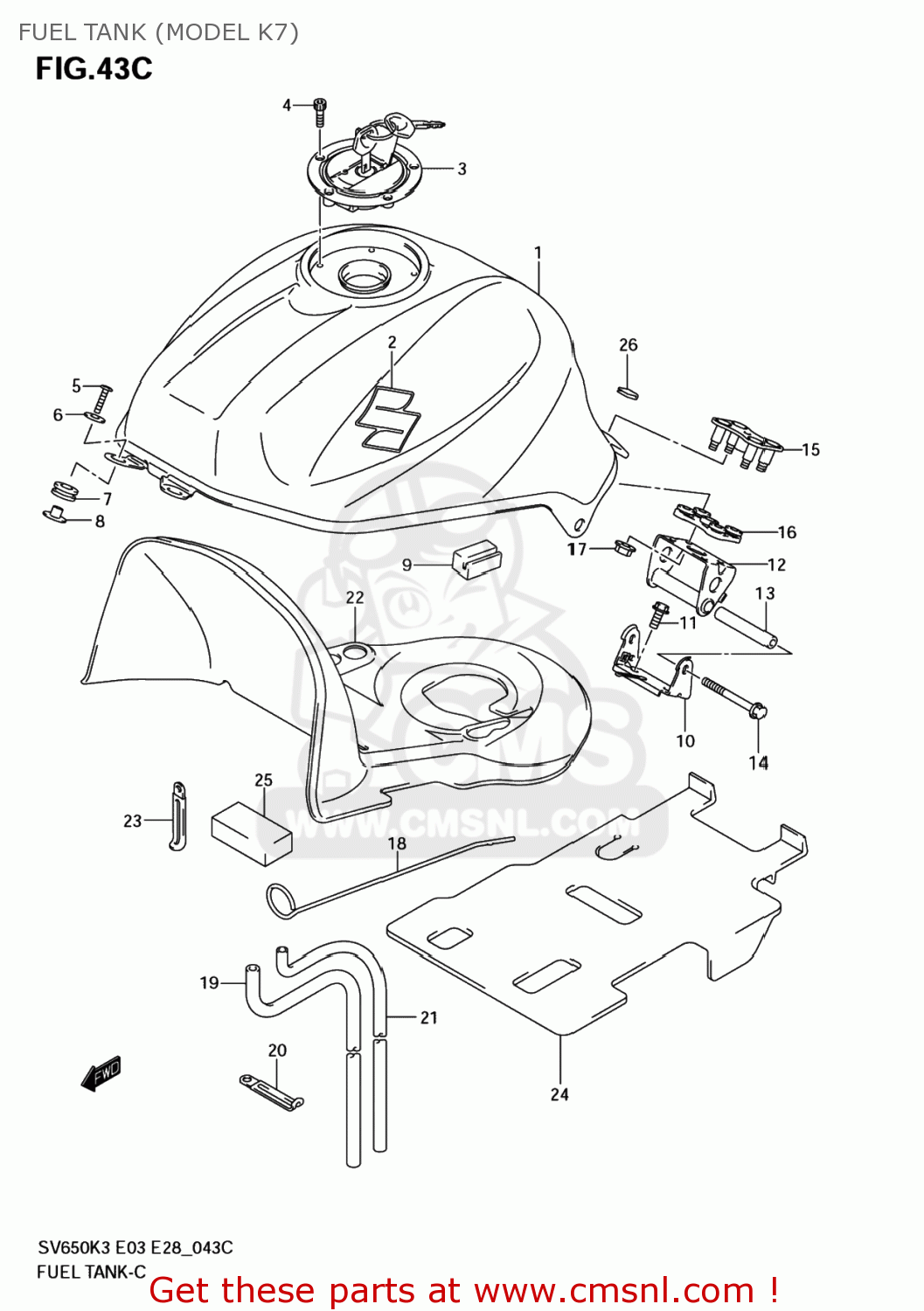

Fuel tank (model k7) diagram SV650S 2005 (K5) USA (E03)
FUEL TANK (MODEL K7) SV650S 2005 (K5) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4410016G60YAY
ref: 1-1
TANK ASSY, FUEL (BLACK)
€ 736.50
1-2
4410016G60YHG
ref: 1-2
TANK ASSY,FUEL(GRAY)
€ 0.00
1-3
4410016G60YHL
ref: 1-3
TANK ASSY,FUEL(RED)
€ 0.00
1-4
4410016G60YKY
ref: 1-4
44100-16G61-YKY
TANK ASSY, FUEL (BLUE)
€ 736.50
1-5
4410016G81YAY
ref: 1-5
TANK ASSY, FUEL (BLACK)
€ 736.50
1-6
4410016G81YHG
ref: 1-6
TANK ASSY,FUEL(GRAY)
€ 747.50
1-7
4410016G81YHL
ref: 1-7
44100-16G82-YHL
TANK ASSY, FUEL (RED)
€ 701.00
1-8
4410016G81YKY
ref: 1-8
TANK ASSY, FUEL (BLUE)
€ 716.50
2
6811118G20
ref: 2
EMBLEM,S
€ 22.50
3-1
4420016850
ref: 3-1
CAP SET,FUEL TANK
€ 155.50
3-2
4420016860
ref: 3-2
CAP SET,FUEL TANK
€ 0.00
4
0910605017
ref: 4
BOLT(5X20)
€ 3.00
5
0913906029
ref: 5
SCREW(6X25)
€ 5.00
6
0916006054
ref: 6
WASHER(6.5X22X1.6)
€ 2.00
7
4451116G00
ref: 7
CUSHION,FUEL TANK FR
€ 4.00
8
4451216G00
ref: 8
SPACER,FUEL TANK FR
€ 6.50
9
4454116G00
ref: 9
CUSHION,FUEL TANK SIDE
€ 9.00
10
4455016G00
ref: 10
BRACKET,FUEL TANK NO.2
€ 13.50
11
0155008203
ref: 11
01550-0820A
BOLT
€ 3.00
12
4453016G00
ref: 12
BRACKET,FUEL TANK NO.1
€ 28.50
13
4456135F00
ref: 13
SPACER,FUEL TANK RR
€ 10.50
14
0910306060
ref: 14
BOLT(6X100)
€ 2.50
15
4457016G00
ref: 15
BRACKET,FUEL TANK RR UP
€ 12.50
16
4454216G00
ref: 16
CUSHION,FUEL TANK RR
€ 11.50
17
0831931063
ref: 17
08319-3106A
NUT
€ 2.50
18
4457416G00
ref: 18
STAY,FUEL TANK
€ 11.50
19
4442317G00
ref: 19
HOSE,WATER DRAIN
€ 13.50
20
0940406433
ref: 20
CLAMP(L:80)
€ 3.00
21
4442416G00
ref: 21
44424-18G00
HOSE,FUEL TANK
€ 13.50
22
4419116G00
ref: 22
SHIELD,FUEL TANK HEAT
€ 179.00
23
0940406433
ref: 23
CLAMP(L:80)
€ 3.00
24-1
4427116G10
ref: 24-1
SHEET,HEAT SHIELD RUBBER
€ 50.50
24-2
4427117G00
ref: 24-2
SHEET,HEAT SHIELD RUBBER
€ 47.50
25
4454516G00
ref: 25
CUSHION,FUEL TANK
€ 6.00
26
6824116G00
ref: 26
MOLDING
€ 4.50
