HANDLEBAR (WITH COWLING)

SV650S 2005 (K5) USA (E03)

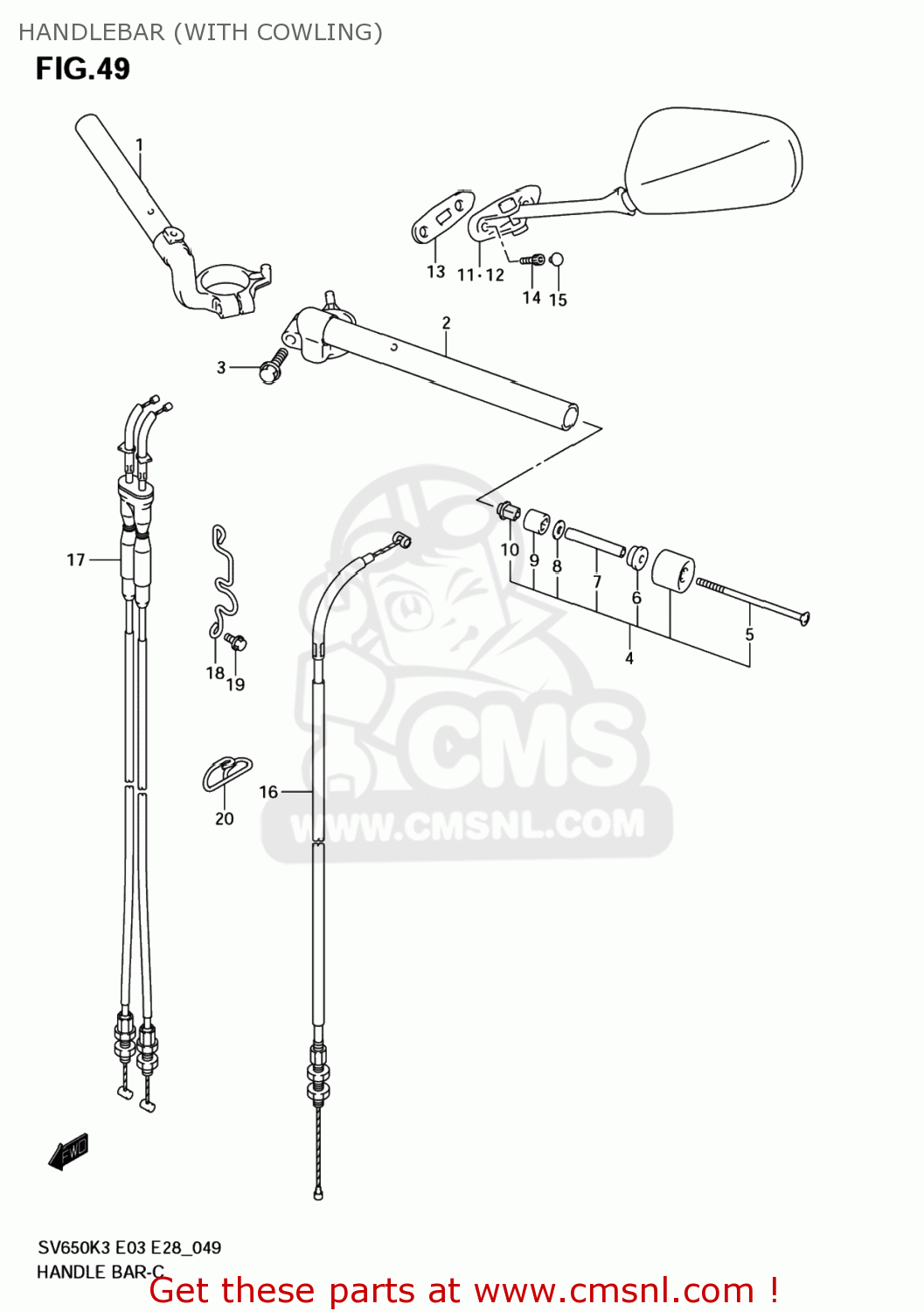

Handlebar (with cowling) diagram SV650S 2005 (K5) USA (E03)

HANDLEBAR (WITH COWLING) SV650S 2005 (K5) USA (E03)

HANDLEBAR (WITH COWLING) SV650S 2005 (K5) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

5611117G00
ref: 1

HANDLEBAR,R

€ 158.00

2

5615117G00
ref: 2

HANDLEBAR,L

€ 158.00

3

5612335F00
ref: 3

BOLT,HANDLEBAR

€ 5.50

4

5620016830
ref: 4
56200-16831

BALANCER SET,H

€ 33.00

5

0212206953
ref: 5
02122-0695B

SCREW,HANDLE B

€ 2.50

6

5627223F00
ref: 6

EXPANDER,HANDLE BALANCER

€ 9.00

7

5627617D00
ref: 7

SPACER,EXPANDER

€ 2.50

8

0916006130
ref: 8

WASHER(6.5X16X1.6)

€ 2.00

9

5627210G00
ref: 9

EXPANDER,HANDLE BALANCER

€ 3.00

10

5627310G00
ref: 10
56273-10G10

NUT,HANDLE BAL

€ 6.50

11-1

5650016G00
ref: 11-1
56500-16G10

MIRROR ASSY,RE

€ 136.00

11-2

5650016G10
ref: 11-2

MIRROR ASSY,RR VIEW,R

€ 136.00

12-1

5660016G00
ref: 12-1
56600-16G10

MIRROR ASSY,RE

€ 145.50

12-2

5660016G10
ref: 12-2

MIRROR ASSY,RR VIEW,L

€ 145.50

13

9457624F00
ref: 13

CUSHION,RR VIEW MIRRORR

€ 5.00

14

0713006163
ref: 14
07130-0616B

BOLT,OIL FILLE

€ 3.00

15

0925005009
ref: 15

CAP(OD:10)

€ 2.50

16

5820017G10
ref: 16

CABLE ASSY,CLUTCH

€ 41.50

17

5830016G10
ref: 17

CABLE ASSY,THROTTLE

€ 69.00

18-1

5862116GA0
ref: 18-1

GUIDE,CABLE L

€ 15.50

18-2

5862116GC0
ref: 18-2

GUIDE,CABLE L

€ 15.50

19

0155006123
ref: 19
01550-0612A

BOLT

€ 2.50

20

5862116GB0
ref: 20

GUIDE,THROTTLE CABLE

€ 11.50
