REAR CALIPER (SV650 K3/SK3/K4/SK4/K5/SK5/K6/SK6/K7/SK7)

SV650S 2005 (K5) USA (E03)

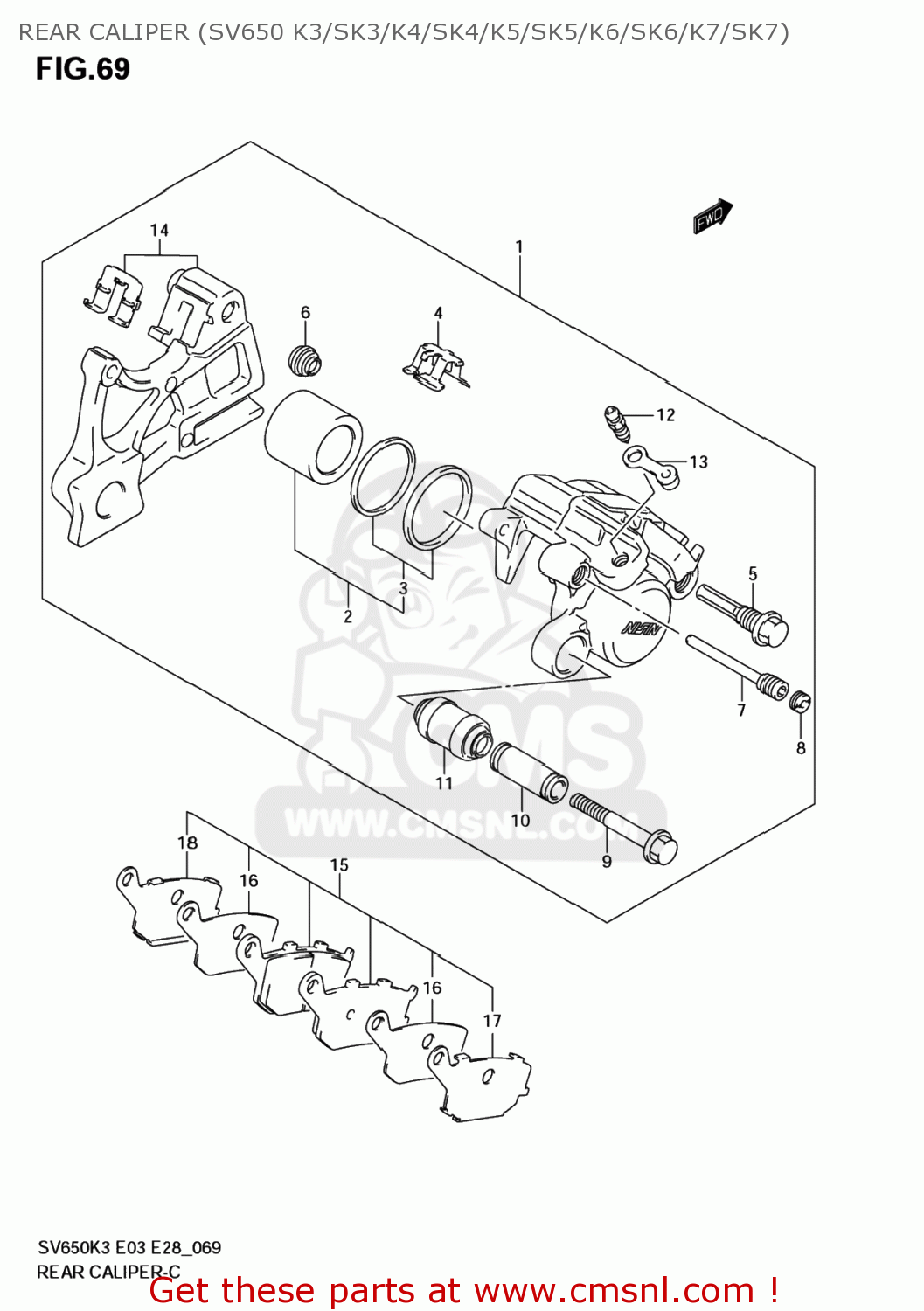

Rear caliper (sv650 k3/sk3/k4/sk4/k5/sk5/k6/sk6/k7/sk7) diagram SV650S 2005 (K5) USA (E03)

REAR CALIPER (SV650 K3/SK3/K4/SK4/K5/SK5/K6/SK6/K7/SK7) SV650S 2005 (K5) USA (E03)

REAR CALIPER (SV650 K3/SK3/K4/SK4/K5/SK5/K6/SK6/K7/SK7) SV650S 2005 (K5) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

6910017G00999
ref: 1
69100-17G01-999

CALIPER ASSY, REAR

€ 235.00

2

6910004810
ref: 2

PISTON SET

€ 65.50

3

6910004820
ref: 3

SEAL SET,PISTON

€ 12.50

4

6911506G00
ref: 4

SPRING,PAD

€ 7.50

5

6910504F00
ref: 5

BOLT

€ 11.50

6

5930314500
ref: 6

BOOT

€ 5.50

7

6914140F00
ref: 7

PIN,PAD

€ 17.50

8

5914621E10
ref: 8

PLUG,PIN

€ 6.50

9

6918204F00
ref: 9

BOLT

€ 7.50

10

6918504F00
ref: 10

SLEEVE

€ 12.50

11

6918604F00
ref: 11

BOOT,SLEEVE

€ 11.00

12

5912101A00
ref: 12

BLEEDER

€ 8.50

13

5912201A00
ref: 13

CAP,BLEEDER

€ 4.50

14

6915017G00
ref: 14

BRACKET

€ 131.50

15

6910016851
ref: 15
69100-16852

PAD & RETAINER

€ 62.00

16

6913206G00
ref: 16

INSULATOR

€ 13.50

17

6913316G00
ref: 17

RETAINER

€ 10.50

18

6913416G00
ref: 18

RETAINER

€ 10.50
