OIL COOLER

SV650S 2005 (K5) USA (E03)

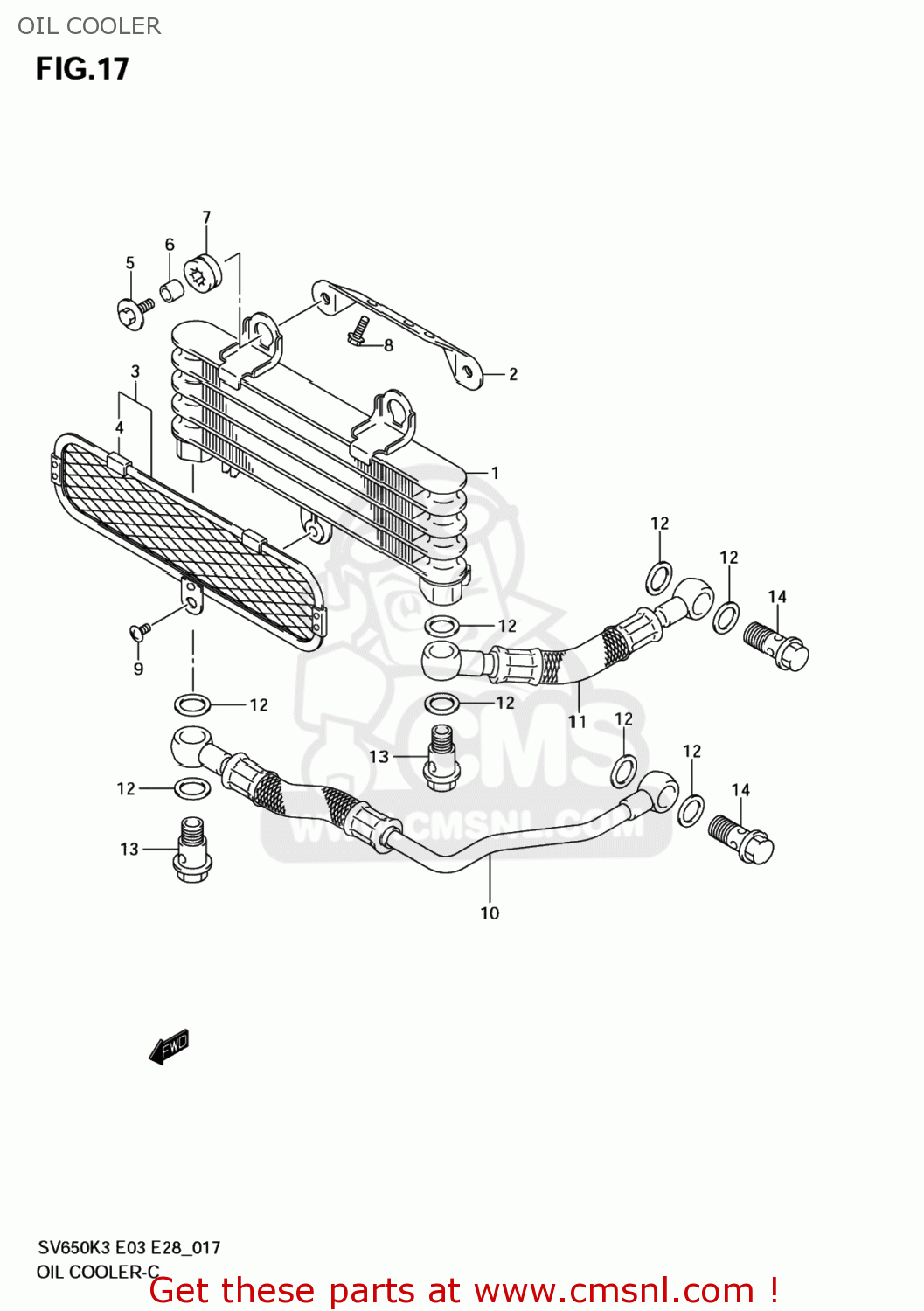

Oil cooler diagram SV650S 2005 (K5) USA (E03)

OIL COOLER SV650S 2005 (K5) USA (E03)

OIL COOLER SV650S 2005 (K5) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

1660017G00
ref: 1-1

COOLER ASSY,OIL

€ 539.00

1-2

1660027G00
ref: 1-2

COOLER ASSY,OIL

€ 760.00

2-1

1662017G00
ref: 2-1

BRACKET,OIL COOLER

€ 5.50

2-2

1662027G00
ref: 2-2

BRACKET,OIL COOLER

€ 8.50

3-1

1665017G00
ref: 3-1

GUARD,OIL COOLER

€ 29.00

3-2

1665027G01
ref: 3-2

GUARD,OIL COOLER

€ 33.00

4

1776509F00
ref: 4

PROTECTOR,CTR

€ 2.50

5

0911606167
ref: 5

BOLT(6X20)

€ 2.00

6

0918006310
ref: 6

SPACER(6.5X10X10)

€ 2.00

7

0932009009
ref: 7

CUSHION

€ 5.00

8

0155006163
ref: 8
01550-0616A

BOLT

€ 2.50

9

0214205103
ref: 9
02142-0510B

SCREW

€ 2.50

10

1646017G00
ref: 10

HOSE,OIL COOLER,R

€ 132.50

11

1647017G00
ref: 11

HOSE,OIL COOLER,L

€ 103.50

12-1

0916814011
ref: 12-1

GASKET(14X20X1.5) (NAS)

€ 2.00

12-2

0916814015
ref: 12-2

GASKET(14X20X1.5) (NAS)

€ 1.50

13

0936012012
ref: 13
09360-12012-A05

BOLT UNION

€ 8.00

14

0936014012
ref: 14

BOLT UNION

€ 10.00
