REAR WHEEL (SV650AK7/SAK7)

SV650S 2005 (K5) USA (E03)

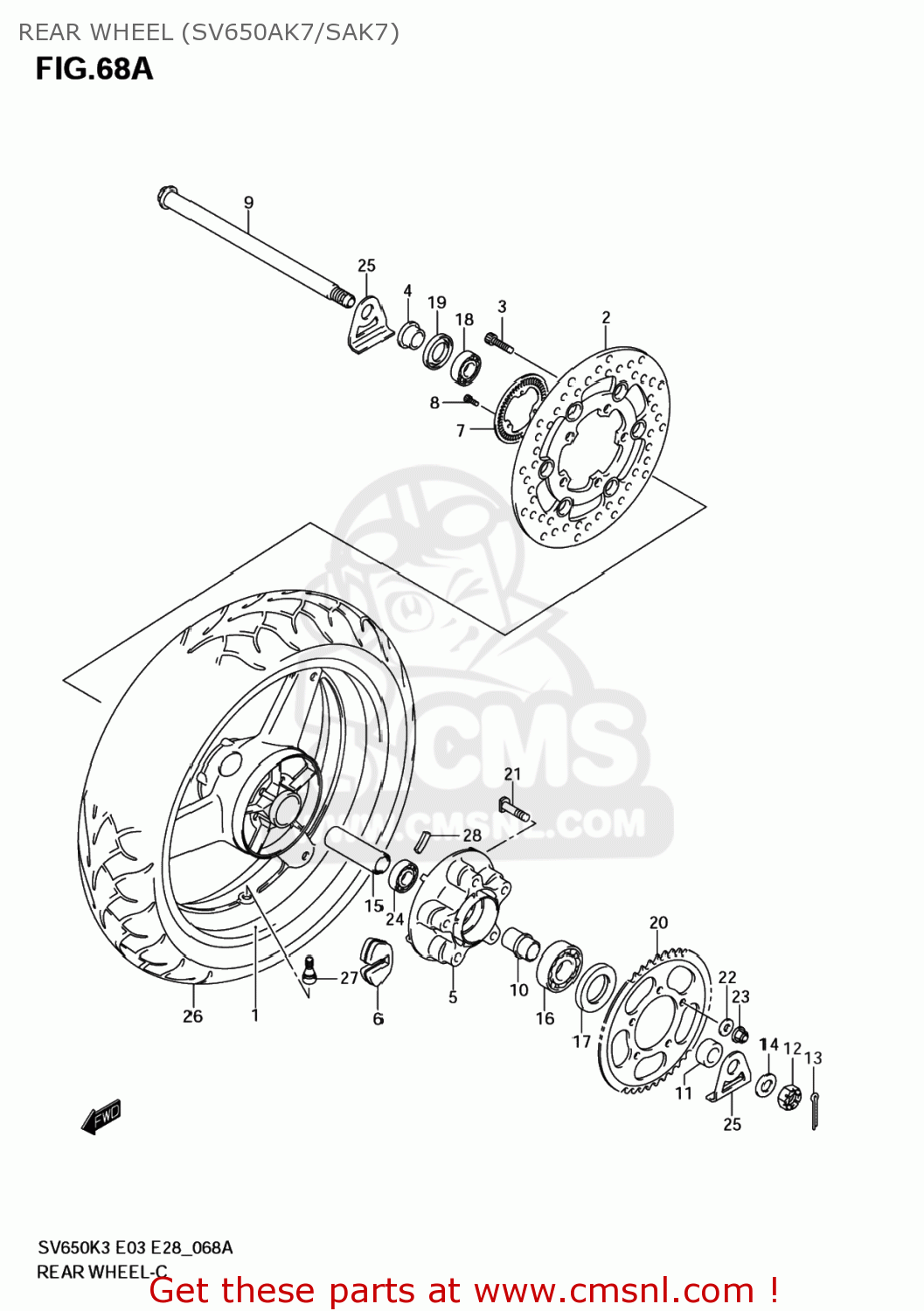

Rear wheel (sv650ak7/sak7) diagram SV650S 2005 (K5) USA (E03)

REAR WHEEL (SV650AK7/SAK7) SV650S 2005 (K5) USA (E03)

REAR WHEEL (SV650AK7/SAK7) SV650S 2005 (K5) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

6411108F40019
ref: 1

WHEEL,RR(17M/CXMT4.50)

€ 1,059.00

1

6411108F40019
ref: 1

WHEEL,RR(17M/CXMT4.50)

€ 1,059.00

2

6921138G00
ref: 2

DISC,RR BRAKE

€ 129.50

3

0910608148
ref: 3

BOLT(8X33)

€ 6.00

4

6474122D00
ref: 4

SPACER,RR AXLE,R

€ 9.50

5

6461119F00
ref: 5

DRUM,RR SPROCKET MOUNTING

€ 140.00

6

6465127A01
ref: 6

ABSORBER,RR HUB SHOCK

€ 6.00

7

6416217G00
ref: 7

RING,SPEED SENSOR RR(50T)

€ 14.00

8

0713005127
ref: 8

BOLT

€ 2.50

9

6471117G10
ref: 9

AXLE,RR

€ 113.50

10

6473327A00
ref: 10

RETAINER,RR HUB BEARING

€ 18.50

11

6475126E00
ref: 11

SPACER,RR AXLE,L

€ 20.50

12

0831440187
ref: 12

NUT

€ 6.00

13

0411140408
ref: 13
04111-4040A

PIN, COTTER

€ 2.00

14

0916018030
ref: 14

WASHER(18.5X28X2.6)

€ 2.50

15

0918020062
ref: 15

SPACER(20.5X28X88)

€ 11.50

16

0926220042
ref: 16

BEARING(20X47X14)

€ 21.00

17

0928528001
ref: 17

SEAL,OIL(28X47X7)

€ 11.50

18

0926225073
ref: 18

BEARING(25X62X17)

€ 21.50

19

0928535001
ref: 19

SEAL,OIL(35X62X8)

€ 9.00

20

6451132C00
ref: 20

SPROCKET,RR(NT:45-525)

€ 95.50

21

0911910043
ref: 21

BOLT(10X47)

€ 4.50

22

0916010506
ref: 22
09160-10039

WASHER (10.5X22X2.3)

€ 2.50

23

0831931107
ref: 23

NUT

€ 3.00

24

0812362047
ref: 24

BEARING

€ 17.00

25

6144517G00
ref: 25

WASHER,CHAIN ADJUSTER

€ 9.00

26

6511017G00
ref: 26

TIRE,RR(160/60 ZR17M/C 69W)

€ 190.00

26

6511017G00
ref: 26

TIRE,RR(160/60 ZR17M/C 69W)

€ 190.00

27

4313024A00
ref: 27

VALVE ASSY,WHEEL RIM(TR412)

€ 7.00

28-1

5541139G00
ref: 28-1

BALANCER,WHEEL(10G)

€ 5.50

28-2

5541239G00
ref: 28-2

BALANCER,WHEEL(20G)

€ 5.50

28-3

5541339G00
ref: 28-3

BALANCER,WHEEL(30G)

€ 6.00
