COWLING INSTALLATION PARTS (SV650S/SA)

SV650SF 2009 (K9) USA (E03)

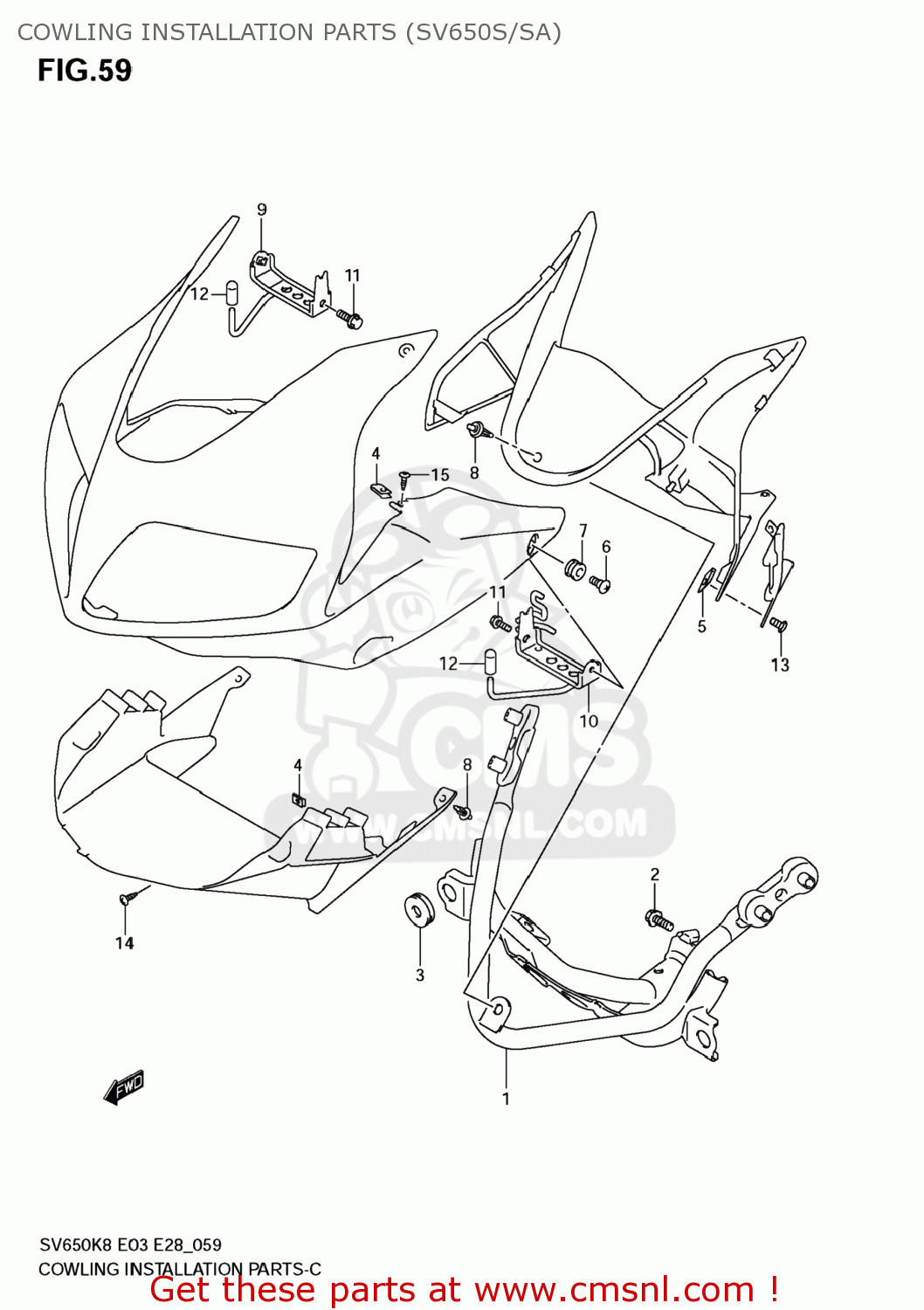

Cowling installation parts (sv650s/sa) diagram SV650SF 2009 (K9) USA (E03)

COWLING INSTALLATION PARTS (SV650S/SA) SV650SF 2009 (K9) USA (E03)
COWLING INSTALLATION PARTS (SV650S/SA) SV650SF 2009 (K9) USA (E03)
COWLING INSTALLATION PARTS (SV650S/SA) SV650SF 2009 (K9) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
9451016G01
ref: 1
BRACE,COWLING
9451016G01
€ 478.00
2
015500820B
ref: 2
BOLT
015500820B
€ 3.00
3
0932008028
ref: 3
CUSHION
0932008028
€ 2.50
4
9448424F00
ref: 4
NUT,COWL
9448424F00
€ 4.00
5
0914805038
ref: 5
NUT
0914805038
€ 2.50
6
0913906126
ref: 6
SCREW(6X20)
0913906126
€ 4.00
7
0932009016
ref: 7
CUSHION
0932009016
€ 2.50
8
09409083085ES
ref: 8
CLIP(BLACK)
09409083085ES
€ 2.00
9
9453016G00
ref: 9
BRACKET,COWLING FITTING,R
9453016G00
€ 16.50
10
9454016G10
ref: 10
BRACKET,COWLING FITTING,L
9454016G10
€ 31.00
11
015500612B
ref: 11
BOLT
015500612B
€ 2.50
12
0925104003
ref: 12
CAP
€ 2.00
13
0913205053
ref: 13
SCREW(5X16)
0913205053
€ 2.50
14
032410512B
ref: 14
SCREW
032410512B
€ 1.50
15
0913905064
ref: 15
SCREW(5X13)
0913905064
€ 2.50
