SEAT

SV650SF 2009 (K9) USA (E03)

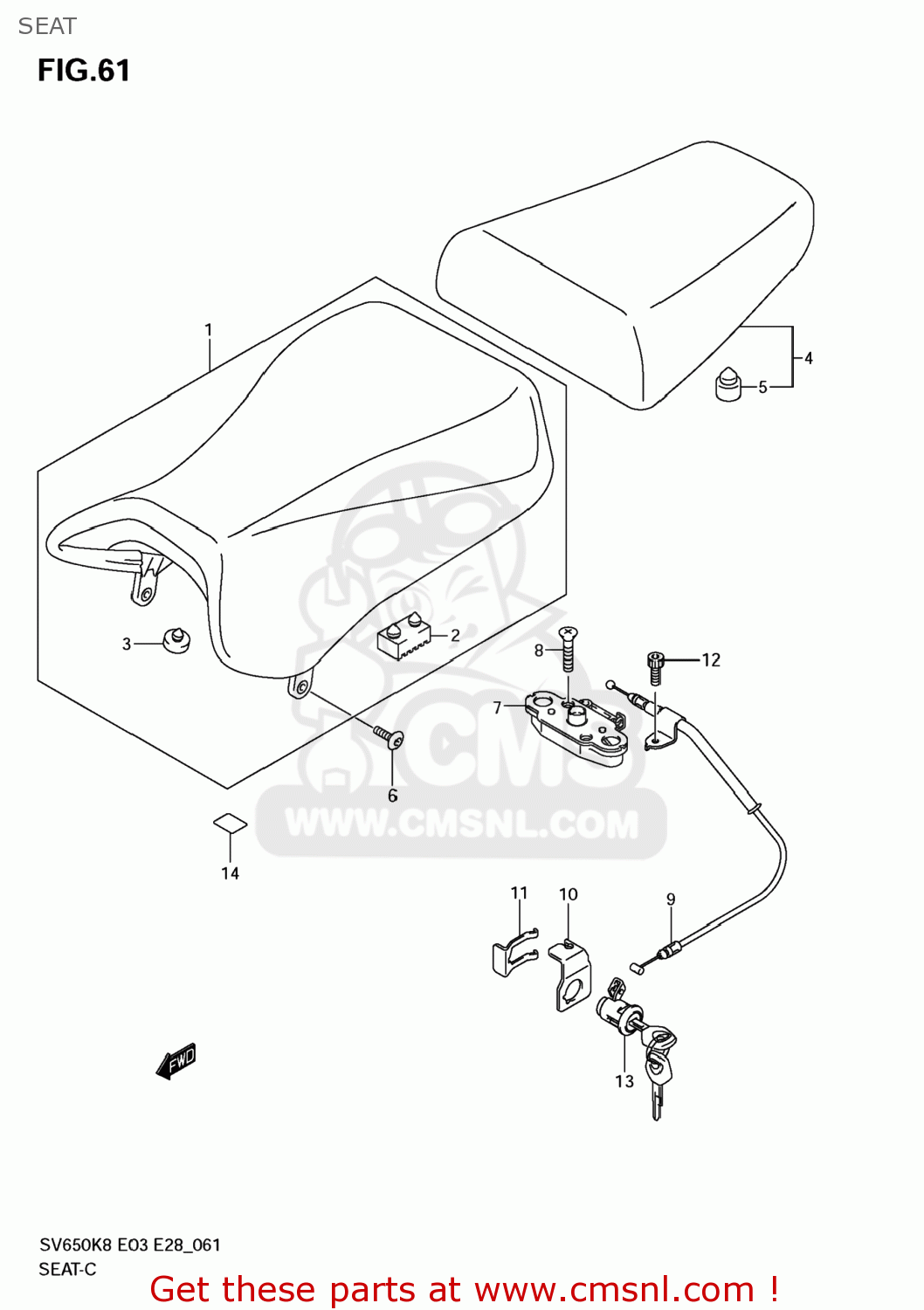

Seat diagram SV650SF 2009 (K9) USA (E03)

SEAT SV650SF 2009 (K9) USA (E03)

SEAT SV650SF 2009 (K9) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

4510016G41V3H
ref: 1-1

SEAT ASSY

€ 167.50

1-2

4510016G41W05
ref: 1-2

SEAT ASSY(BLACK)

€ 181.50

1-2

4510016G41W05
ref: 1-2

SEAT ASSY(BLACK)

€ 181.50

1-3

4510016GA0V3H
ref: 1-3

SEAT ASSY

€ 139.00

1-4

4510016GA0W05
ref: 1-4

SEAT ASSY(BLACK)

€ 181.50

1-4

4510016GA0W05
ref: 1-4

SEAT ASSY(BLACK)

€ 181.50

2

4514942F00
ref: 2

CUSHION

€ 4.50

3

4514816700
ref: 3
09321-10002

CUSHION,FR

€ 2.00

4-1

4530016G00V3H
ref: 4-1

SEAT ASSY,PILLION

€ 185.00

4-2

4530016G00W05
ref: 4-2

SEAT ASSY,PILLION

€ 185.50

5

0932110019
ref: 5

CUSHION

€ 4.50

6

0910606064
ref: 6

BOLT(6X18)

€ 6.00

7

4522020A01
ref: 7
45220-47H00

BRACKET,SEAT SUPPORT,RIGHT

€ 79.50

8

021220635B
ref: 8

SCREW

€ 2.00

9

4528016G00
ref: 9

CABLE,SEAT LOCK

€ 29.00

10

4528814F00
ref: 10

GUIDE,SEAT LOCK CABLE

€ 3.00

11

4528911F00
ref: 11

PLATE,SEAT LOCK ASSY

€ 3.00

12

071300616B
ref: 12

BOLT

€ 3.00

13

9570014810
ref: 13

LOCK SET,SEAT

€ 75.50

14

4551716G20
ref: 14

TAPE,FUEL TANK

€ 6.50
