FRONT FENDER (MODEL K9)

SV650SF 2009 (K9) USA (E03)

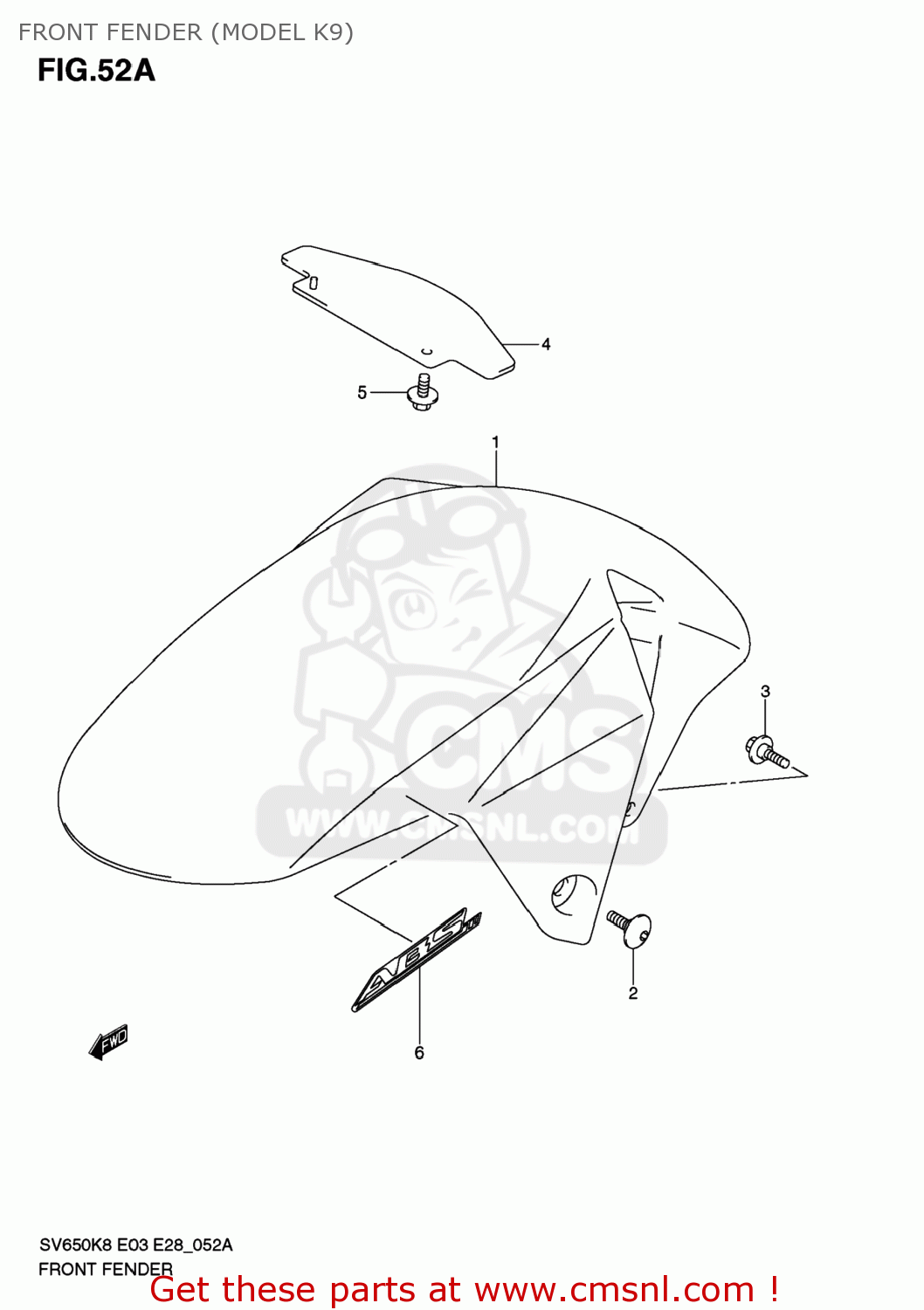

Front fender (model k9) diagram SV650SF 2009 (K9) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

5311116G11YAY
ref: 1-1

FENDER,FR

€ 150.50

1-2

5311116G11YHG
ref: 1-2

FENDER,FR

€ 151.50

1-3

5311116G11YSF
ref: 1-3

FENDER,FR

€ 151.50

1-4

5311116G01YAY
ref: 1-4

FENDER,FR

€ 150.50

1-5

5311116G01YHG
ref: 1-5

FENDER,FR

€ 151.50

1-6

5311116G01YSF
ref: 1-6

FENDER,FR

€ 134.00

0913906121
ref: 2

SCREW(6X16)

€ 5.50

0912286005
ref: 3

SCREW(6X16)

€ 6.00

5318216G00
ref: 4

FENDER,FR UPPER

€ 9.50

0911106096
ref: 5

BOLT(6X12)

€ 3.00

6-1

6815117G00Y4P
ref: 6-1

EMBLEM,ABS

€ 11.50

6-2

6815117G00YAD
ref: 6-2

EMBLEM,ABS

€ 15.50
