REAR MASTER CYLINDER (SV650K8/SK8/K9/SK9)

SV650SF 2009 (K9) USA (E03)

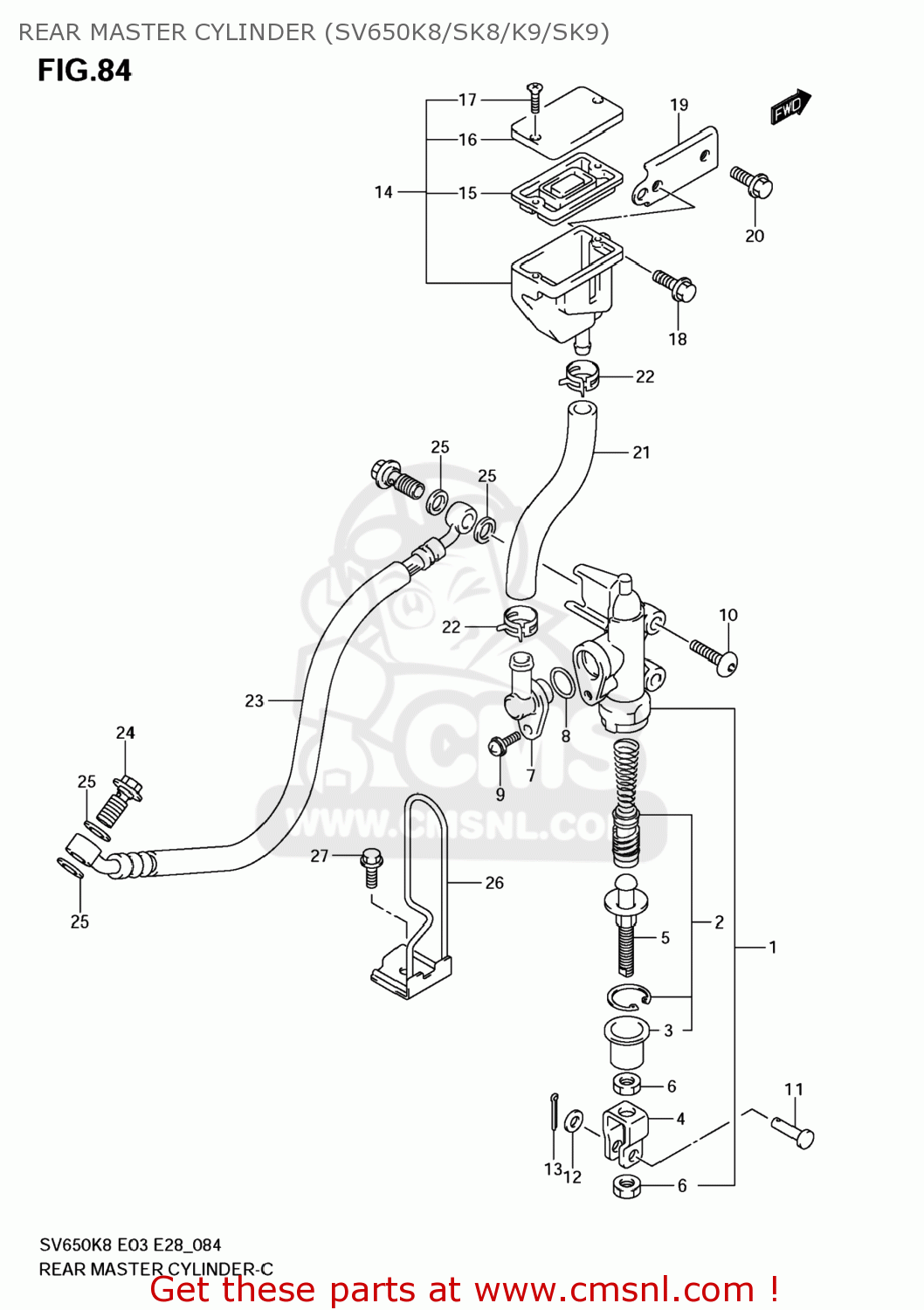

Rear master cylinder (sv650k8/sk8/k9/sk9) diagram SV650SF 2009 (K9) USA (E03)

REAR MASTER CYLINDER (SV650K8/SK8/K9/SK9) SV650SF 2009 (K9) USA (E03)
REAR MASTER CYLINDER (SV650K8/SK8/K9/SK9) SV650SF 2009 (K9) USA (E03)
REAR MASTER CYLINDER (SV650K8/SK8/K9/SK9) SV650SF 2009 (K9) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
6960016G00
ref: 1
CYLINDER ASSY,RR MASTER
6960016G00
€ 254.50
2
6960034820
ref: 2
PISTON/CUP SET
6960034820
€ 37.00
3
6969100A00
ref: 3
BOOT
6969100A00
€ 3.50
4
6969227A30
ref: 4
YOKE
6969227A30
€ 12.50
5
6967048B00
ref: 5
ROD,PUSH
6967048B00
€ 20.50
6
6969305A00
ref: 6
NUT
6969305A00
€ 1.50
7
6967205A00
ref: 7
CONNECTOR
6967205A00
€ 4.50
8
6968634200
ref: 8
O RING
6968634200
€ 3.50
9
021127412A
ref: 9
SCREW
021127412A
€ 2.50
10
0913906028
ref: 10
SCREW(6X20)
0913906028
€ 3.50
11
0920006068
ref: 11
PIN(6X18.2)
0920006068
€ 5.00
12
083220106B
ref: 12
WASHER
083220106B
€ 2.00
13
041112015A
ref: 13
PIN
041112015A
€ 1.50
14
6974001D02
ref: 14
TANK ASSY,RR RESERVOIR
6974001D02
€ 58.00
15
5966704700
ref: 15
DIAPHRAGM
5966704700
€ 8.00
16
5966905D00
ref: 16
CAP
5966905D00
€ 13.50
17
6968904A00
ref: 17
SCREW
6968904A00
€ 2.00
18
0910306222
ref: 18
BOLT(6X12)
0910306222
€ 2.00
19
6975016G10
ref: 19
BRACKET,RR RESERVOIR TANK
€ 14.00
20
015500616A
ref: 20
BOLT
015500616A
€ 2.50
21
6973116G20
ref: 21
HOSE,RR RESERVOIR TANK
6973116G20
€ 17.00
22
0940113417
ref: 22
CLIP
0940113417
€ 2.50
23-1
6948016G30
ref: 23-1
HOSE,RR BRAKE
6948016G30
€ 63.00
23-2
6948017G10
ref: 23-2
HOSE,RR BRAKE
€ 37.50
24
0936010062
ref: 24
BOLT UNION
0936010062
€ 5.00
25
0916110009
ref: 25
WASHER(10X15X1.5)
0916110009
€ 2.00
26
6926016G00
ref: 26
GUIDE,RR BRAKE HOSE NO.1
€ 18.00
27
015470616B
ref: 27
BOLT
015470616B
€ 2.50
