SEAT TAIL COVER (SV650SK8/SAK8)
SV650SF 2009 (K9) USA (E03)

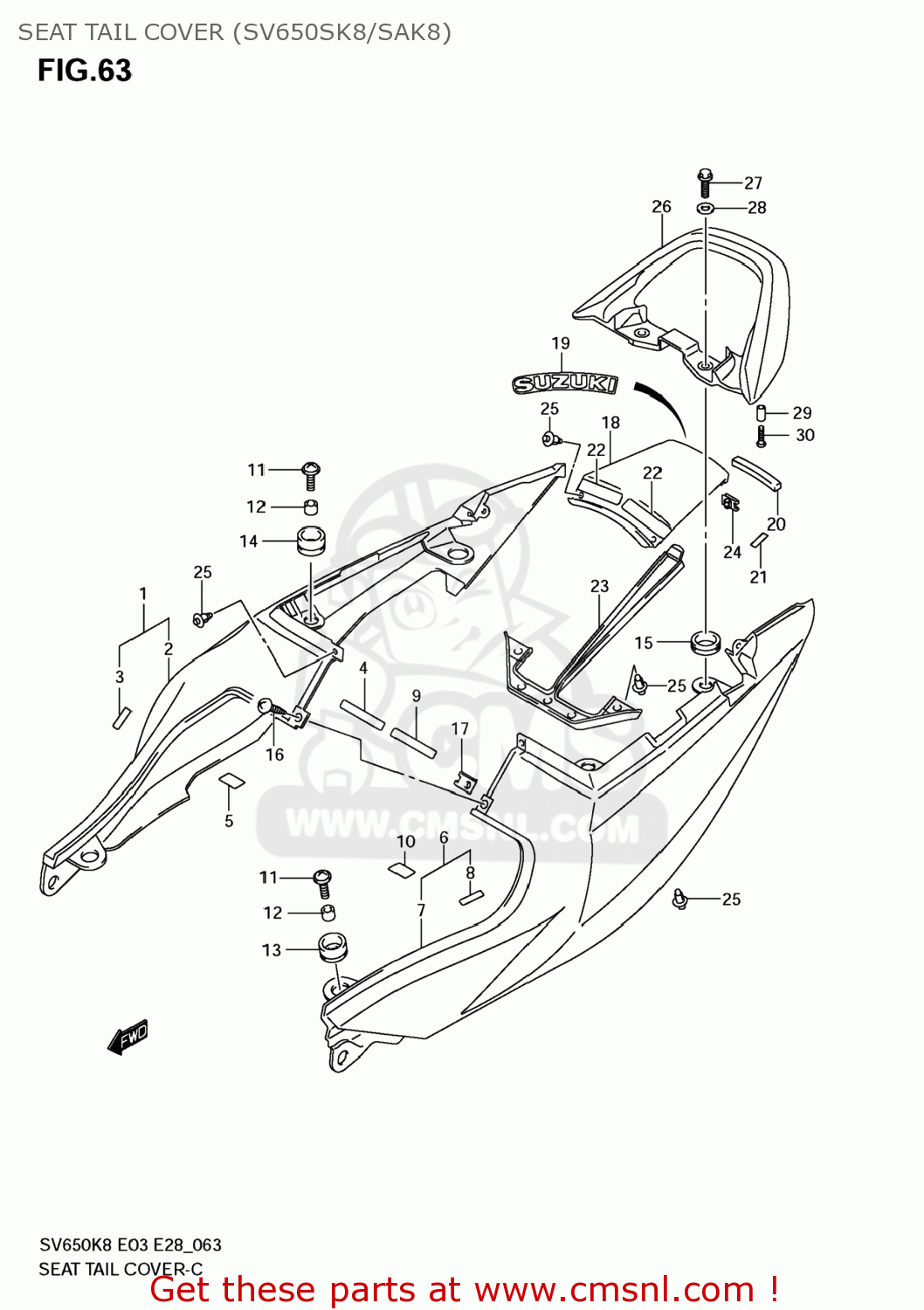

Seat tail cover (sv650sk8/sak8) diagram SV650SF 2009 (K9) USA (E03)
SEAT TAIL COVER (SV650SK8/SAK8) SV650SF 2009 (K9) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4550116G21YKZ
ref: 1-1
COVER,SEAT TAIL,R(BLUE)
€ 115.00
1-2
4550116G21YLF
ref: 1-2
COVER,SEAT TAIL,R(GLAY)
€ 101.50
1-3
4550116G21YPA
ref: 1-3
COVER,SEAT TAIL,R(WHITE)
€ 101.50
1-4
4550116G21YAY
ref: 1-4
COVER,SEAT TAIL,R(BLACK)
€ 146.50
2-1
4551116G02YKZ
ref: 2-1
COVER,SEAT TAIL,R
€ 58.00
2-2
4551116G02YLF
ref: 2-2
COVER,SEAT TAIL,R(GLAY)
€ 58.00
2-3
4551116G02YPA
ref: 2-3
COVER,SEAT TAIL,R(WHITE)
€ 91.00
2-4
4551116G02YAY
ref: 2-4
COVER,SEAT TAIL,R
€ 96.50
3
4551642F00
ref: 3
TAPE,COVER
€ 7.00
4
4551716G10
ref: 4
TAPE,SEAT TAIL COVER NO.2 FR
€ 8.50
5
4716110D00
ref: 5
PROTECTOR,FRAME COVER
€ 3.50
6-1
4550216G21YKZ
ref: 6-1
COVER,SEAT TAIL,L(BLUE)
€ 115.00
6-2
4550216G21YLF
ref: 6-2
COVER,SEAT TAIL,L(GLAY)
€ 115.00
6-3
4550216G21YPA
ref: 6-3
COVER,SEAT TAIL,L(WHITE)
€ 115.00
6-4
4550216G21YAY
ref: 6-4
COVER,SEAT TAIL,L(BLACK)
€ 146.50
7-1
4551216G02YKZ
ref: 7-1
COVER,SEAT TAIL,L
€ 99.00
7-2
4551216G02YLF
ref: 7-2
COVER,SEAT TAIL,L(GLAY)
€ 146.50
7-3
4551216G02YPA
ref: 7-3
COVER,SEAT TAIL,L(WHITE)
€ 99.00
7-4
4551216G02YAY
ref: 7-4
COVER,SEAT TAIL,L
€ 96.50
8
4551642F00
ref: 8
TAPE,COVER
€ 7.00
9
4551716G10
ref: 9
TAPE,SEAT TAIL COVER NO.2 FR
€ 8.50
10
4716110D00
ref: 10
PROTECTOR,FRAME COVER
€ 3.50
11
0913606082
ref: 11
SCREW(6X25)
€ 3.00
12
0918006286
ref: 12
SPACER(6.5X10X9.4)
€ 2.50
13
0932010052
ref: 13
CUSHION
€ 4.50
14
4711516G00
ref: 14
CUSHION,SEAT TAIL COVER CTR
€ 3.00
15
0932020010
ref: 15
CUSHION
€ 2.50
16
032411512B
ref: 16
SCREW
€ 2.50
17
0914805038
ref: 17
NUT
€ 2.50
18-1
4550316G00YKZ
ref: 18-1
COVER,SEAT TAIL CTR
€ 68.00
18-1
4550316G00YKZ
ref: 18-1
COVER,SEAT TAIL CTR
€ 68.00
18-2
4550316G00YLF
ref: 18-2
COVER,SEAT TAIL CTR
€ 75.50
18-2
4550316G00YLF
ref: 18-2
COVER,SEAT TAIL CTR
€ 75.50
18-3
4550316G00YPA
ref: 18-3
COVER,SEAT TAIL CTR
€ 53.00
18-3
4550316G00YPA
ref: 18-3
COVER,SEAT TAIL CTR
€ 53.00
18-4
4550316G00YAY
ref: 18-4
COVER,SEAT TAIL CTR
€ 76.00
18-4
4550316G00YAY
ref: 18-4
COVER,SEAT TAIL CTR
€ 76.00
19-1
6816116G00YD8
ref: 19-1
EMBLEM,SUZUKI
€ 6.00
19-2
6816116G00019
ref: 19-2
EMBLEM,SUZUKI
€ 9.00
19-3
6816116G0017U
ref: 19-3
EMBLEM,SUZUKI
€ 7.50
20
4551816G00
ref: 20
CUSHION,SEAT TAIL COVER CTR
€ 2.50
21
4551716G00
ref: 21
TAPE,SEAT TAIL COVER
€ 6.50
22
4551642F00
ref: 22
TAPE,COVER
€ 7.00
23-1
4551416G00YKZ
ref: 23-1
COVER,SEAT TAIL RR
€ 38.50
23-2
4551416G00YLF
ref: 23-2
COVER,SEAT TAIL RR
€ 38.50
23-3
4551416G00YPA
ref: 23-3
COVER,SEAT TAIL RR
€ 38.50
23-4
4551416G00YAY
ref: 23-4
COVER,SEAT TAIL RR
€ 48.00
24
0914806018
ref: 24
NUT
€ 2.50
25
0940906314
ref: 25
09409-06314-5PK
CLIP
€ 3.50
26-1
4621116G00YKZ
ref: 26-1
HANDLE,PILLION RIDER
€ 164.50
26-2
4621116G00YLF
ref: 26-2
HANDLE,PILLION RIDER(GLAY)
€ 245.00
26-3
4621116G00YPA
ref: 26-3
HANDLE,PILLION RIDER(WHITE)
€ 121.50
26-4
4621116G00YAY
ref: 26-4
HANDLE,PILLION RIDER
€ 163.50
27
015510840B
ref: 27
BOLT
€ 2.50
28
0916008158
ref: 28
WASHER(8.5X24X2.3)
€ 1.50
29
0918006271
ref: 29
SPACER(6.5X9X18)
€ 2.00
30
0913906112
ref: 30
SCREW(6X25)
€ 3.00
