CARBURETOR

T125II 1971 (R) USA (E03)

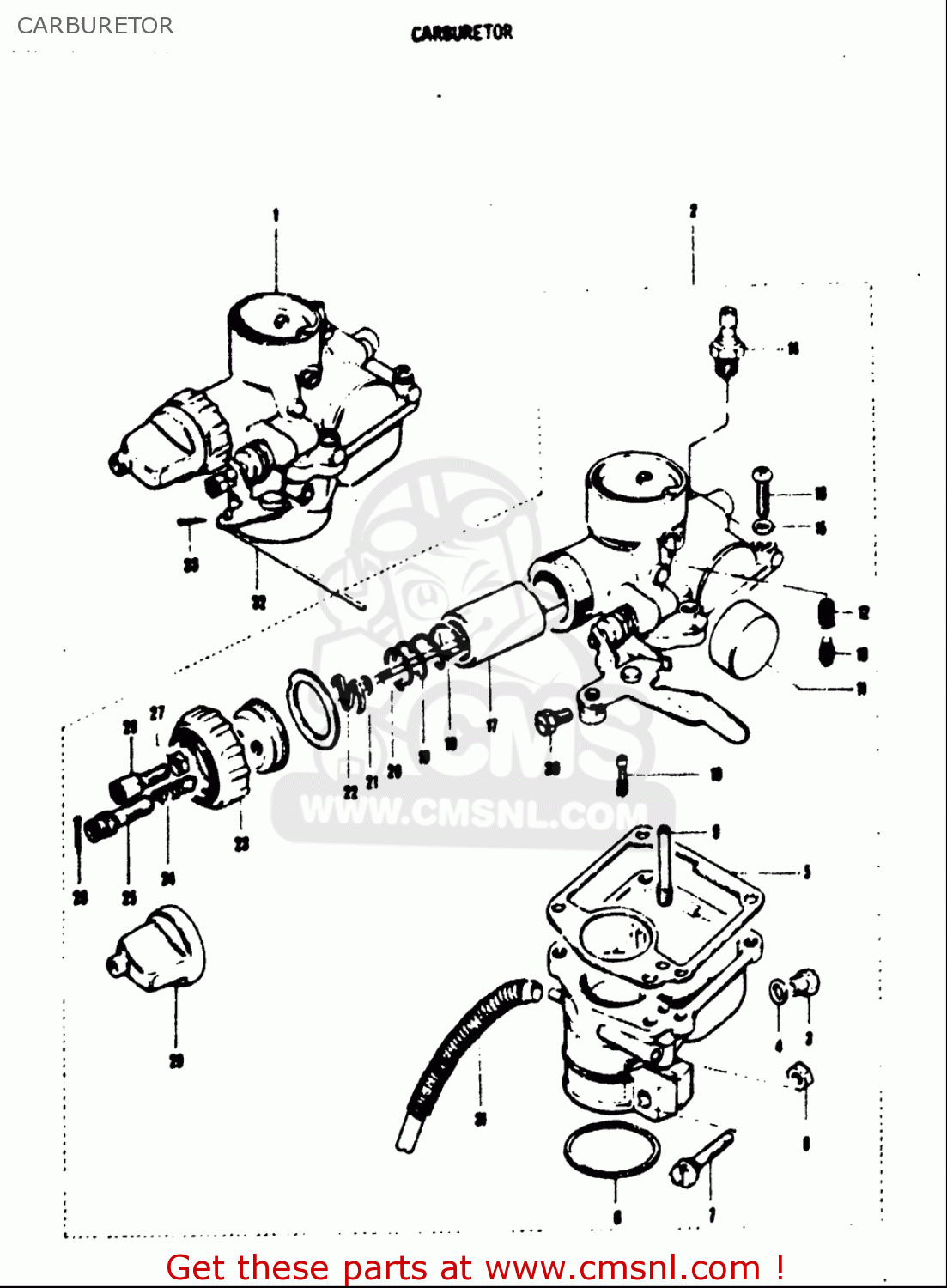

Carburetor diagram T125II 1971 (R) USA (E03)

CARBURETOR T125II 1971 (R) USA (E03)

CARBURETOR T125II 1971 (R) USA (E03)

prices are in EUR

ref

part #

description

quantity

4

1324905010
ref: 4

GASKET,DRAIN,PLUG (NAS)

€ 1.50

8

1332403010
ref: 8

NUT

€ 3.00

12

1326801010
ref: 12

SPRING

€ 3.50

13

1326901010
ref: 13

SCREW,PILOT AIR

€ 14.50

15

0832101043
ref: 15

WASHER,LOCK

€ 2.00

16

0211204163
ref: 16

SCREW 4X16

€ 1.00

18

1357309110
ref: 18

SPRING,THROTTLE VALVE

€ 8.00

21

1339440D00
ref: 21

CLIP,NEEDLE

€ 3.00

24

1326803110
ref: 24

SPRING,THROTTLE SCREW

€ 3.50

25

1326709210
ref: 25

SCREW,THROTTLE VALVE ADJUST

€ 4.50

27

1366103010
ref: 27

NUT

€ 3.50

28

1357748110
ref: 28

ADJUSTER,CABLE

€ 8.00

30

1342915010
ref: 30

BOLT, STARTER ROD

€ 3.00
