CRANKCASE
T125II 1971 (R) USA (E03)

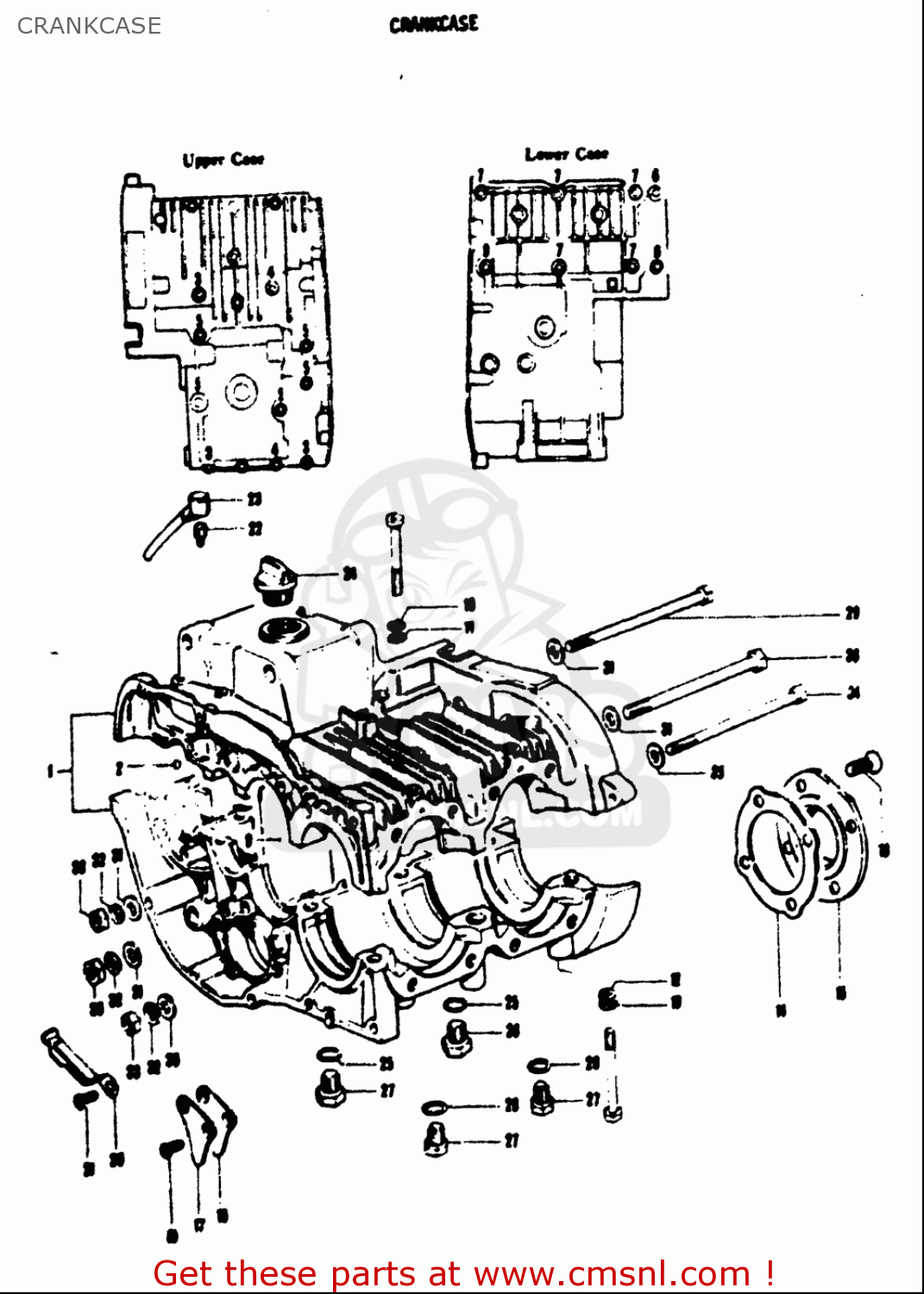

Crankcase diagram T125II 1971 (R) USA (E03)
CRANKCASE T125II 1971 (R) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
2
0421111129
ref: 2
PIN
€ 2.00
3
0150006403
ref: 3
BOLT
€ 2.00
4
0150006507
ref: 4
BOLT
€ 3.00
5
0150006553
ref: 5
BOLT
€ 2.00
6
0150006853
ref: 6
BOLT
€ 2.50
7
0150008703
ref: 7
BOLT
€ 2.50
8
0150008753
ref: 8
BOLT
€ 3.00
9
0832101067
ref: 9
WASHER,LOCK
€ 2.50
10
0832201057
ref: 10
WASHER
€ 2.50
11
0832201087
ref: 11
WASHER
€ 2.00
12
0832101087
ref: 12
WASHER,LOCK
€ 2.00
16
0212206127
ref: 16
SCREW
€ 3.00
22
2482109001
ref: 22
PLUG,T/M BREATHER
€ 5.50
23
2482220000
ref: 23
GASKET (NAS)
€ 16.00
24
0920020810
ref: 24
PLUG SET
€ 8.00
25
0916812003
ref: 25
GASKET(12X16X2) (NAS)
€ 2.00
26
0924712104
ref: 26
PLUG,12X9
€ 2.50
27
0924710001
ref: 27
PLUG
€ 3.00
28
0916810002
ref: 28
GASKET(10X14X3.6) (NAS)
€ 2.00
29
0910008023
ref: 29
BOLT 8X100
€ 2.00
30
0832201057
ref: 30
WASHER
€ 2.50
31
0832101087
ref: 31
WASHER,LOCK
€ 2.00
32
0831000087
ref: 32
NUT
€ 2.00
34
0832201087
ref: 34
WASHER
€ 2.00
