THROTTLE GRIP - HANDLE SWITCH

T125II 1971 (R) USA (E03)

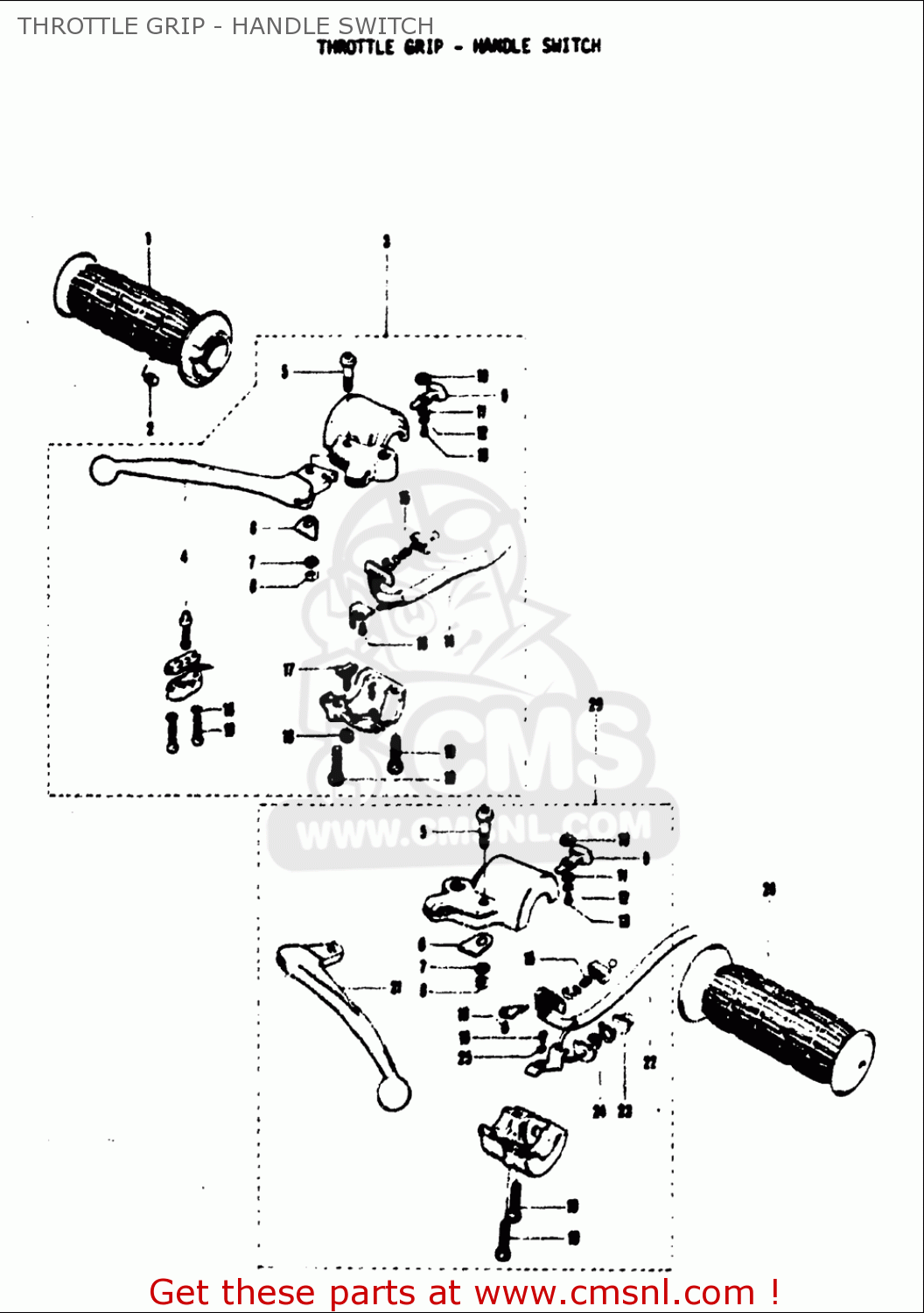

Throttle grip - handle switch diagram T125II 1971 (R) USA (E03)

prices are in EUR

ref

part #

description

quantity

5711020601
ref: 1

GRIP,THROTTLE

€ 11.50

5863107010
ref: 2

PIECE,THROTTLE END

€ 3.00

5742127212
ref: 4

LEVER,BRAKE

€ 28.00

5743101012
ref: 5

BOLT,LEVER PIVOT

€ 5.00

5743520010
ref: 6

SPACER,LEVER

€ 6.50

0832101057
ref: 7

WASHER,LOCK

€ 2.00

0831000057
ref: 8

NUT

€ 2.50

0832201037
ref: 11

WASHER

€ 2.00

0916203001
ref: 12

WASHER,LOCK

€ 1.50

0831000067
ref: 18

NUT

€ 2.50

0912505105
ref: 19

SCREW

€ 4.50

5762127210
ref: 21

LEVER,CLUTCH

€ 27.50

5737001311
ref: 23

BUTTON

€ 4.00

5738201311
ref: 24

SPRING

€ 3.00

0916203001
ref: 25

WASHER,LOCK

€ 1.50

5721120601
ref: 26

GRIP

€ 8.50
