CENTER STAND - FOOTREST BAR
T125II 1971 (R) USA (E03)

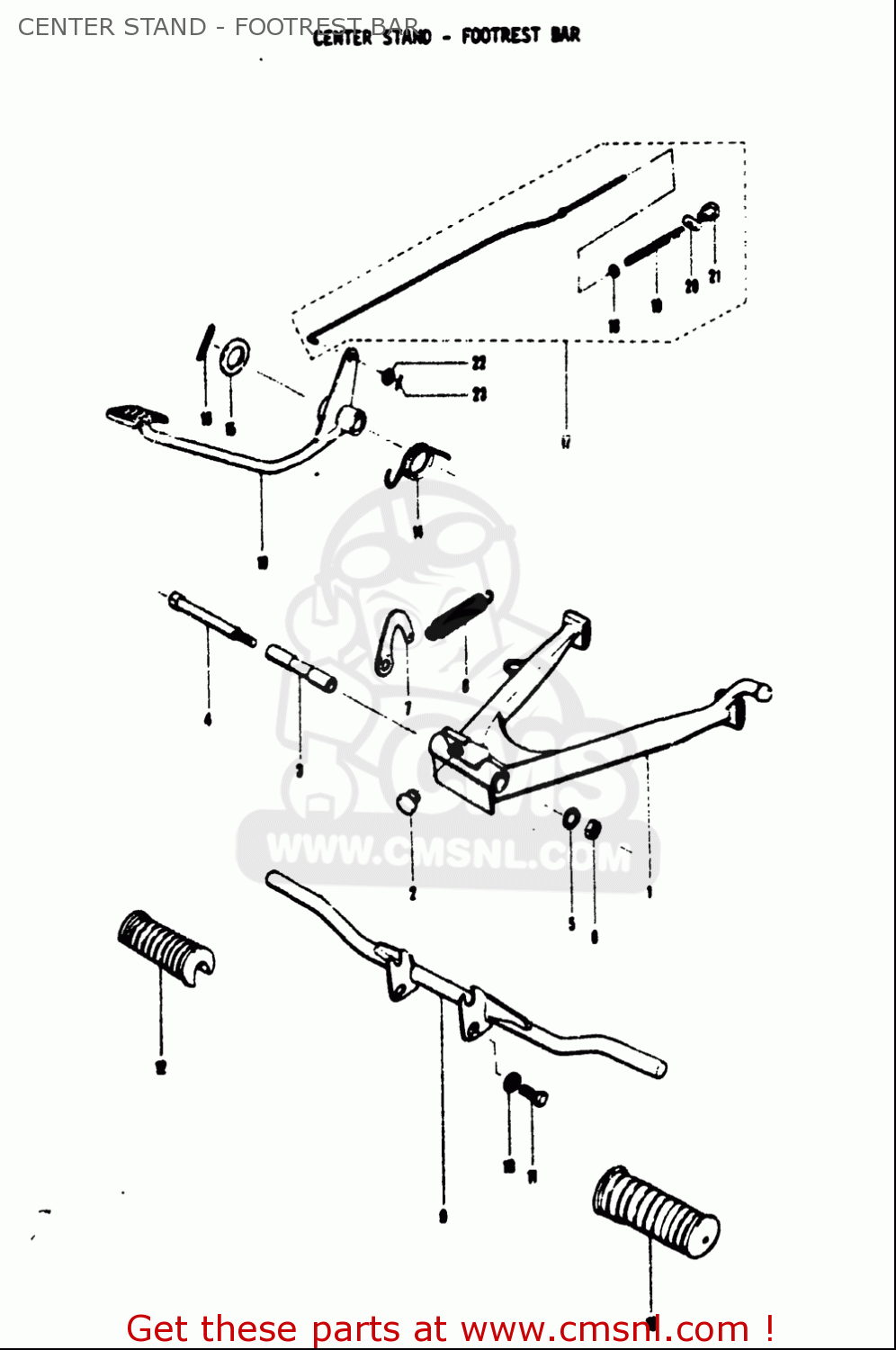

Center stand - footrest bar diagram T125II 1971 (R) USA (E03)
CENTER STAND - FOOTREST BAR T125II 1971 (R) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
2
0932110002
ref: 2
CUSHION(11.5X22X20)
€ 2.00
3
4221103001
ref: 3
SPACER
€ 4.50
4
0910010018
ref: 4
BOLT
€ 4.50
5
0832101107
ref: 5
WASHER,LOCK
€ 2.00
6
0831000107
ref: 6
NUT
€ 2.50
7
4225103003
ref: 7
HOOK,CENTER STAND SPRING
€ 5.00
8
0944316005
ref: 8
SPRING
€ 12.00
10
0832101087
ref: 10
WASHER,LOCK
€ 2.00
11
0150008163
ref: 11
BOLT
€ 2.00
12
4355103001
ref: 12
RUBBER,FR FOOTREST
€ 5.00
15
0916015002
ref: 15
WASHER(15.5X26X2.3)
€ 2.00
16
041113030A
ref: 16
PIN
€ 1.50
18
0832201067
ref: 18
WASHER
€ 2.00
19
0944009004
ref: 19
SPRING
€ 2.00
20
0920911002
ref: 20
PIN(11X18)
€ 2.00
21
0915006014
ref: 21
NUT
€ 3.50
22
0832201057
ref: 22
WASHER
€ 2.50
