REAR SWINGING ARM - REAR SHOCK ABSORBER

T125II 1971 (R) USA (E03)

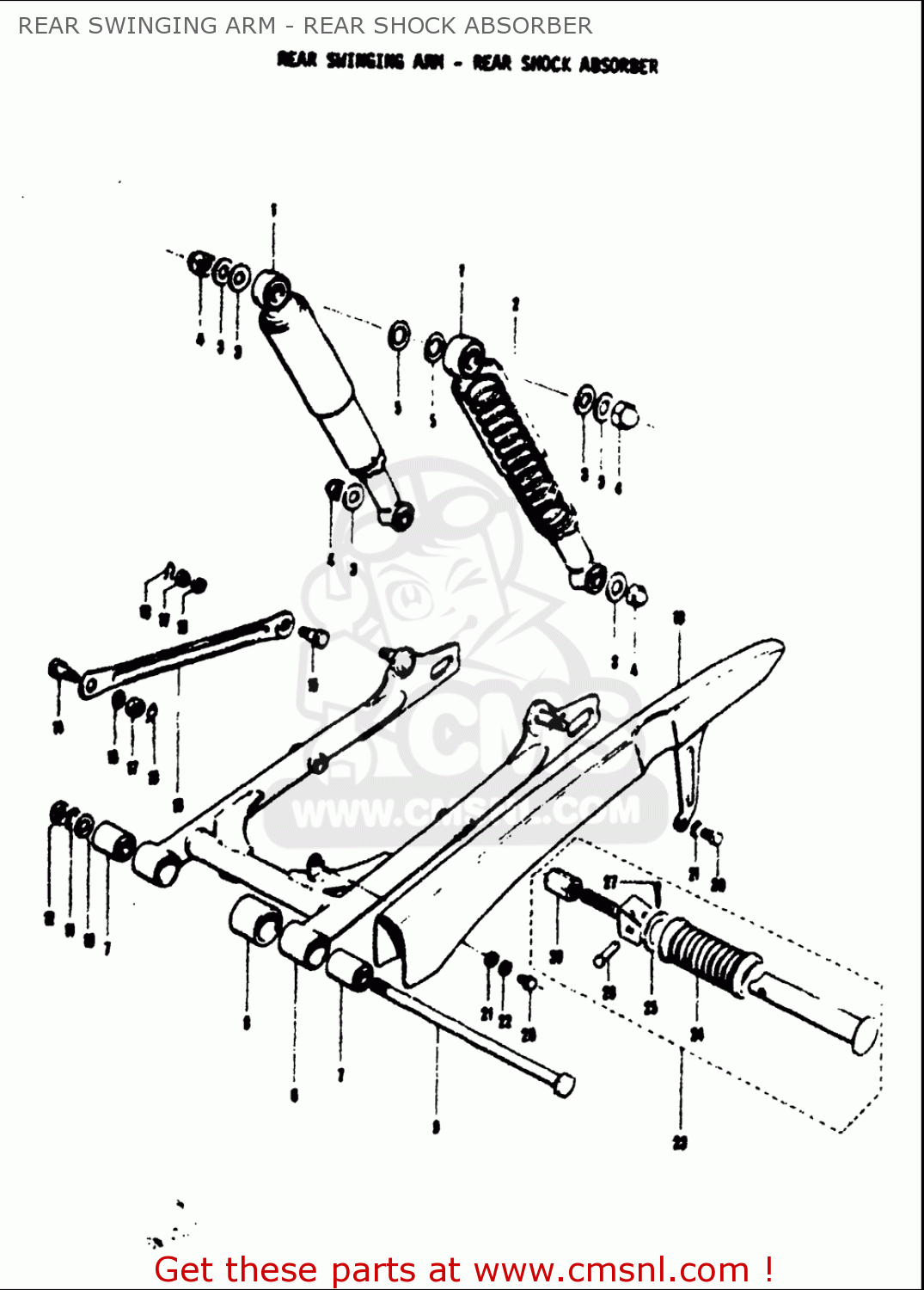

Rear swinging arm - rear shock absorber diagram T125II 1971 (R) USA (E03)

prices are in EUR

ref

part #

description

quantity

0916010127
ref: 3

WASHER (10.5X24X2.3)

€ 2.00

0831310107
ref: 4

NUT

€ 2.50

0832201127
ref: 5

WASHER

€ 2.00

0931910009
ref: 7

BUSHING(10X23X35)

€ 7.50

0832201107
ref: 10

WASHER

€ 2.50

0832101107
ref: 11

WASHER,LOCK

€ 2.00

0832101087
ref: 16

WASHER,LOCK

€ 2.00

0914008008
ref: 17

NUT

€ 1.50

0938406001
ref: 18

RETAINER,SNAP

€ 2.50

0832201067
ref: 21

WASHER

€ 2.00

0832101067
ref: 22

WASHER,LOCK

€ 2.50

4361203001
ref: 24

RUBBER,PILLION FOOTREST

€ 3.50

0916019024
ref: 25

WASHER(19.5X32X2)

€ 2.00

0920006010
ref: 26

PIN

€ 2.50

0915910003
ref: 28

NUT

€ 2.00
