CARBURETOR

T350 1969 1970 1971 1972 (?) (?) (R) (J) USA (E03)

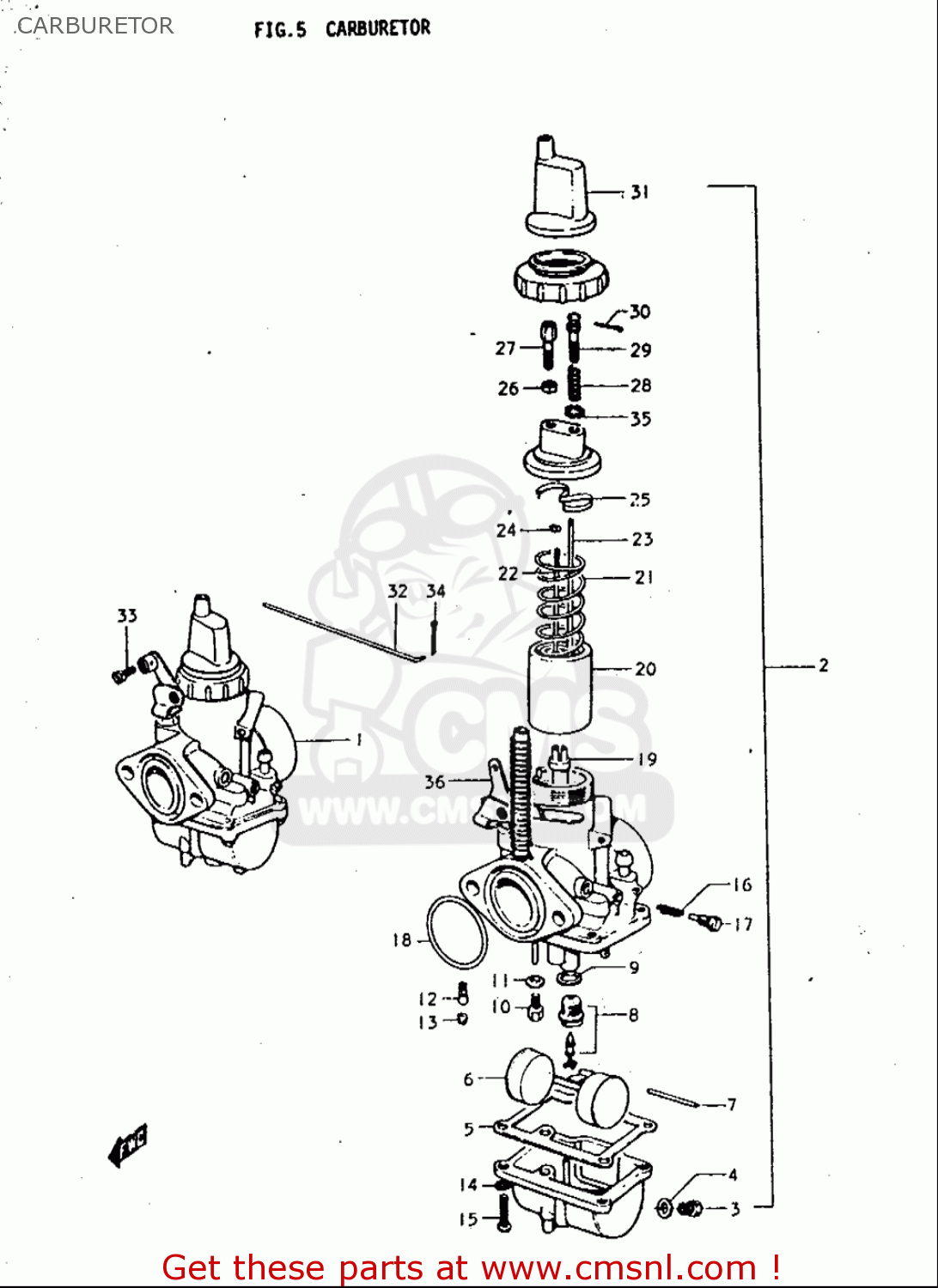

Carburetor diagram T350 1969 1970 1971 1972 (?) (?) (R) (J) USA (E03)

CARBURETOR T350 1969 1970 1971 1972 (?) (?) (R) (J) USA (E03)
CARBURETOR T350 1969 1970 1971 1972 (?) (?) (R) (J) USA (E03)
CARBURETOR T350 1969 1970 1971 1972 (?) (?) (R) (J) USA (E03)
prices are in EUR
ref
part #
description
quantity
3
1324705010
ref: 3
PLUG
1324705010
€ 6.00
4
1324905010
ref: 4
GASKET,DRAIN,PLUG (NAS)
1324905010
€ 1.50
5
1325133110
ref: 5
GASKET,FLOAT CAHMBER (NAS)
1325133110
€ 10.50
6
1325218010
ref: 6
FLOAT
1325218010
€ 28.50
7
1325401010
ref: 7
PIN,FLOAT
1325401010
€ 3.00
8
1337041500
ref: 8
VALVE ASSY,NEEDLE
1337041500
€ 61.50
9
1339216600
ref: 9
GASKET,MAIN JET HOLDER (NAS)
1339216600
€ 3.00
10-1
0949122015
ref: 10-1
JET,MAIN(112.5)
0949122015
€ 11.00
10-2
0949122016
ref: 10-2
JET,MAIN(110)
0949122016
€ 7.00
10-3
0949123011
ref: 10-3
JET,MAIN(115)
0949123011
€ 10.50
10-4
0949125010
ref: 10-4
JET,MAIN(125)
0949125010
€ 8.50
10-5
0949127009
ref: 10-5
JET,MAIN(135)
0949127009
€ 10.50
11
1338203110
ref: 11
WASHER
1338203110
€ 2.50
12-1
0949230006
ref: 12-1
JET,PILOT(30)
0949230006
€ 8.50
12-2
0949235004
ref: 12-2
JET,PILOT(35)
0949235004
€ 7.50
13
0949260003
ref: 13
JET
€ 0.00
14
0832101043
ref: 14
WASHER,LOCK
0832101043
€ 2.00
15
0211204163
ref: 15
SCREW 4X16
0211204163
€ 1.00
16
1326801010
ref: 16
SPRING
1326801010
€ 3.50
17
1326915010
ref: 17
SCREW,PILOT AIR
1326915010
€ 10.50
18-2
0928032001
ref: 18-2
O RING(D:3.5,ID:31.7)
0928032001
€ 2.00
23
1329615010
ref: 23
ROD,THROTTLE VALVE ADJUST
1329615010
€ 3.00
24
1339410010
ref: 24
CLIP
1339410010
€ 4.50
26
1366103010
ref: 26
NUT
1366103010
€ 3.50
27
1357748110
ref: 27
ADJUSTER,CABLE
1357748110
€ 8.00
28
1326803110
ref: 28
SPRING,THROTTLE SCREW
1326803110
€ 3.50
29
1326709210
ref: 29
SCREW,THROTTLE VALVE ADJUST
1326709210
€ 4.50
32-1
1342515010
ref: 32-1
ROD,STARTER LEVER
€ 11.50
32-2
1342515010
ref: 32-2
ROD,STARTER LEVER
€ 11.50
33
1342915010
ref: 33
BOLT, STARTER ROD
€ 3.00
35
0832331068
ref: 35
LOCK WASHER
0832331068
€ 1.50
