OIL TANK

T350 1969 1970 1971 1972 (?) (?) (R) (J) USA (E03)

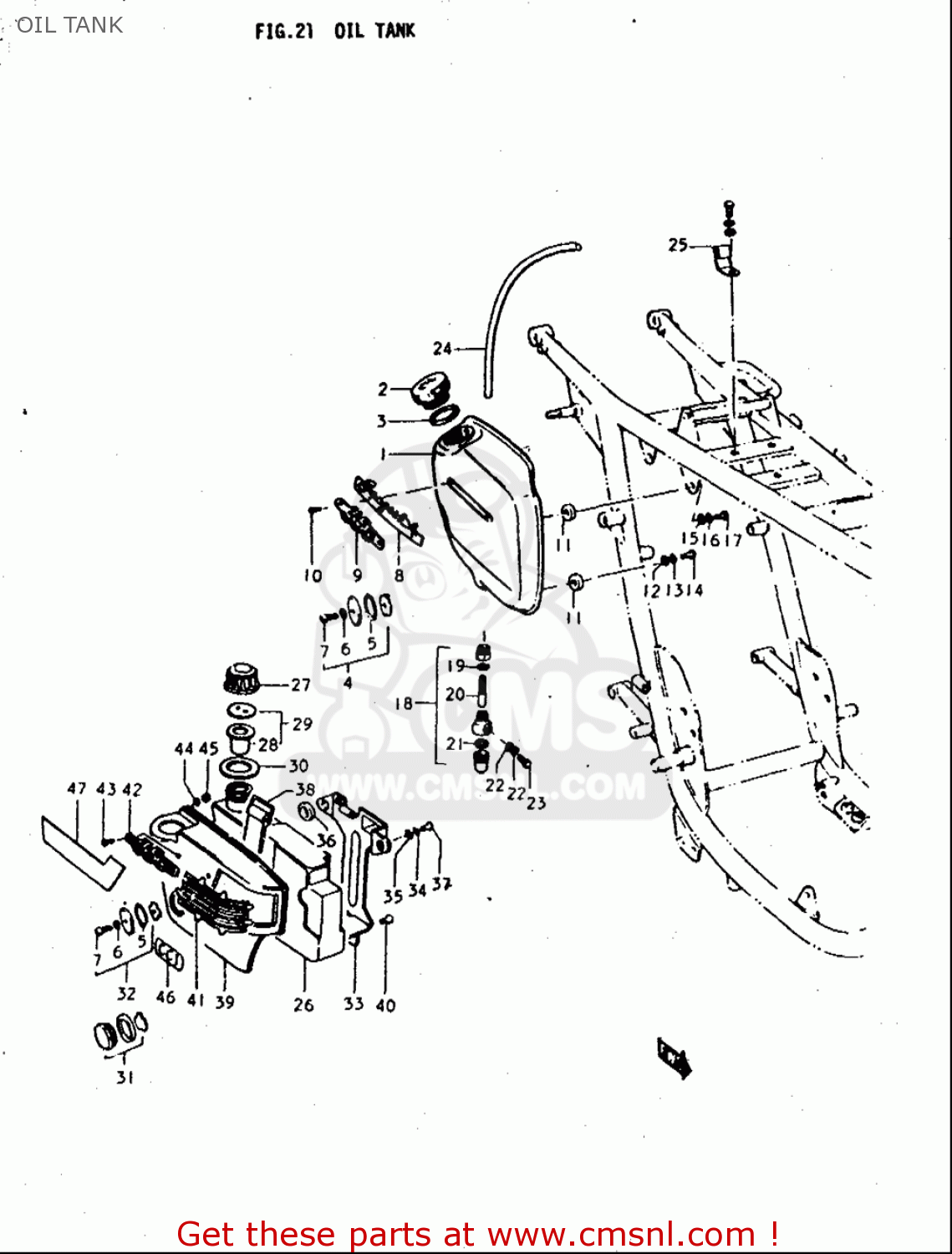

Oil tank diagram T350 1969 1970 1971 1972 (?) (?) (R) (J) USA (E03)

OIL TANK T350 1969 1970 1971 1972 (?) (?) (R) (J) USA (E03)
OIL TANK T350 1969 1970 1971 1972 (?) (?) (R) (J) USA (E03)
OIL TANK T350 1969 1970 1971 1972 (?) (?) (R) (J) USA (E03)
prices are in EUR
ref
part #
description
quantity
2
4465111040
ref: 2
CAP,OIL TANK
4465111040
€ 14.00
3
4466111000
ref: 3
GASKET,OIL TANK FILLER CAP (NAS)
4466111000
€ 4.00
4
4464011843
ref: 4
LENS SET,OIL INSPECTION
4464011843
€ 8.50
5
0928023001
ref: 5
O RING(D:3,ID:23)
0928023001
€ 2.00
6
0916805001
ref: 6
GASKET(5X9.5X1) (NAS)
0916805001
€ 2.00
7
0211205167
ref: 7
SCREW
0211205167
€ 2.50
10
0211203047
ref: 10
SCREW
0211203047
€ 2.00
11
0916108002
ref: 11
WASHER
0916108002
€ 2.50
12
0916006084
ref: 12
WASHER(6.5X18X1.6)
0916006084
€ 2.00
13
0832101067
ref: 13
WASHER,LOCK
0832101067
€ 2.50
15
0832201067
ref: 15
WASHER
0832201067
€ 2.00
16
0832101067
ref: 16
WASHER,LOCK
0832101067
€ 2.50
17
0910006067
ref: 17
BOLT(6X14)
0910006067
€ 2.50
19
4473311030
ref: 19
GASKET,OIL OUTLET JOINT (NAS)
4473311030
€ 2.00
20
4472011030
ref: 20
UNIT,OIL FILTER
4472011030
€ 5.50
22
0916806004
ref: 22
GASKET(6.2X11X1).2 (NAS)
0916806004
€ 1.50
23
0936006003
ref: 23
UNION BOLT
0936006003
€ 5.00
27-1
4465118601
ref: 27-1
CAP,OIL TANK
4465118601
€ 8.50
27-2
4465118601
ref: 27-2
CAP,OIL TANK
4465118601
€ 8.50
29
4466018818
ref: 29
GASKET,OIL TANK CAP (NAS)
4466018818
€ 12.50
30
4426127000
ref: 30
RUBBER,FUEL TANK INLET
4426127000
€ 8.00
31
4460031831
ref: 31
LENS SET,OIL LEVEL
4460031831
€ 18.00
34
0832101067
ref: 34
WASHER,LOCK
0832101067
€ 2.50
35
0832201067
ref: 35
WASHER
0832201067
€ 2.00
36
0916006084
ref: 36
WASHER(6.5X18X1.6)
0916006084
€ 2.00
37
0912806011
ref: 37
SCREW(6X12)
0912806011
€ 3.00
38
0946200007
ref: 38
BAND
0946200007
€ 5.00
40
0314205163
ref: 40
SCREW
€ 2.50
44
0832101057
ref: 44
WASHER,LOCK
0832101057
€ 2.00
45
0831000033
ref: 45
NUT
€ 2.00
46
6817126000
ref: 46
EMBLEM,CCIS
6817126000
€ 4.00
