REAR WHEEL

T350 1969 1970 1971 1972 (?) (?) (R) (J) USA (E03)

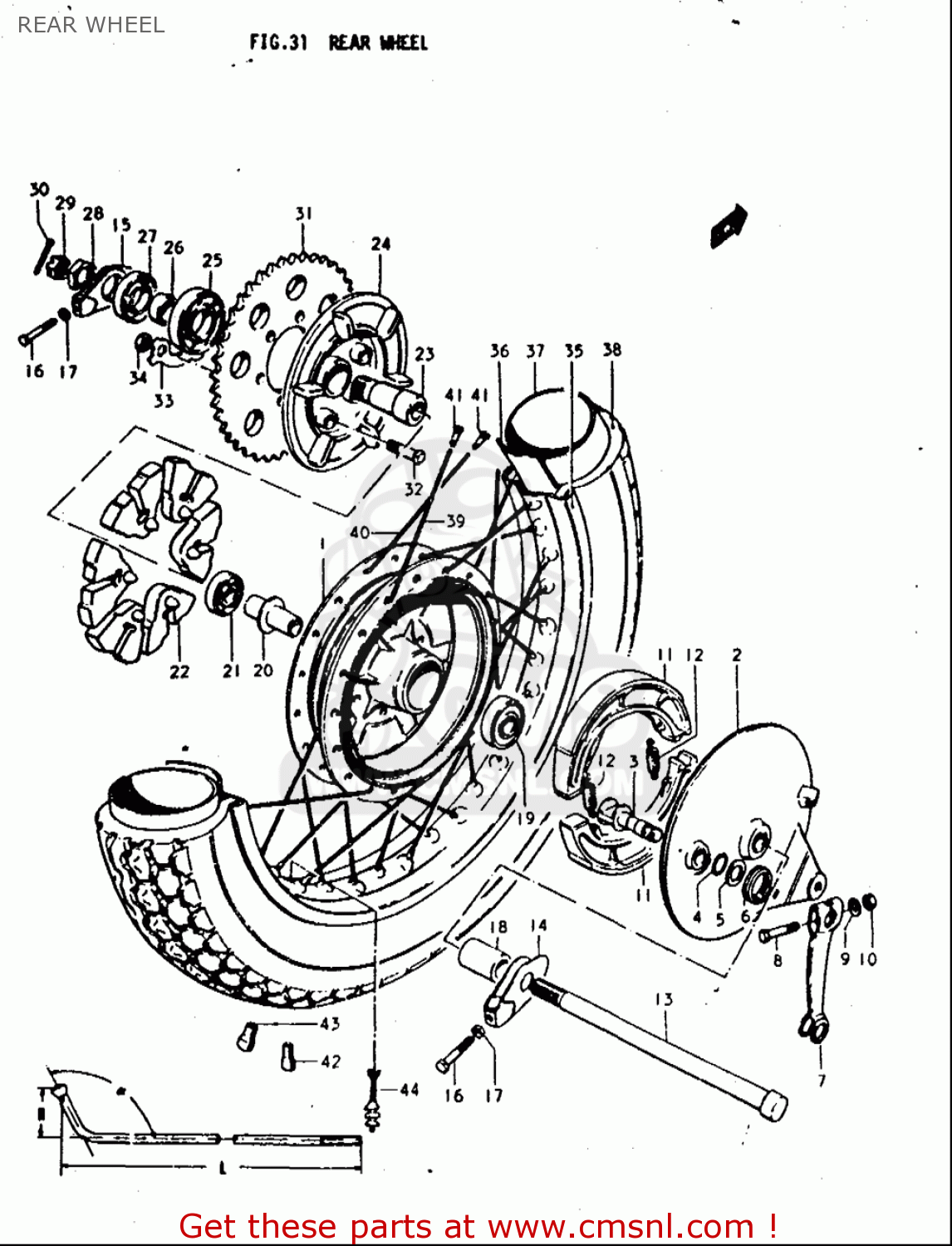

Rear wheel diagram T350 1969 1970 1971 1972 (?) (?) (R) (J) USA (E03)

REAR WHEEL T350 1969 1970 1971 1972 (?) (?) (R) (J) USA (E03)
REAR WHEEL T350 1969 1970 1971 1972 (?) (?) (R) (J) USA (E03)
REAR WHEEL T350 1969 1970 1971 1972 (?) (?) (R) (J) USA (E03)
prices are in EUR
ref
part #
description
quantity
3-1
6444038A00
ref: 3-1
CAM,RR BRAKE
6444038A00
€ 43.00
4
0928015003
ref: 4
O RING(D:2.4,ID:14.8)
0928015003
€ 2.00
5
0916015048
ref: 5
WASHER(15.5X24X1.6)
0916015048
€ 2.50
6
0944830001
ref: 6
SPRING
0944830001
€ 16.00
9
0832201067
ref: 9
WASHER
0832201067
€ 2.00
10
0831000067
ref: 10
NUT
0831000067
€ 2.50
11-1
6440011870
ref: 11-1
SHOE SET,BRAKE (NAS)
6440011870
€ 101.00
11-2
6440011870
ref: 11-2
SHOE SET,BRAKE (NAS)
6440011870
€ 101.00
12
5542030000
ref: 12
SPRING,BRAKE SHOE
5542030000
€ 3.50
13
6471108002
ref: 13
AXLE,REAR
6471108002
€ 36.00
15
6142015002
ref: 15
ADJUSTER,CHAIN,L
6142015002
€ 474.50
16
0910408034
ref: 16
BOLT(8X50)
0910408034
€ 3.00
17
0831000087
ref: 17
NUT
0831000087
€ 2.00
19
0814363037
ref: 19
BEARING
0814363037
€ 23.00
20
6473011000
ref: 20
SPACER
6473011000
€ 21.00
21
0814362037
ref: 21
BEARING
0814362037
€ 18.50
22
6465111002
ref: 22
ABSORBER,RR HUB SHOCK
6465111002
€ 19.50
25
0926225003
ref: 25
BEARING(25X52X15)
0926225003
€ 20.50
26
0918025011
ref: 26
SPACER (25X30.5X11.3)
0918025011
€ 6.50
27
0928530001
ref: 27
SEAL,OIL(30.5X52X8)
0928530001
€ 20.00
28
0914024010
ref: 28
NUT
0914024010
€ 8.50
32
0910510001
ref: 32
BOLT(10X35.5)
0910510001
€ 3.50
33
0916910006
ref: 33
WASHER
0916910006
€ 4.50
34
0831000107
ref: 34
NUT
0831000107
€ 2.50
35
6531111220
ref: 35
RIM,RR WHEEL
6531111220
€ 114.50
36
5526111010
ref: 36
PROTECTOR,INNER TUBE
5526111010
€ 3.50
37
6520044AA0
ref: 37
TUBE ASSY,INNER
6520044AA0
€ 35.00
38-4
6532015819
ref: 38-4
SPOKE SET,RR WHEEL
6532015819
€ 65.00
42
5541111000
ref: 42
BALANCER,WHEEL (B)
€ 4.50
43
5541211000
ref: 43
BALANCER,WHEEL (30G)
5541211000
€ 8.00
