FRONT WHEEL

T350 1969 1970 1971 1972 (?) (?) (R) (J) USA (E03)

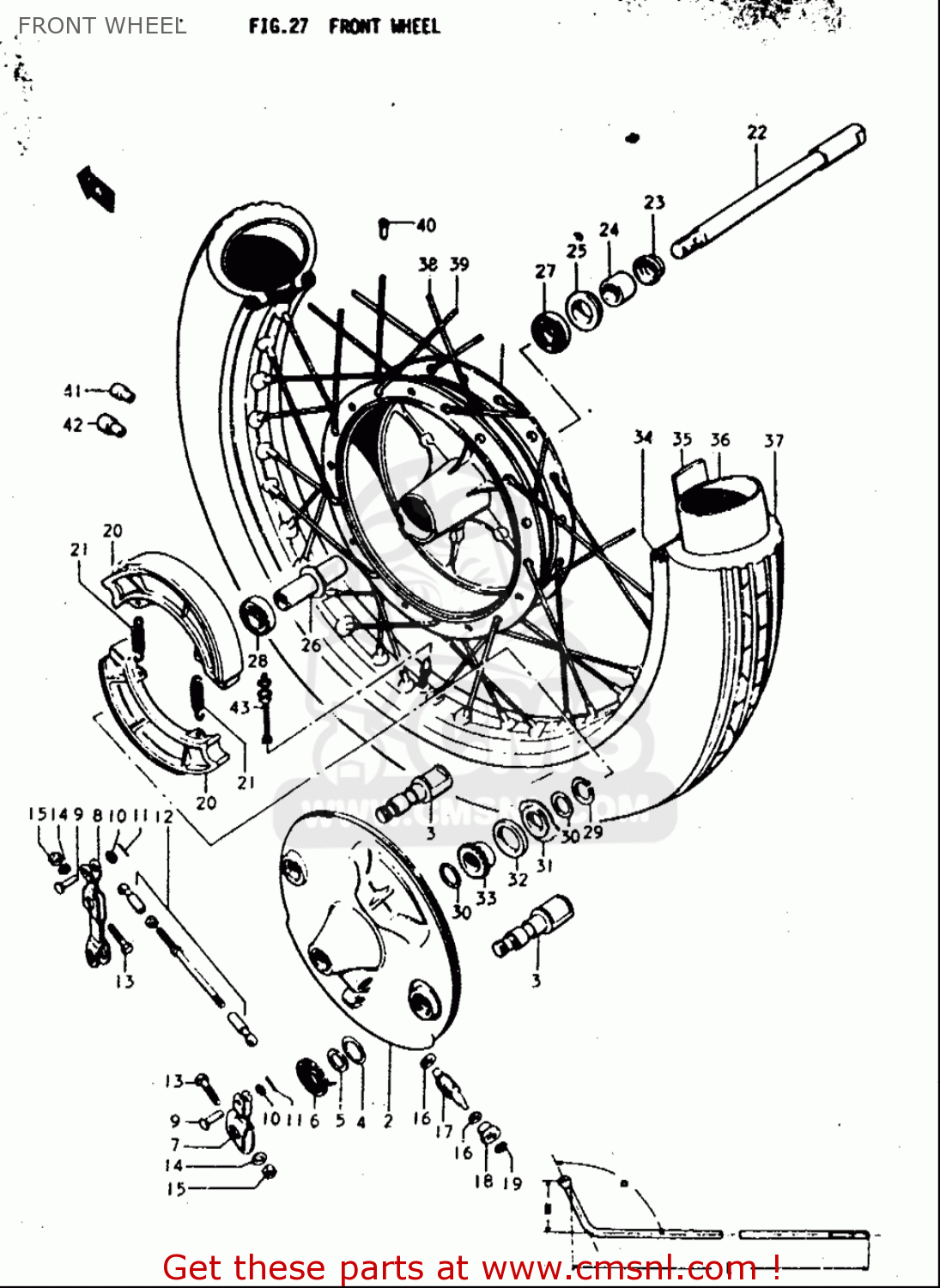

Front wheel diagram T350 1969 1970 1971 1972 (?) (?) (R) (J) USA (E03)

FRONT WHEEL T350 1969 1970 1971 1972 (?) (?) (R) (J) USA (E03)
FRONT WHEEL T350 1969 1970 1971 1972 (?) (?) (R) (J) USA (E03)
FRONT WHEEL T350 1969 1970 1971 1972 (?) (?) (R) (J) USA (E03)
prices are in EUR
ref
part #
description
quantity
3-1
6444038A00
ref: 3-1
CAM,RR BRAKE
6444038A00
€ 43.00
4
0928015003
ref: 4
O RING(D:2.4,ID:14.8)
0928015003
€ 2.00
5
0916015048
ref: 5
WASHER(15.5X24X1.6)
0916015048
€ 2.50
6
0944830001
ref: 6
SPRING
0944830001
€ 16.00
10
0832201067
ref: 10
WASHER
0832201067
€ 2.00
11
0411112108
ref: 11
PIN 12X10
0411112108
€ 2.00
13
0910006150
ref: 13
BOLT(6X31)
0910006150
€ 1.50
14
0832201067
ref: 14
WASHER
0832201067
€ 2.00
15
0831000067
ref: 15
NUT
0831000067
€ 2.50
16
0916005001A05
ref: 16
WASHER(5.1X9X0.4)
0916005001A05
€ 2.00
17
5462111000
ref: 17
PINION,SPEEDOMETER
5462111000
€ 11.50
18
5463249200
ref: 18
BUSHING,SPEEDOMETER PINION
5463249200
€ 6.50
19
0928906001
ref: 19
SEAL,OIL(6X10X3)
0928906001
€ 4.00
21
5542030000
ref: 21
SPRING,BRAKE SHOE
5542030000
€ 3.50
22
5471115000
ref: 22
AXLE,FRONT
5471115000
€ 41.50
24
0918015001
ref: 24
SPACER
0918015001
€ 6.00
26
5473011000
ref: 26
SPACER,FRONT HUB BEARING
€ 36.00
27
0811360020
ref: 27
BEARING
0811360020
€ 14.00
28
0814362027
ref: 28
BEARING
0814362027
€ 12.50
29
0833131226
ref: 29
CIRCLIP
0833131226
€ 2.00
30
0916022001
ref: 30
WASHER(22.5X27X1)
0916022001
€ 2.00
31
5466011031
ref: 31
DRIVER,SPEEDOMETER GEAR
5466011031
€ 31.00
32
0928526003
ref: 32
SEAL,OIL(26X38X4)
0928526003
€ 22.00
35
5526111010
ref: 35
PROTECTOR,INNER TUBE
5526111010
€ 3.50
36-1
6520044AA0
ref: 36-1
TUBE ASSY,INNER
6520044AA0
€ 35.00
36-2
5520026F00
ref: 36-2
TUBE ASSY,WHEEL INNER
5520026F00
€ 24.50
37-4
6532015819
ref: 37-4
SPOKE SET,RR WHEEL
6532015819
€ 65.00
41
5541111000
ref: 41
BALANCER,WHEEL (B)
€ 4.50
42
5541211000
ref: 42
BALANCER,WHEEL (30G)
5541211000
€ 8.00
