DUAL SEAT - FENDER
TC120 1971 (R) USA (E03)

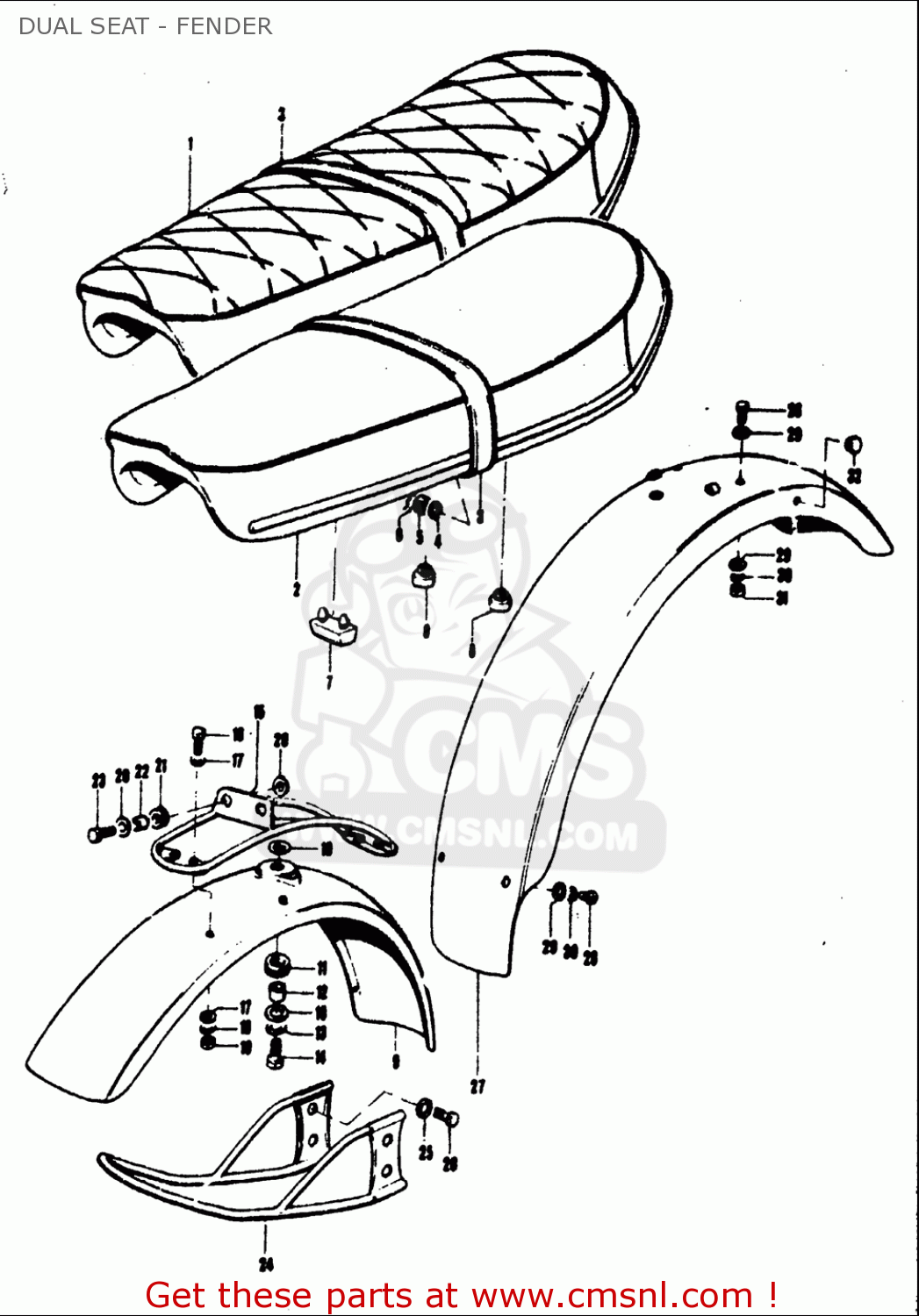

Dual seat - fender diagram TC120 1971 (R) USA (E03)
DUAL SEAT - FENDER TC120 1971 (R) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
4
0832201087
ref: 4
WASHER
€ 2.50
5
0831000087
ref: 5
NUT
€ 2.50
6
0938506004
ref: 6
CLIP
€ 12.00
7
0932108006
ref: 7
CUSHION
€ 3.00
8
0932110001
ref: 8
CUSHION
€ 3.00
10
0916008134
ref: 10
WASHER(8.5X26X1.6)
€ 3.00
11
0932009002
ref: 11
CUSHION
€ 5.00
12
0918008039
ref: 12
SPACER(8.2X10X8)
€ 2.50
13
0832101087
ref: 13
WASHER,LOCK
€ 2.50
14
0150008207
ref: 14
BOLT
€ 3.50
17
0832201067
ref: 17
WASHER
€ 2.50
18
0832101067
ref: 18
WASHER,LOCK
€ 2.50
19
0831000067
ref: 19
NUT
€ 2.50
20
0916006077
ref: 20
WASHER(6.5X20X1.2)
€ 2.00
21
0932008021
ref: 21
CUSHION
€ 4.50
22
09180C06259J000
ref: 22
SPACER,6.5X9X7
€ 0.00
25
0832101067
ref: 25
WASHER,LOCK
€ 2.50
28
0910006067
ref: 28
BOLT(6X14)
€ 3.00
29
0832201067
ref: 29
WASHER
€ 2.50
30
0832101067
ref: 30
WASHER,LOCK
€ 2.50
31
0831000067
ref: 31
NUT
€ 2.50
