STAND - FOOTREST
TC120 1971 (R) USA (E03)

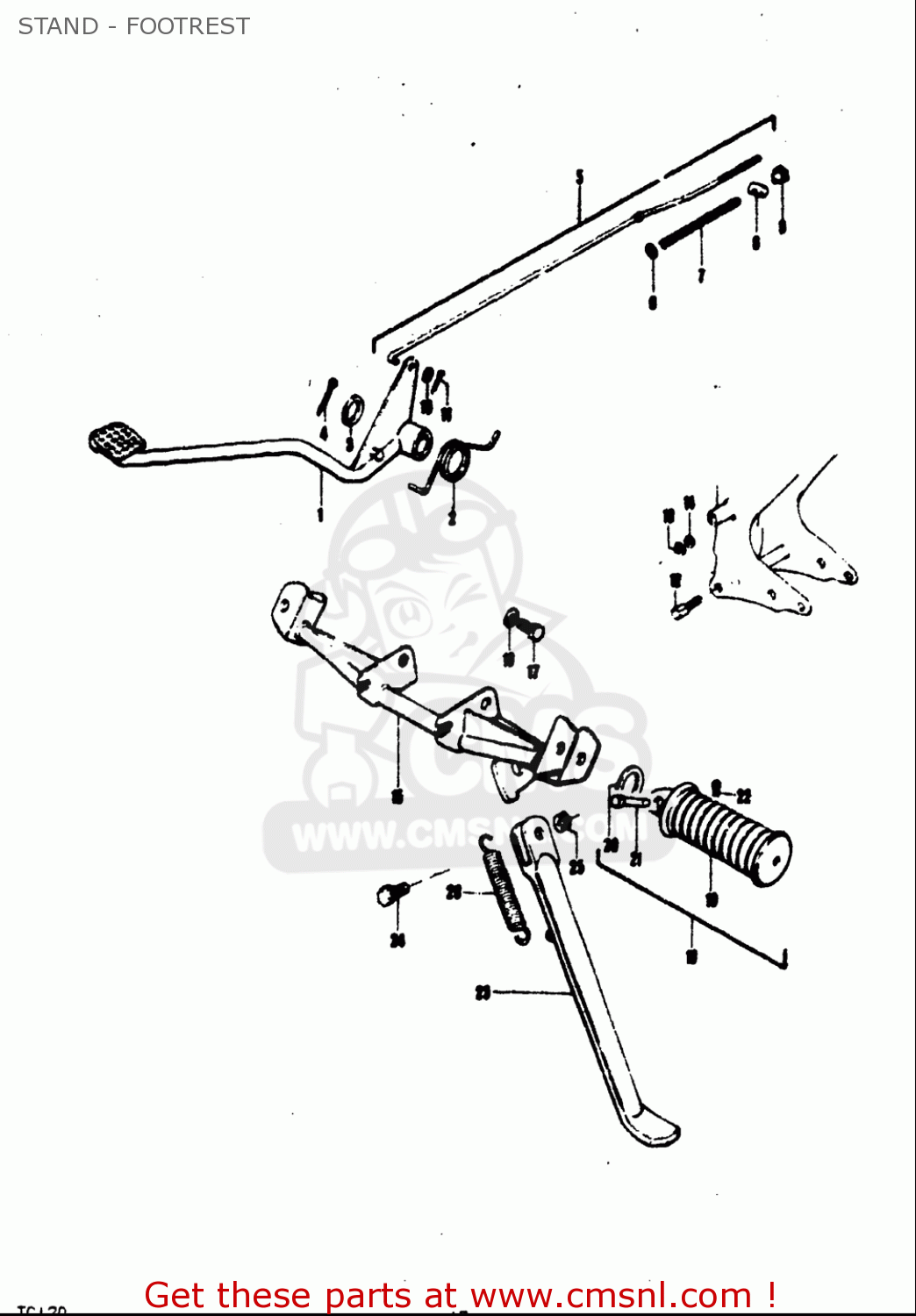

Stand - footrest diagram TC120 1971 (R) USA (E03)
STAND - FOOTREST TC120 1971 (R) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
2
0944831001
ref: 2
SPRING
€ 2.50
3
0916015002
ref: 3
WASHER(15.5X26X2.3)
€ 2.00
5
4330020200
ref: 5
ROD ASSY,RR BRAKE
€ 11.50
6
0832201067
ref: 6
WASHER
€ 2.00
7
0944009004
ref: 7
SPRING
€ 2.00
8
0920911002
ref: 8
PIN(11X18)
€ 2.00
9
0915006014
ref: 9
NUT
€ 3.50
10
0832201057
ref: 10
WASHER
€ 2.50
11
041113030A
ref: 11
PIN
€ 1.50
13
0832101107
ref: 13
WASHER,LOCK
€ 2.00
14
0831000107
ref: 14
NUT
€ 2.50
16
0832101087
ref: 16
WASHER,LOCK
€ 2.00
17
0150008163
ref: 17
BOLT
€ 2.00
20
0916022033
ref: 20
WASHER(22.5X38X1)
€ 3.50
21
0920008002
ref: 21
PIN
€ 2.00
24-1
0910010067
ref: 24-1
BOLT(10X30)
€ 3.50
24-2
0910010287
ref: 24-2
BOLT(10X27)
€ 4.50
25
0831000107
ref: 25
NUT
€ 2.50
26
0944314017
ref: 26
SPRING
€ 6.50
