KICK STARTER

TC120 1971 (R) USA (E03)

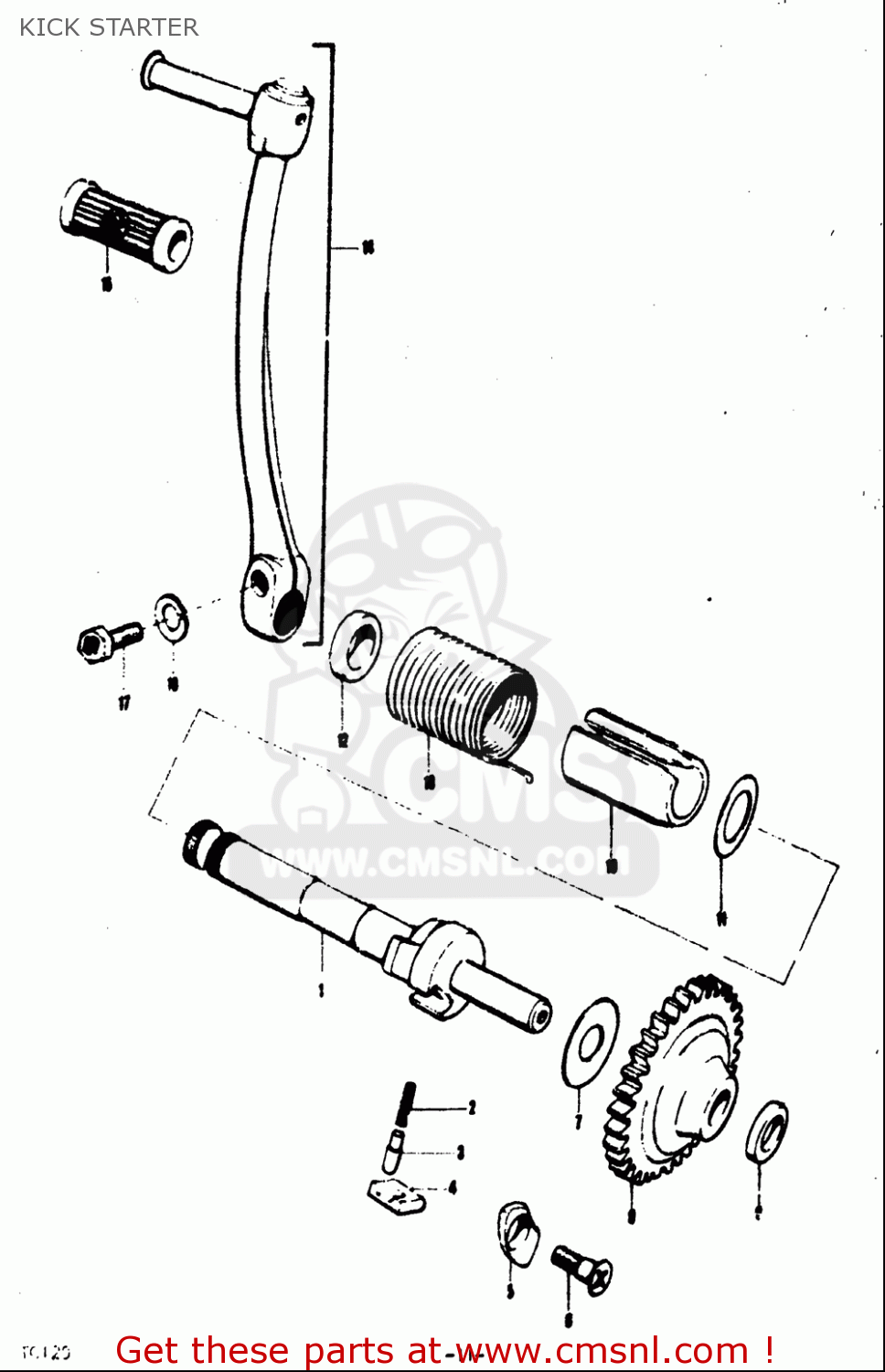

Kick starter diagram TC120 1971 (R) USA (E03)

KICK STARTER TC120 1971 (R) USA (E03)

KICK STARTER TC120 1971 (R) USA (E03)

prices are in EUR

ref

part #

description

quantity

2

0944004010
ref: 2

SPRING

€ 1.50

3

0920905011
ref: 3

PIN(5X15.5)

€ 2.00

5

2623201000
ref: 5

LIFTER,KICK STARTER PAWL

€ 8.00

6

0913906002
ref: 6

SCREW(6X19)

€ 2.50

7

0821112302
ref: 7

WASHER

€ 2.50

9

0918012010
ref: 9

SPACER

€ 0.00

10

2622108030
ref: 10

GUIDE,KICK STARTER SFT SPRING

€ 6.50

11

0916016003
ref: 11

WASHER(16X30X1)

€ 2.50

12

0928516002
ref: 12

SEAL,OIL(16X30X8)

€ 6.50

15

2635201000
ref: 15

RUBBER,KICK STARTER PEDAL

€ 3.50

16

0832101087
ref: 16

WASHER,LOCK

€ 2.00

17

0150008257
ref: 17

BOLT

€ 2.50
