REDUCTION SHIFTING

TC120 1971 (R) USA (E03)

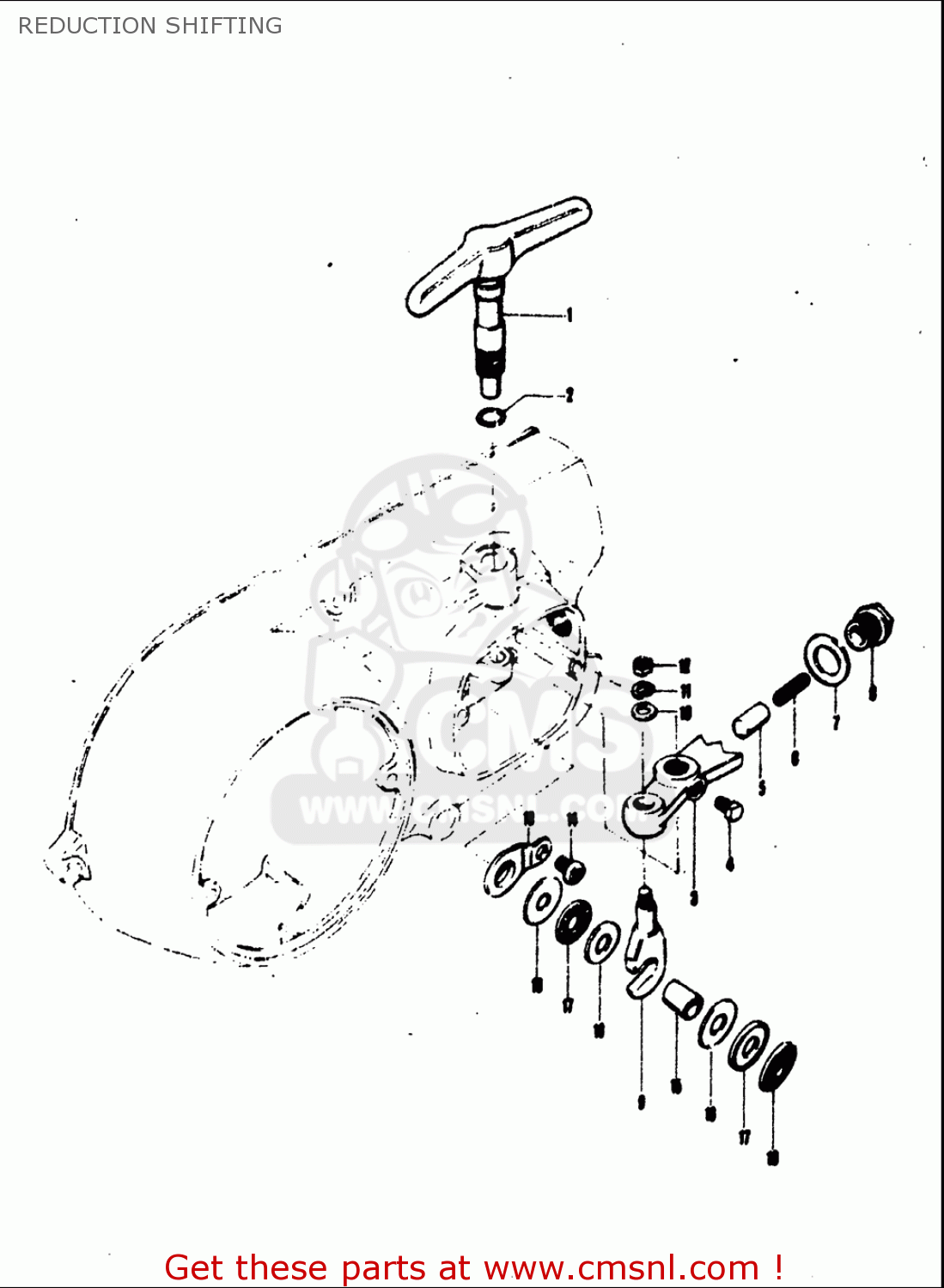

Reduction shifting diagram TC120 1971 (R) USA (E03)

prices are in EUR

ref

part #

description

quantity

0928010001
ref: 2

O RING(D:1.3,ID:9.6)

€ 2.00

5-2

2535111010
ref: 5-2

STOPPER,REVERSE CAM

€ 6.50

6-1

0944008009
ref: 6-1

SPRING

€ 1.50

6-2

0944005007
ref: 6-2

SPRING

€ 12.00

7-2

0916014054
ref: 7-2

WASHER(14.5X22X1)

€ 1.00

0832201057
ref: 10

WASHER

€ 2.50

0832101057
ref: 11

WASHER,LOCK

€ 2.00

0831000057
ref: 12

NUT

€ 2.50

0918006017
ref: 15

SPACER(6X10X12.2)

€ 4.00

0916010121
ref: 16

WASHER(10.5X18X1)

€ 2.00

0926310002
ref: 17

BEARING(10X22X2.8)

€ 8.50

0821106223
ref: 18

WASHER

€ 1.50

0916006033
ref: 19

WASHER (6X22X2)

€ 2.50
