CYLINDER

TL1000R 1999 (X) USA (E03)

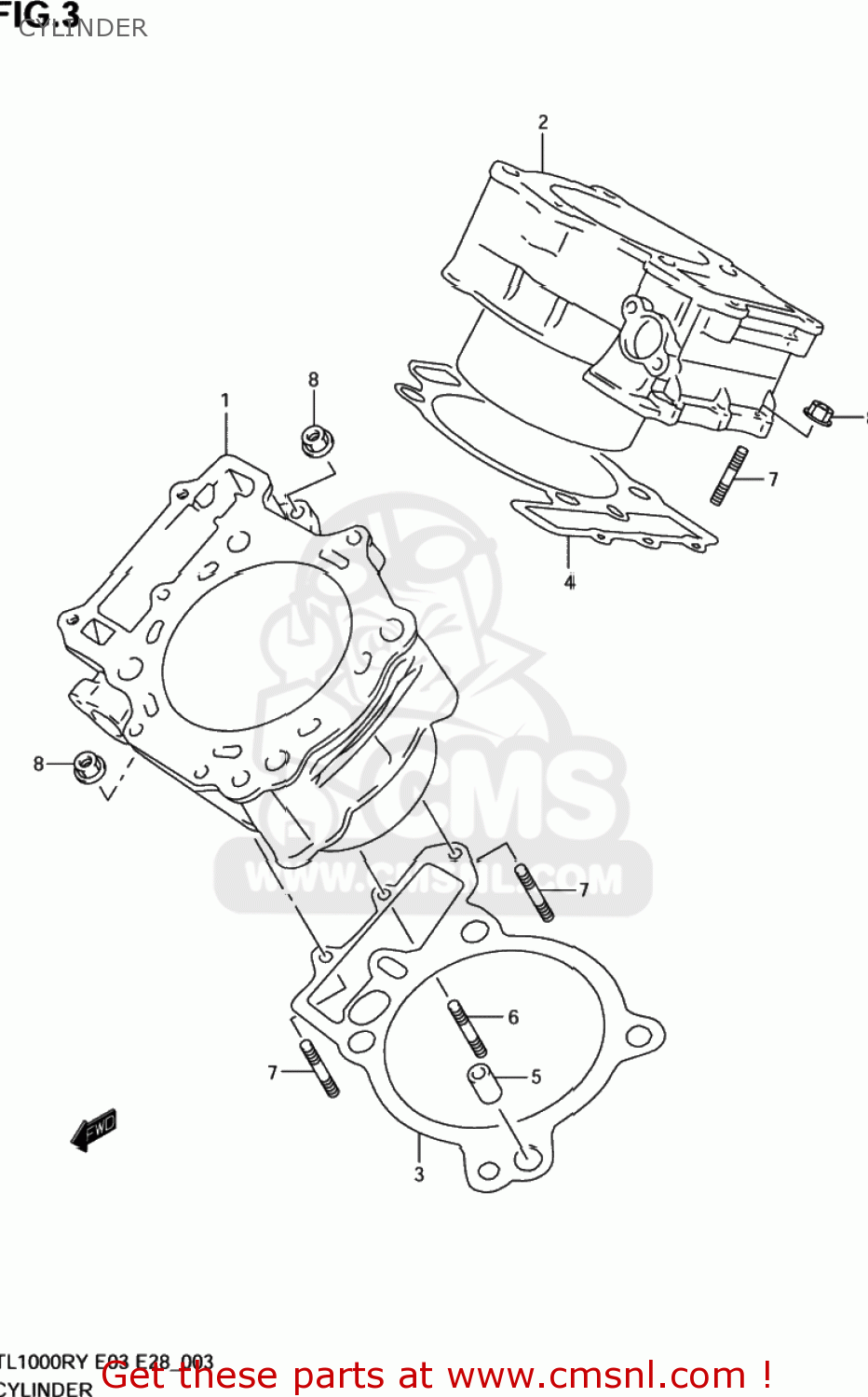

Cylinder diagram TL1000R 1999 (X) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

1121102F010F0
ref: 1-1
11211-02F02-0F0

CYLINDER,FRONT

€ 1,113.50

1-2

1121102F020F0
ref: 1-2

CYLINDER,FR

€ 1,113.50

2-1

1122102F010F0
ref: 2-1
11221-02F02-0F0

CYLINDER,REAR

€ 663.00

2-2

1122102F020F0
ref: 2-2

CYLINDER,RR

€ 663.00

1124102F01
ref: 3

GASKET,CYLINDER FR (NAS)

€ 19.50

1124202F01
ref: 4

GASKET,CYLINDER RR (NAS)

€ 19.50

0421113189
ref: 5

PIN

€ 2.50

0910806118
ref: 6

STUD BOLT (L:20)

€ 2.00

0142106203
ref: 7
01421-0620A

STUD,M6X1X32

€ 2.50

0831610063
ref: 8
08316-1006B

NUT

€ 2.50
