FRONT BRAKE HOSE

TL1000R 1999 (X) USA (E03)

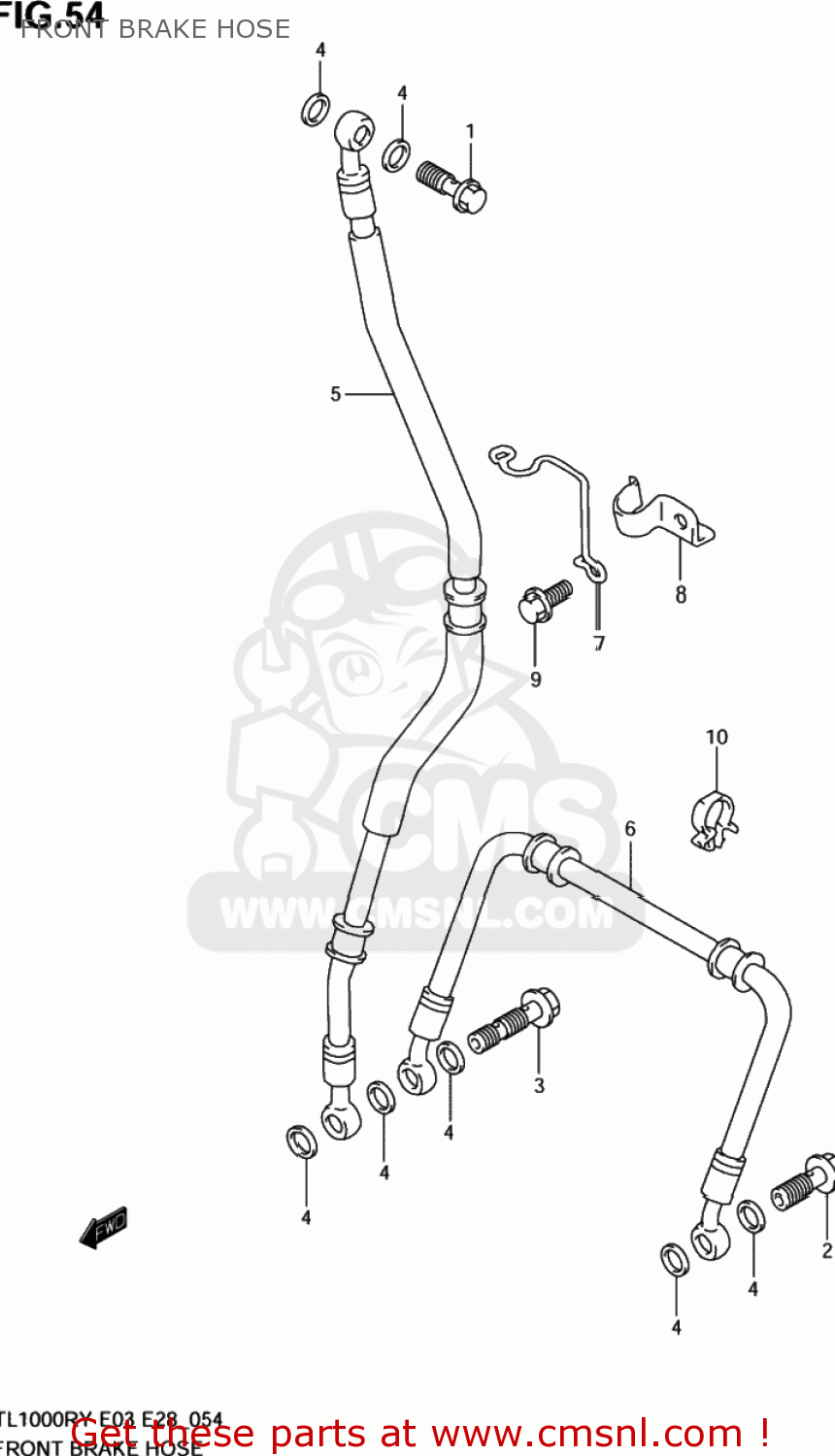

Front brake hose diagram TL1000R 1999 (X) USA (E03)

prices are in EUR

ref

part #

description

quantity

0936010041
ref: 1
09360-10061

BOLT UNION

€ 6.50

0936010042
ref: 2
09360-10062

BOLT UNION

€ 5.00

0936010044
ref: 3
09360-10064

BOLT UNION

€ 5.00

0916110009
ref: 4

WASHER(10X15X1.5)

€ 2.00

5948002FA0
ref: 5

HOSE,FR BRAKE NO.1

€ 62.50

5924002FA0
ref: 6

HOSE,FR BRAKE NO.2

€ 66.00

5924302F00
ref: 7
59243-02F0V

GUIDE,FRONT BRAKE HOSE

€ 7.50

5926638D00
ref: 8

CLAMP,FR BRAKE HOSE UPR

€ 13.00

0155006163
ref: 9
01550-0616A

BOLT

€ 2.50

0940314304
ref: 10

CLAMP

€ 3.00
