SPEEDOMETER
TL1000R 1999 (X) USA (E03)

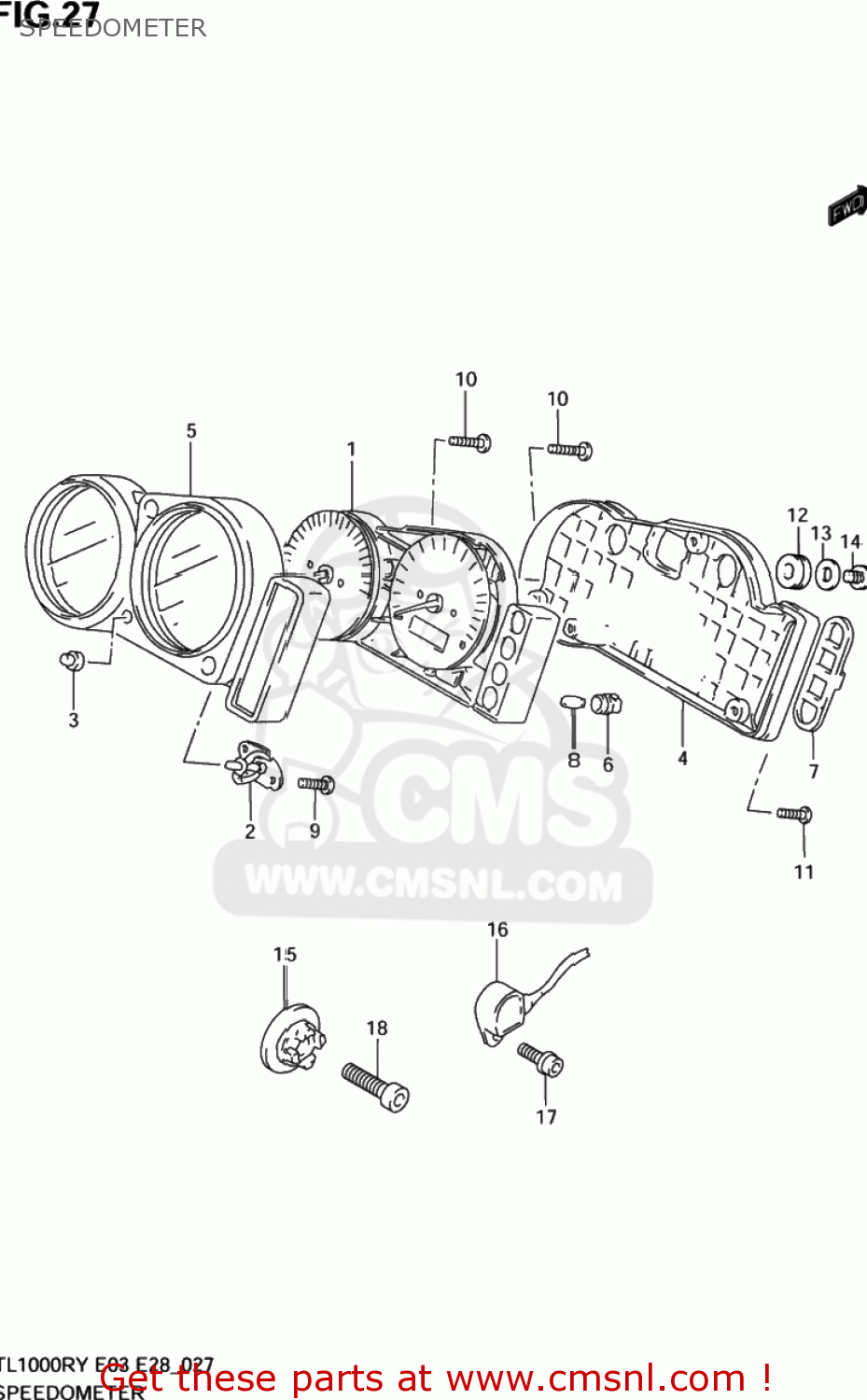

Speedometer diagram TL1000R 1999 (X) USA (E03)
SPEEDOMETER TL1000R 1999 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
3412002FC0
ref: 1-1
SPEEDOMETER(MILE/KILO)
€ 0.00
1-2
3412002FA0
ref: 1-2
SPEEDOMETER(KILO)
€ 781.00
1-3
3412002FH0
ref: 1-3
SPEEDOMETER(MILE/KILO)
€ 0.00
1-4
3412002FF0
ref: 1-4
SPEEDOMETER(KILO)
€ 781.00
2
3412333E00
ref: 2
ATTACHMENT,SWITCH
€ 6.50
3
3412433E00
ref: 3
SWITCH,GUM
€ 5.50
4
3413033E01
ref: 4
CASE ASSY
€ 70.50
5
3415033EA0
ref: 5
VISOR,METER
€ 96.00
6
3417233E00
ref: 6
SOCKET(T:6.5)
€ 5.00
7
3419833E10
ref: 7
CAP,BLIND NO.2
€ 8.50
8
0947112108
ref: 8
BULB(12V1.7W,T6.5)
€ 2.00
9
0913203005
ref: 9
SCREW(3X10)
€ 1.50
10
0351104163
ref: 10
03511-0416A
SCREW
€ 1.50
11
0354104203
ref: 11
03541-0420A
SCREW
€ 2.50
12
3495533E00
ref: 12
CUSHION,METER
€ 3.00
13
0916005037
ref: 13
WASHER(5.5X16X1.2)
€ 1.50
14
0216205083
ref: 14
02162-0508A
SCREW
€ 2.00
15-1
3498142E00
ref: 15-1
34981-42E01
ROTOR,SPEED
€ 16.00
15-2
3498135F00
ref: 15-2
34981-38G01
ROTOR,SPEED
€ 15.00
16-2
3499035F00
ref: 16-2
SENSOR,SPEED
€ 112.50
16-6
3499033E10
ref: 16-6
34990-35F00
SENSOR,SPEED
€ 112.50
17
0712005103
ref: 17
07120-0510B
BOLT
€ 2.00
18-1
0713008203
ref: 18-1
07130-0820B
BOLT
€ 3.00
18-2
0713008253
ref: 18-2
07130-0825B
BOLT
€ 3.50
