FRAME COVER (MODEL X)
TL1000R 1999 (X) USA (E03)

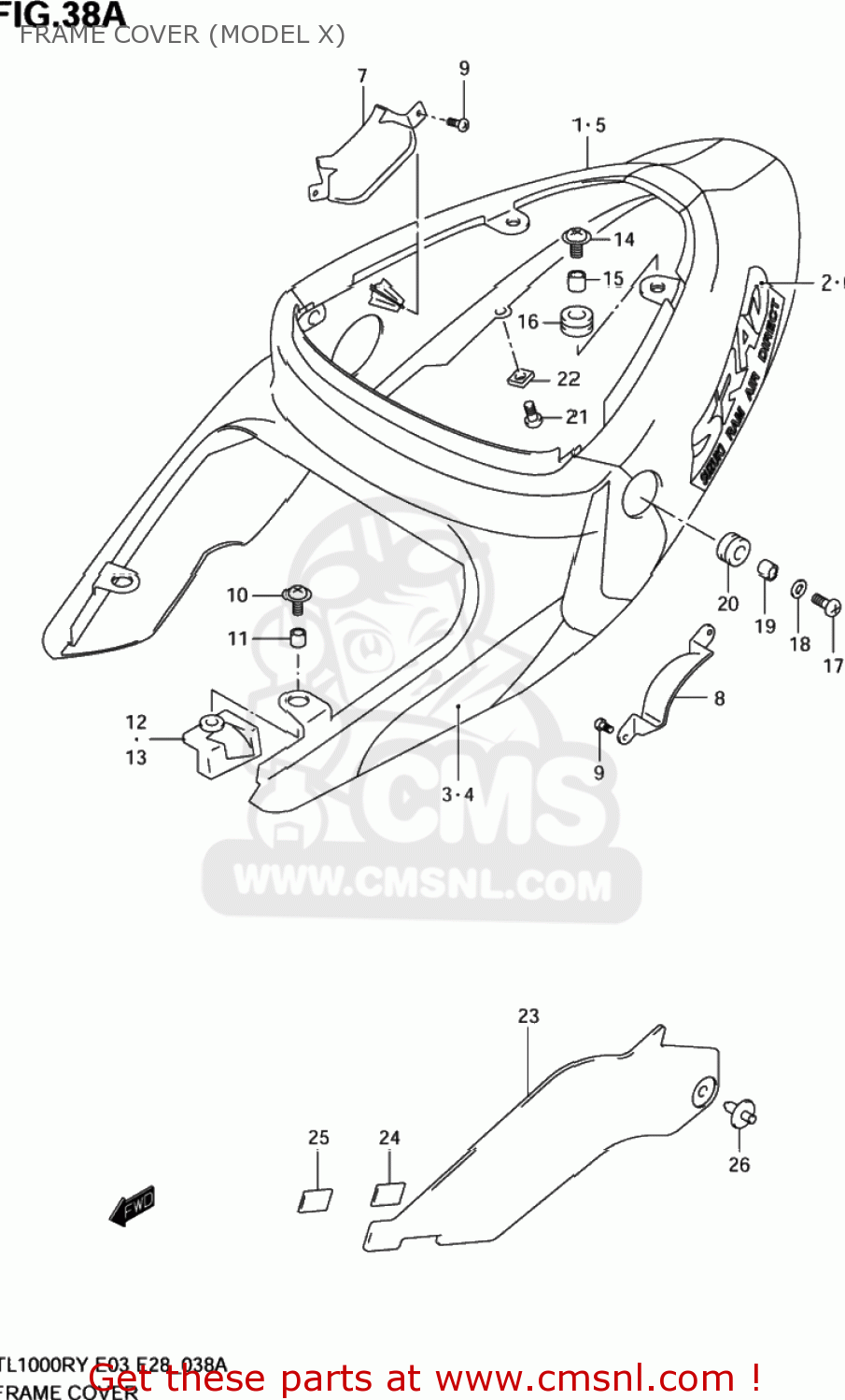

Frame cover (model x) diagram TL1000R 1999 (X) USA (E03)
FRAME COVER (MODEL X) TL1000R 1999 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4711002FC00JW
ref: 1
COVER,FRAME (WHITE)
€ 409.00
2
6813133E30K8S
ref: 2
EMBLEM,FRAME COVER
€ 18.50
3
6813002FA0D4Z
ref: 3
TAPE SET,FRAME COVER,R
€ 42.50
4
6814002FA0D4Z
ref: 4
TAPE SET,FRAME COVER,L
€ 44.50
5-1
4711002FD0N0W
ref: 5-1
COVER,FRAME
€ 557.50
5-2
4711002FD0N0Y
ref: 5-2
COVER,FRAME
€ 557.50
6-1
6813102F30N1A
ref: 6-1
EMBLEM,FRAME COVER
€ 16.00
6-2
6813102F30N1B
ref: 6-2
EMBLEM,FRAME COVER
€ 13.00
7
4751102FA0
ref: 7
CAP,FRAME COVER HOLE,R
€ 8.00
8
4752102FA0
ref: 8
CAP,FRAME COVER HOLE,L
€ 7.50
9
0354104163
ref: 9
03541-0416A
SCREW
€ 1.50
10
0913606022
ref: 10
SCREW(6X20)
€ 2.50
11
0918006263
ref: 11
SPACER(6.5X9X9)
€ 2.00
12
4716102FA0
ref: 12
CUSHION,FRAME COVER,R
€ 10.50
13
4726102FA0
ref: 13
CUSHION,FRAME COVER,L
€ 15.50
14
0913606105
ref: 14
SCREW(6X20)
€ 2.00
15
0918006286
ref: 15
SPACER(6.5X10X9.4)
€ 2.50
16
0932010045
ref: 16
CUSHION
€ 3.50
17
0913906071
ref: 17
SCREW(6X20)
€ 5.00
18
0916006054
ref: 18
WASHER(6.5X22X1.6)
€ 2.00
19
0918006258
ref: 19
SPACER(6.5X9X6.7)
€ 3.00
20
9443326B00
ref: 20
CUSHION
€ 4.00
21
0940907313
ref: 21
CLIP
€ 3.50
22
0914805038
ref: 22
NUT
€ 2.50
23
4732102FA0
ref: 23
COVER,FRAME,FRONT,RIGHT
€ 0.00
24
4732202FA0
ref: 24
FASTENER,NO.1
€ 0.00
25
4732302FA0
ref: 25
FASTENER,NO.2
€ 0.00
26
09409073306GS
ref: 26
CLIP(GRAY)
€ 2.50
