TURNSIGNAL LAMP
TL1000R 1999 (X) USA (E03)

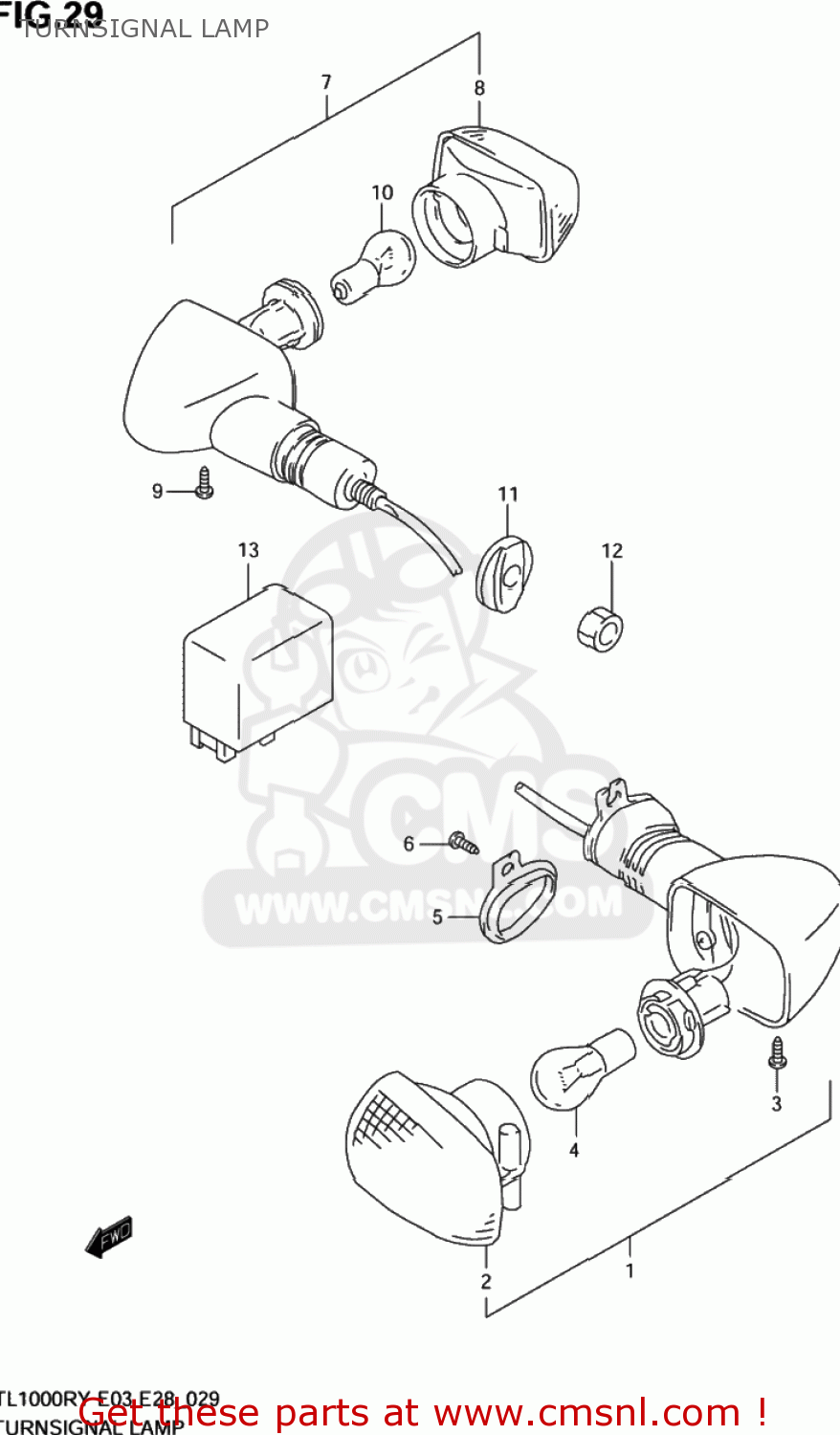

Turnsignal lamp diagram TL1000R 1999 (X) USA (E03)
TURNSIGNAL LAMP TL1000R 1999 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
3560133E00
ref: 1-1
35601-33E30
LAMP ASSEMBLY,FRONT TURN SIGNAL
€ 84.00
1-2
3560133E30
ref: 1-2
LAMP ASSY,FR TURN SIGNAL,R
€ 84.00
1-3
3560233E00
ref: 1-3
35602-33E30
LAMP ASSEMBLY,FRONT TURN SIGNAL
€ 84.00
1-4
3560233E30
ref: 1-4
LAMP ASSY,FR TURN SIGNAL,L
€ 84.00
2
3561033E00
ref: 2
LAMP UNIT
€ 31.00
3
0324204123
ref: 3
03242-0412B
SCREW
€ 2.00
4
0947112045
ref: 4
BULB(12V21W)
€ 5.00
5
3562933E00
ref: 5
PLATE,FR TURNSIGNAL LAMP
€ 25.50
6
0351105103
ref: 6
03511-0510A
SCREW
€ 2.00
7-1
3560333E60
ref: 7-1
LAMP ASSY,RR TURNSIGNAL,R
€ 58.00
7-2
3560433E60
ref: 7-2
LAMP ASSY,RR TURNSIGNAL,L
€ 116.00
8
3561033E00
ref: 8
LAMP UNIT
€ 31.00
9
0324204123
ref: 9
03242-0412B
SCREW
€ 2.00
10
0947112045
ref: 10
BULB(12V21W)
€ 5.00
11
3569517C00
ref: 11
SPACER,RR TURNSIGNAL
€ 3.00
12
0831000103
ref: 12
08310-0010A
NUT
€ 2.00
13
3861003F00
ref: 13
RELAY ASSY,TURNSIGNAL LAMP
€ 88.50
