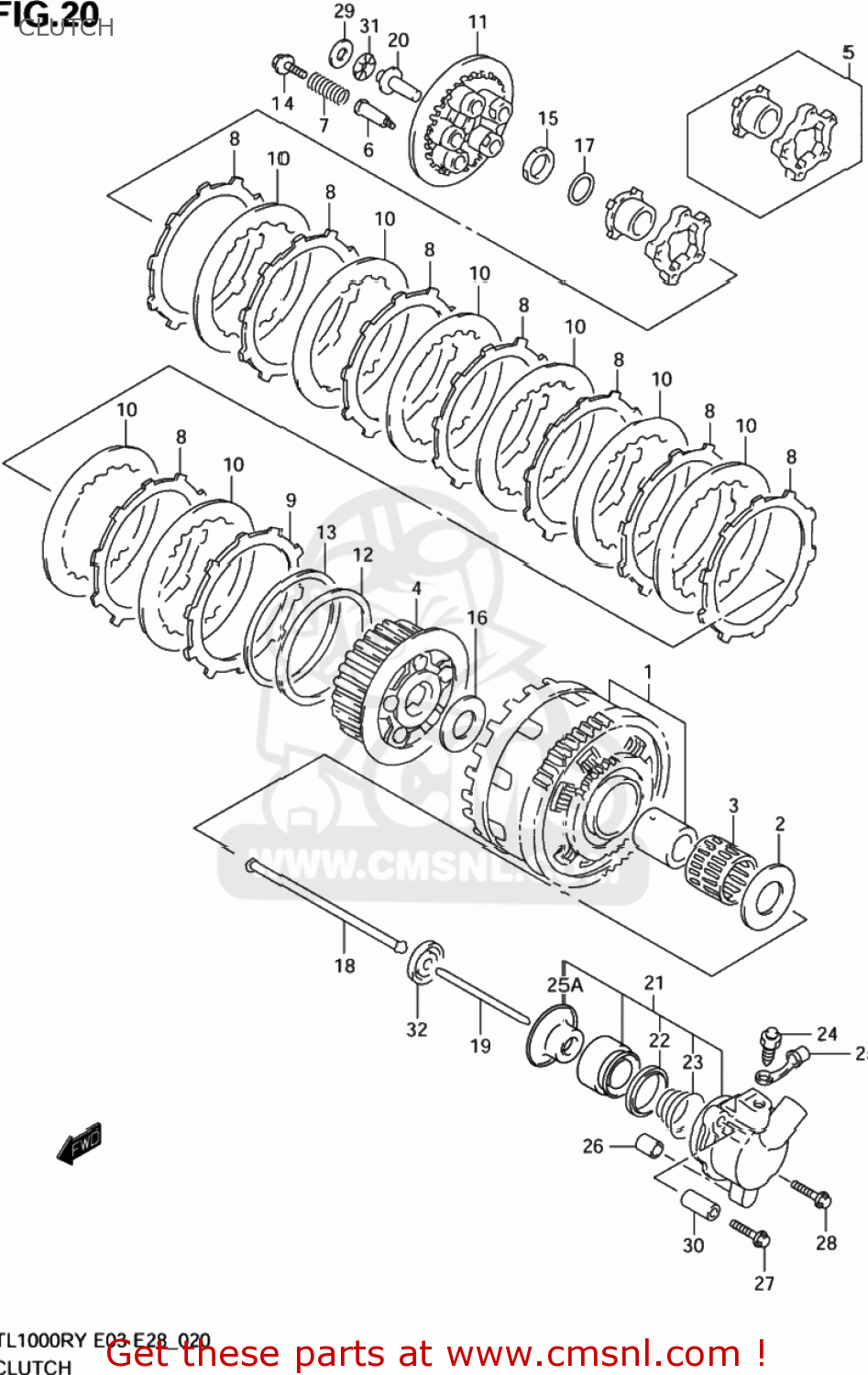

ref
part #
description
quantity
1
GEAR ASSY,PRI DRIVEN
2-1
WASHER(25X54X2.5)
2-2
WASHER(25X54X2.5)
3
BEARING(35X40X35.8)
4
HUB,CLUTCH SLEEVE
5
CAM SET,CLUTCH
6-2
BOLT,CLUTCH SPRING SUPPORT
7
SPRING,CLUTCH
8-1
PLATE,CLUTCH DRIVE (NAS)
8-2
PLATE,CLUTCH DRIVE (NAS)
8-3
PLATE,CLUTCH DRIVE NO.1 (NAS)
9-1
PLATE,CLUTCH DRIVE NO (NAS)
9-2
PLATE,CLUTCH DRIVE NO.2 (NAS)
10-1
PLATE,CLUTCH DRIVEN (NAS)
10-2
PLATE,CLUTCH DRIVEN (NAS)
11
DISC,CLUTCH PRESSURE
12
SEAT,WAVE WASHER
13
WASHER,CLUTCH PLATE WAVE
14-1
BOLT,CLUTCH SPRING
14-2
BOLT,CLUTCH SPRING
15
NUT
16-1
WASHER(25X50X2.5)
16-2
WASHER(25X50X2.5)
17
WASHER
18
ROD,CLUTCH PUSH,R
19
ROD,CLUTCH PUSH,L
20
PIECE,CLUTCH PUSH
21
CYLINDER,CLUTCH RELEASE
22
CUP
23
SPRING
24
BLEEDER
25
CAP,BLEEDER
25A
COVER,DUST
26
PIN
27
BOLT
28
BOLT
29
WASHER(15.5X28X1)
30
SPACER(6.2X12X50)
31
BEARING(15X28X2)
32-1
SEAL,OIL(6X34X5.5)
32-1
SEAL,OIL(6X34X5.5)
32-2
SEAL, CLUTCH PUSH (MODEL K2/K36X34X5.5)
32-2
SEAL, CLUTCH PUSH (MODEL K2/K36X34X5.5)
