STEERING DAMPER

TL1000R 2000 (Y) USA (E03)

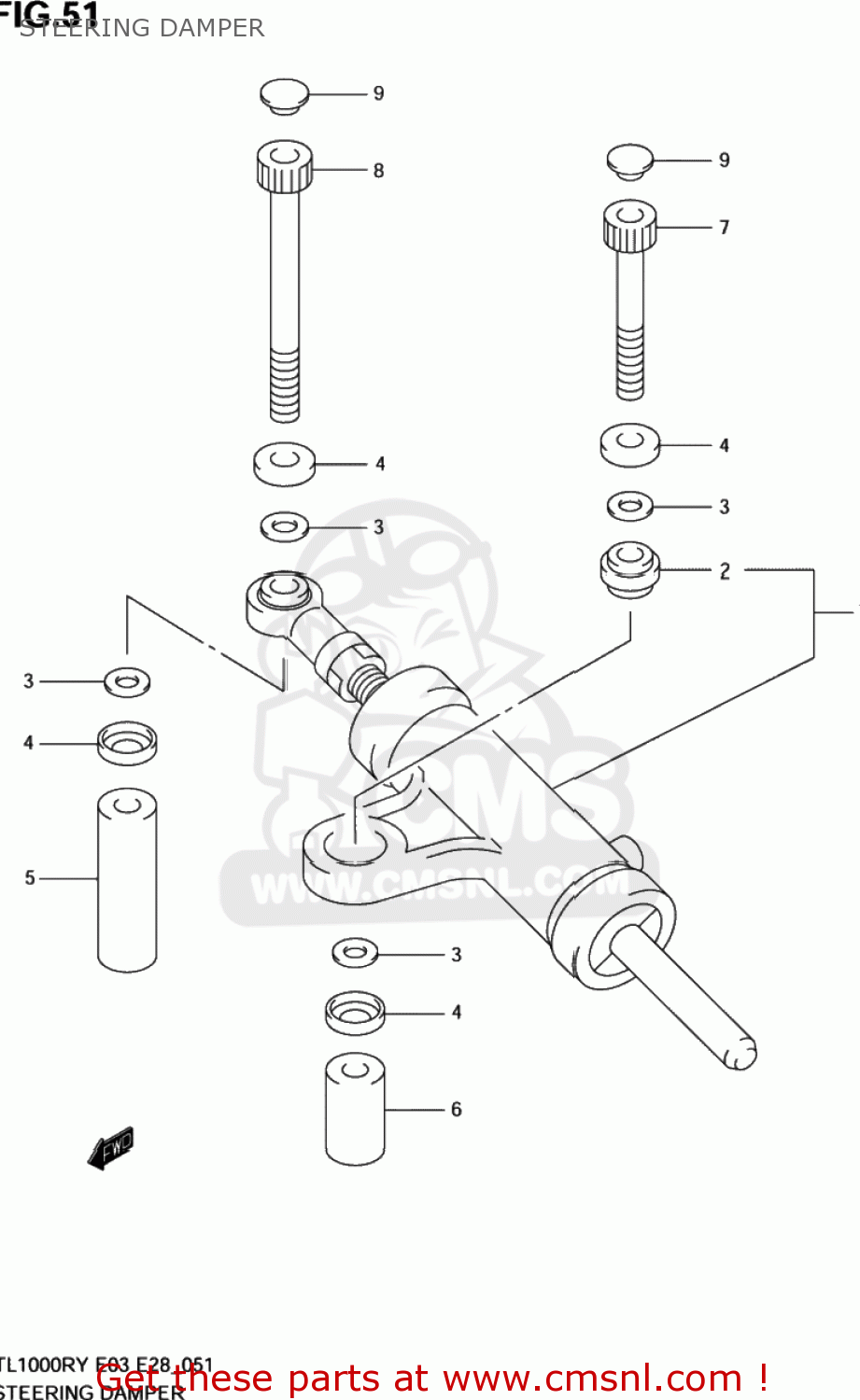

Steering damper diagram TL1000R 2000 (Y) USA (E03)

STEERING DAMPER TL1000R 2000 (Y) USA (E03)

STEERING DAMPER TL1000R 2000 (Y) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

5175002FB0
ref: 1-1

DAMPER ASSY,STEERING

€ 0.00

1-2

5175002FA0
ref: 1-2

DAMPER,STEERING

€ 922.50

2

0926908003
ref: 2

BEARING(8X17.5X11)

€ 39.50

3

0918108106
ref: 3

SHIM(8X12X0.8)

€ 3.00

4

6433940410
ref: 4

6433940410

5

5172202FA0
ref: 5

SPACER,STEERING DAMPER

€ 14.50

6

5172202F10
ref: 6

SPACER,STEERING DAMPER

€ 10.50

7

0713008557
ref: 7

BOLT

€ 3.50

8

0713008907
ref: 8

BOLT

€ 4.50

9

0925006011
ref: 9

CAP(OD:11)

€ 2.50
