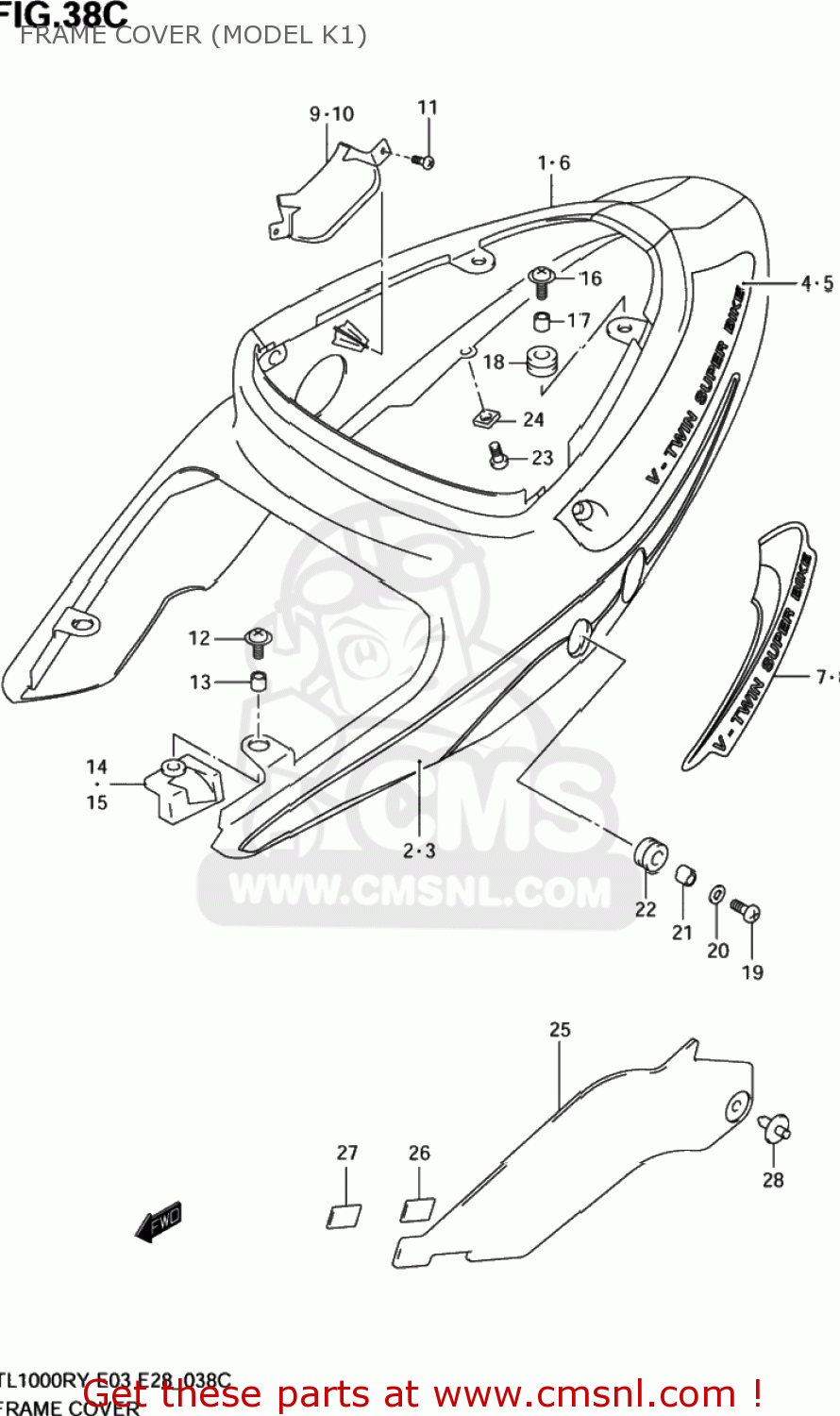

FRAME COVER (MODEL K1)

ref

part #

description

quantity

1

4711002FG0019
ref: 1

COVER,FRAME(BLACK)

€ 535.50

2

6813002FD0D4Z
ref: 2

TAPE SET,FRAME COVER,R

€ 32.00

3

6814002FD0D4Z
ref: 3

TAPE SET, LH LOWER

€ 31.50

4

6813502FD03SP
ref: 4

TAPE,FRAME COVER,R

€ 19.50

5

6814502FD03SP
ref: 5

TAPE,FRAME COVER,L

€ 22.00

6

4711002FH0Y9H
ref: 6

COVER,FRAME(YELLOW)

€ 484.50

7

6813502FE0FL7
ref: 7

TAPE,FRAME COVER,R

€ 17.00

8

6814502FE0FL7
ref: 8

TAPE,FRAME COVER,L

€ 17.00

9

4751102FA0
ref: 9

CAP,FRAME COVER HOLE,R

€ 8.00

10

4752102FA0
ref: 10

CAP,FRAME COVER HOLE,L

€ 7.50

11

0354104163
ref: 11
03541-0416A

SCREW

€ 1.50

12

0913606022
ref: 12

SCREW(6X20)

€ 2.50

13

0918006263
ref: 13

SPACER(6.5X9X9)

€ 2.00

14

4716102FA0
ref: 14

CUSHION,FRAME COVER,R

€ 10.50

15

4726102FA0
ref: 15

CUSHION,FRAME COVER,L

€ 15.50

16

0913606105
ref: 16

SCREW(6X20)

€ 2.00

17

0918006286
ref: 17

SPACER(6.5X10X9.4)

€ 2.50

18

0932010045
ref: 18

CUSHION

€ 3.50

19

0913906071
ref: 19

SCREW(6X20)

€ 5.00

20

0916006054
ref: 20

WASHER(6.5X22X1.6)

€ 2.00

21

0918006258
ref: 21

SPACER(6.5X9X6.7)

€ 3.00

22

9443326B00
ref: 22

CUSHION

€ 4.00

23

0940907313
ref: 23

CLIP

€ 3.50

24

0914805038
ref: 24

NUT

€ 2.50

25

4732102FA0
ref: 25

COVER,FRAME,FRONT,RIGHT

€ 0.00

26

4732202FA0
ref: 26

FASTENER,NO.1

€ 0.00

27

4732302FA0
ref: 27

FASTENER,NO.2

€ 0.00

28

09409073306GS
ref: 28

CLIP(GRAY)

€ 2.50
