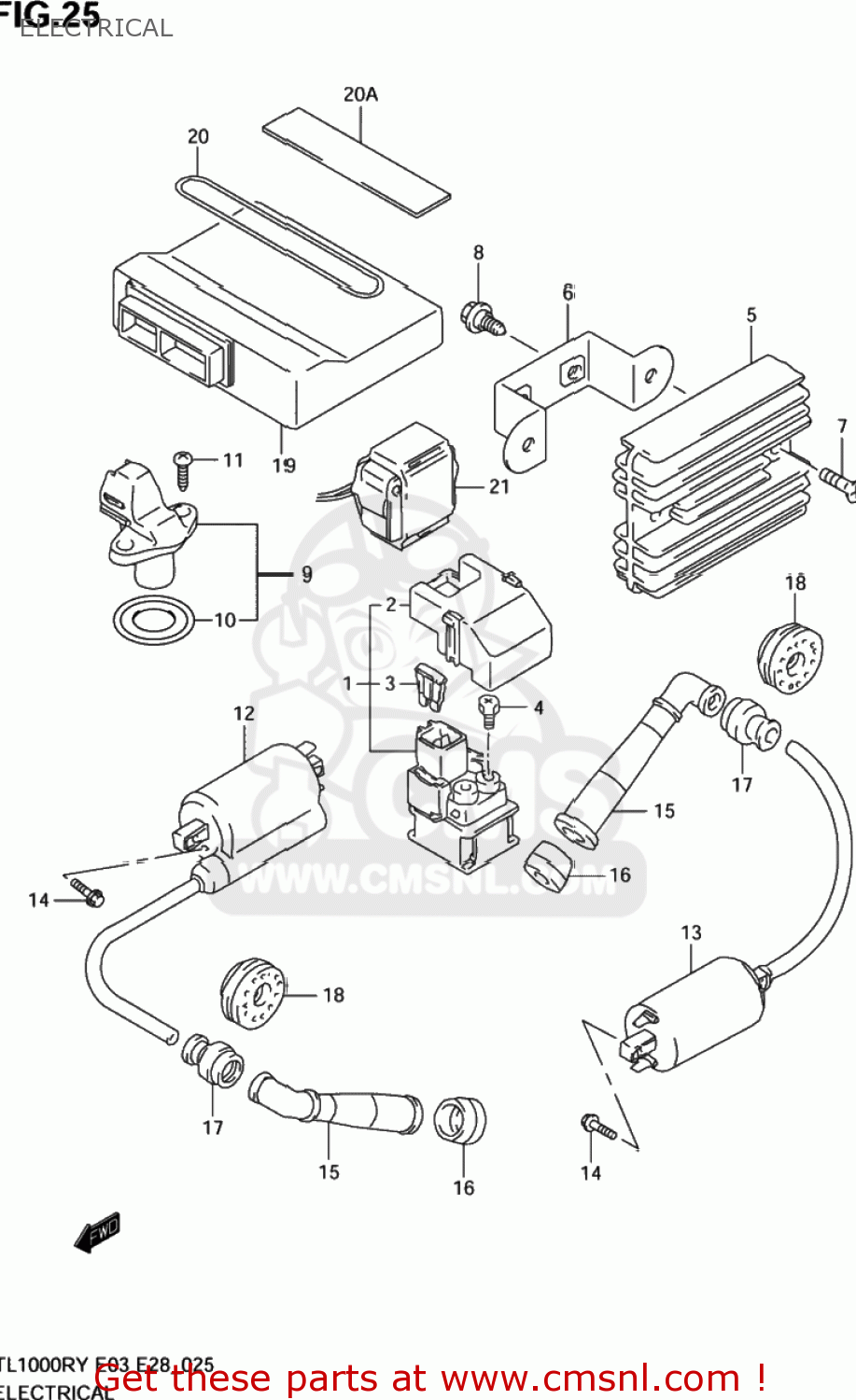

ELECTRICAL

ref

part #

description

quantity

1

3180021E20
ref: 1

RELAY ASSY,STARTING MOTOR

€ 69.00

2

3186121E20
ref: 2
31861-47E00

COVER,RELAY ASSEMBLY

€ 10.50

3

0948130101
ref: 3

FUSE(30A)

€ 6.00

4

0912806013
ref: 4

SCREW(6X8)

€ 1.50

5

3280002F00
ref: 5

RECTIFIER ASSY

€ 368.00

6

3283102F10
ref: 6

BRACKET,RECT FTG

€ 7.00

7-1

0913606093
ref: 7-1
01560-0620A

SCREW (6X20)

€ 2.00

7-2

0216206203
ref: 7-2
02162-0620C

BOLT

€ 2.00

8-1

0911106066
ref: 8-1

BOLT(6X16)

€ 2.50

8-2

0911306001
ref: 8-2

BOLT(6X16)

€ 3.00

9-1

3216002F10
ref: 9-1

SENSOR ASSY,CAM POSITION

€ 127.50

9-2

3216002F00
ref: 9-2

SENSOR ASSY,CAM POSITION

€ 127.50

9-3

3216002F10
ref: 9-3

SENSOR ASSY,CAM POSITION

€ 127.50

10

3216102F00
ref: 10

PACKING (NAS)

€ 8.00

11

0211206163
ref: 11
02112-0616A

SCREW 6X16

€ 2.00

12

3341002F00
ref: 12

COIL ASSY,IGNITION

€ 112.50

13

3342038A11
ref: 13

COIL ASSY,IGNITION

€ 150.00

14

0216205203
ref: 14
02162-0520B

SCREW, PRESSURE SENSOR

€ 2.00

15

3351048B10
ref: 15

CAP,SPARK PLUG

€ 29.50

16

3354123E01
ref: 16

SEAL,SPARK PLUG CAP

€ 7.00

17

3354238B00
ref: 17

SEAL,HIGH TENSION CORD

€ 4.50

18

3354302F00
ref: 18

COVER,SPARK PLUG CAP

€ 22.50

19

3292002FD0
ref: 19

CONTROL UNIT,FI

€ 0.00

20

3365112910
ref: 20

BAND,BATTERY

€ 6.00

20A

3365207D00
ref: 20A

PROTECTOR(80X80X2)

€ 4.50

20A

3365207D00
ref: 20A

PROTECTOR(80X80X2)

€ 4.50

21

3396002F00
ref: 21

SENSOR ASSY,FUEL CUT

€ 85.00

all assemblies
