FRONT DAMPER

TL1000R 2002 (K2) USA (E03)

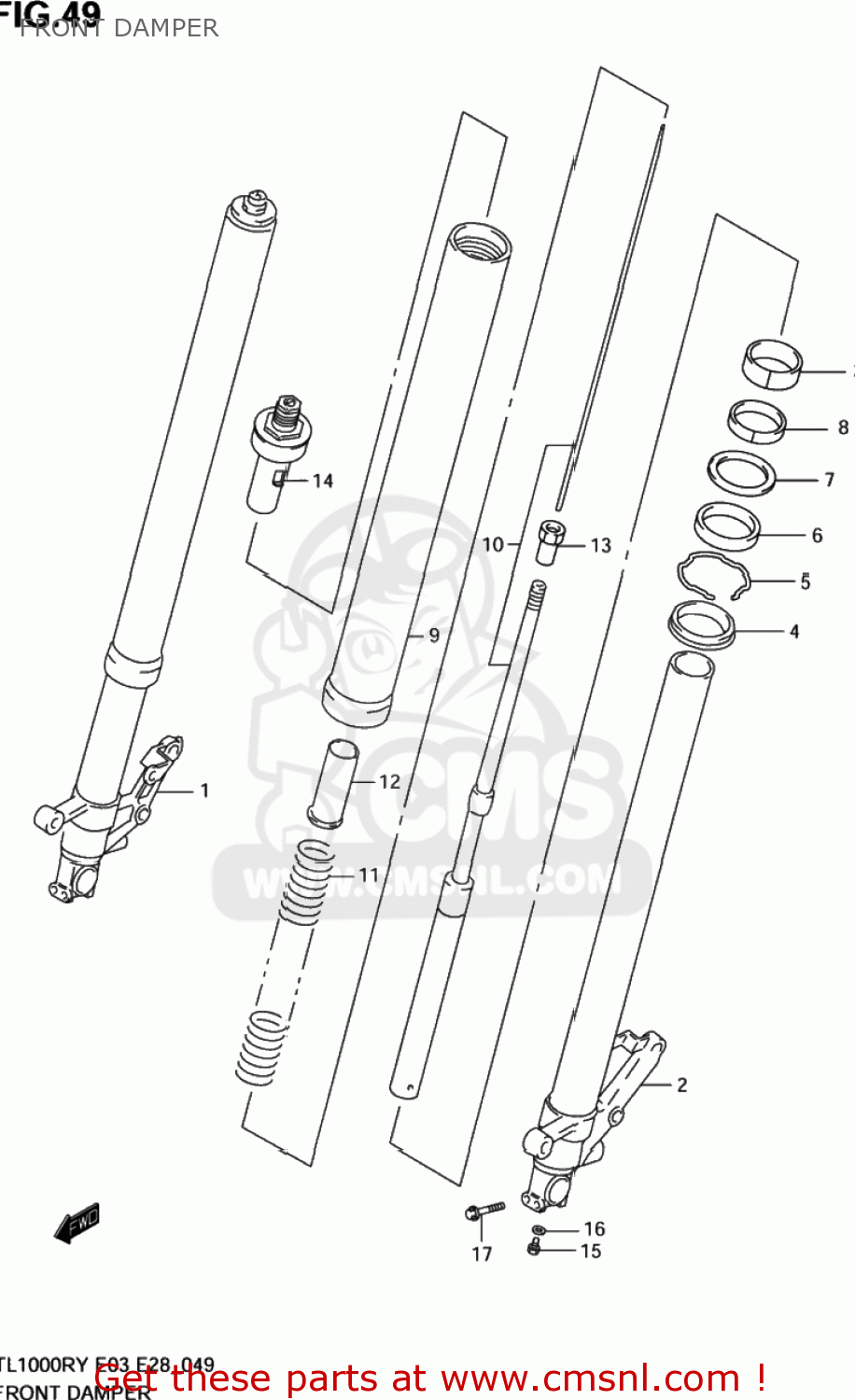

Front damper diagram TL1000R 2002 (K2) USA (E03)

FRONT DAMPER TL1000R 2002 (K2) USA (E03)

FRONT DAMPER TL1000R 2002 (K2) USA (E03)

prices are in EUR

ref

part #

description

quantity



5110302FA0
ref:

DAMPER ASSY,FR FORK,R

€ 925.50



5110302FC0
ref:

DAMPER ASSY, FRONT FORK LH

€ 0.00



5110402FA0
ref:

DAMPER ASSEMBLY,FRONT FORK

€ 1,466.00



5110402FC0
ref:

DAMPER ASSY, FRONT FORK LH

€ 0.00

1-1

5111002FA0
ref: 1-1

TUBE,INNER,R

€ 493.50

1-2

5111002FC0
ref: 1-2

TUBE,INNER,R

€ 0.00

2-1

5112002FA0
ref: 2-1

TUBE,INNER,L

€ 451.00

2-2

5112002FC0
ref: 2-2

TUBE,INNER,L

€ 0.00

3

5112140C00
ref: 3

PISTON

€ 11.50

4

5117302FA0
ref: 4

SEAL,DUST

€ 21.00

5

5115614200
ref: 5

RING,STOPPER

€ 4.50

6

5115302FA0
ref: 6

SEAL,OIL

€ 16.50

7

5115814200
ref: 7

WASHER

€ 4.00

8

5116702F00
ref: 8

METAL,SLIDE

€ 20.50

9-1

5113002FA0
ref: 9-1

TUBE,OUTER

€ 471.00

9-2

5113002FC0
ref: 9-2

TUBE,OUTER

€ 0.00

10

5114602FA0
ref: 10

CYLINDER

€ 444.50

11

5117102FA0
ref: 11

SPRING,FR

€ 75.00

12

5117602FA0
ref: 12

SPACER,SPRING

€ 17.50

13

5112927C00
ref: 13

NUT,PISTON ROD

€ 19.50

14

5135102FA0
ref: 14

CAP,FR FORK

€ 173.00

15

5114740C00
ref: 15

BOLT,OIL LOCK PIECE,12X22

€ 24.50

16

5114840300
ref: 16

GASKET,CYLINDER (NAS)

€ 2.50

17

0155008457
ref: 17

BOLT

€ 4.00
