GASKET SET

TL1000R 2002 (K2) USA (E03)

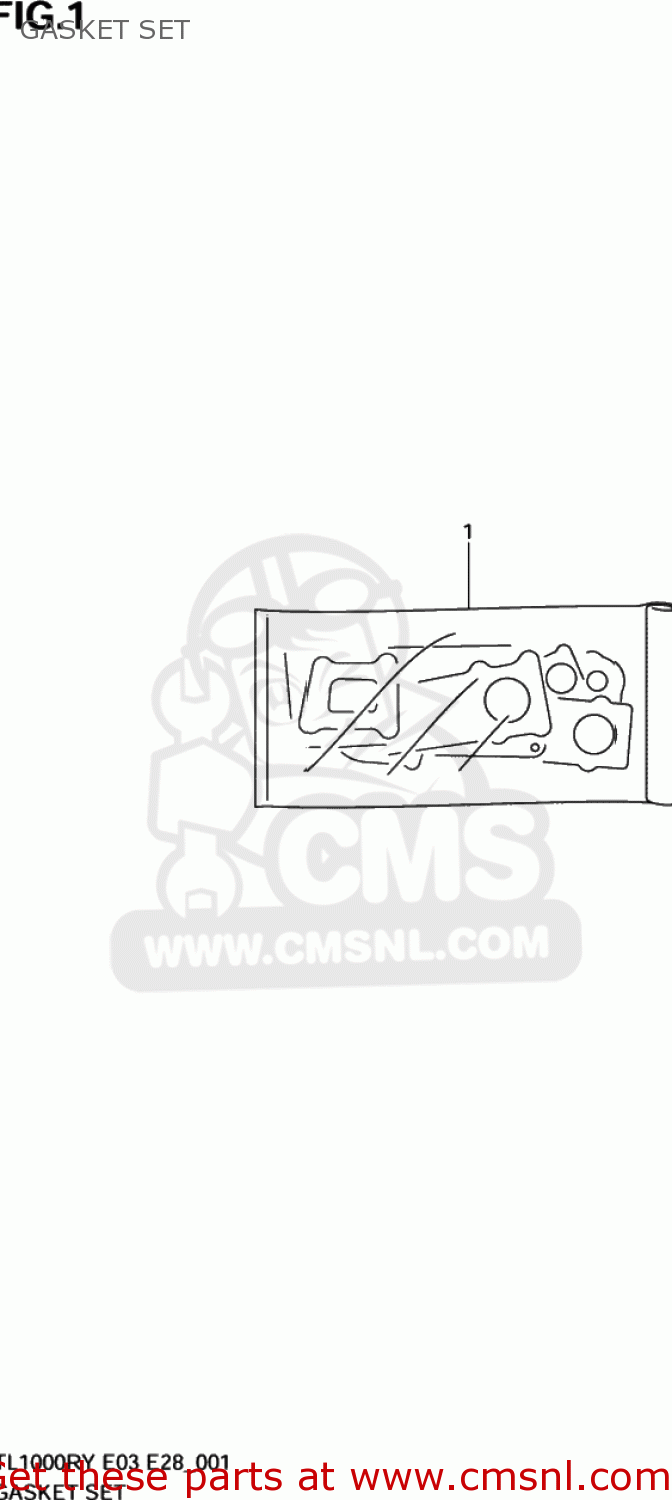

Gasket set diagram TL1000R 2002 (K2) USA (E03)

GASKET SET TL1000R 2002 (K2) USA (E03)
GASKET SET TL1000R 2002 (K2) USA (E03)
GASKET SET TL1000R 2002 (K2) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
1140102861
ref: 1-1
11401-02870
GASKET SET (NAS)
€ 259.50
1-1
1140102861
ref: 1-1
11401-02870
GASKET SET (NAS)
€ 259.50
1-2
1140102862
ref: 1-2
11401-02870
GASKET SET (NAS)
€ 259.50
1-2
1140102862
ref: 1-2
11401-02870
GASKET SET (NAS)
€ 259.50
1-3
1140102870
ref: 1-3
GASKET SET (NAS)
1140102870
€ 259.50
1-3
1140102870
ref: 1-3
GASKET SET (NAS)
1140102870
€ 259.50
2-1
1114102F00
ref: 2-1
11141-02F01
GASKET,CYLINDER HEAD,FRONT (NAS)
€ 42.00
2-1
1114102F00
ref: 2-1
11141-02F01
GASKET,CYLINDER HEAD,FRONT (NAS)
€ 42.00
2-2
1114102F01
ref: 2-2
GASKET,CYLINDER HEAD (NAS)
1114102F01
€ 42.00
2-2
1114102F01
ref: 2-2
GASKET,CYLINDER HEAD (NAS)
1114102F01
€ 42.00
3
1117302F00
ref: 3
GASKET,CYL HEAD COVER NO.1 (NAS)
1117302F00
€ 29.00
3
1117302F00
ref: 3
GASKET,CYL HEAD COVER NO.1 (NAS)
1117302F00
€ 29.00
4
1117817E00
ref: 4
GASKET,CYL HEAD COVER NO.2
1117817E00
€ 6.00
4
1117817E00
ref: 4
GASKET,CYL HEAD COVER NO.2
1117817E00
€ 6.00
5-1
1124102F00
ref: 5-1
11241-02F01
GASKET,CYLINDER,FRONT (NAS)
1124102F00
€ 19.50
5-1
1124102F00
ref: 5-1
11241-02F01
GASKET,CYLINDER,FRONT (NAS)
1124102F00
€ 19.50
5-2
1124102F01
ref: 5-2
GASKET,CYLINDER FR (NAS)
1124102F01
€ 19.50
5-2
1124102F01
ref: 5-2
GASKET,CYLINDER FR (NAS)
1124102F01
€ 19.50
6-1
1124202F00
ref: 6-1
11242-02F01
GASKET,CYLINDER,REAR (NAS)
€ 19.50
6-1
1124202F00
ref: 6-1
11242-02F01
GASKET,CYLINDER,REAR (NAS)
€ 19.50
6-2
1124202F01
ref: 6-2
GASKET,CYLINDER RR (NAS)
1124202F01
€ 19.50
6-2
1124202F01
ref: 6-2
GASKET,CYLINDER RR (NAS)
1124202F01
€ 19.50
7-1
1148202F00
ref: 7-1
11482-02F10
GASKET,CLUTCH COVER (NAS)
1148202F00
€ 21.50
7-1
1148202F00
ref: 7-1
11482-02F10
GASKET,CLUTCH COVER (NAS)
1148202F00
€ 21.50
7-2
1148202F10
ref: 7-2
GASKET,CLUTCH COVER (NAS)
1148202F10
€ 21.50
7-2
1148202F10
ref: 7-2
GASKET,CLUTCH COVER (NAS)
1148202F10
€ 21.50
8-1
1148302F00
ref: 8-1
11483-02F10
GASKET,MAGNETO COVER (NAS)
1148302F00
€ 17.50
8-1
1148302F00
ref: 8-1
11483-02F10
GASKET,MAGNETO COVER (NAS)
1148302F00
€ 17.50
8-2
1148302F10
ref: 8-2
GASKET,MAGNETO COVER (NAS)
1148302F10
€ 17.50
8-2
1148302F10
ref: 8-2
GASKET,MAGNETO COVER (NAS)
1148302F10
€ 17.50
9
1148402F10
ref: 9
O RING,CLUTCH COVER OUTER
1148402F10
€ 17.50
10-1
1148502F00
ref: 10-1
11485-02F10
GASKET,GEAR SHIFT COVER (NAS)
1148502F00
€ 4.00
10-1
1148502F00
ref: 10-1
11485-02F10
GASKET,GEAR SHIFT COVER (NAS)
1148502F00
€ 4.00
10-2
1148502F10
ref: 10-2
GASKET,GEAR SHIFT COVER (NAS)
1148502F10
€ 4.00
10-2
1148502F10
ref: 10-2
GASKET,GEAR SHIFT COVER (NAS)
1148502F10
€ 4.00
11
1283719B10
ref: 11
GASKET,TENSIONER ADJUSTER (NAS)
1283719B10
€ 3.00
12
1283724A10
ref: 12
GASKET,TENSIONER ADJUSTER (NAS)
1283724A10
€ 3.50
13
1392585553
ref: 13
GASKET,UNION BOLT (NAS)
€ 2.50
14
1418102F00
ref: 14
GASKET,MUFFLER JOINT (NAS)
1418102F00
€ 7.00
15
1418131D00
ref: 15
GASKET,EXHAUST PIPE (NAS)
1418131D00
€ 9.50
16
0916111008
ref: 16
WASHER(10.6X25.5X2.3)
0916111008
€ 4.50
17
0916806024
ref: 17
GASKET(5.8X11X1.2) (NAS)
0916806024
€ 2.00
18
0928055005
ref: 18
O RING(D:2.4,ID:55.6)
0928055005
€ 5.50
