STARTER CLUTCH
TL1000R 2002 (K2) USA (E03)

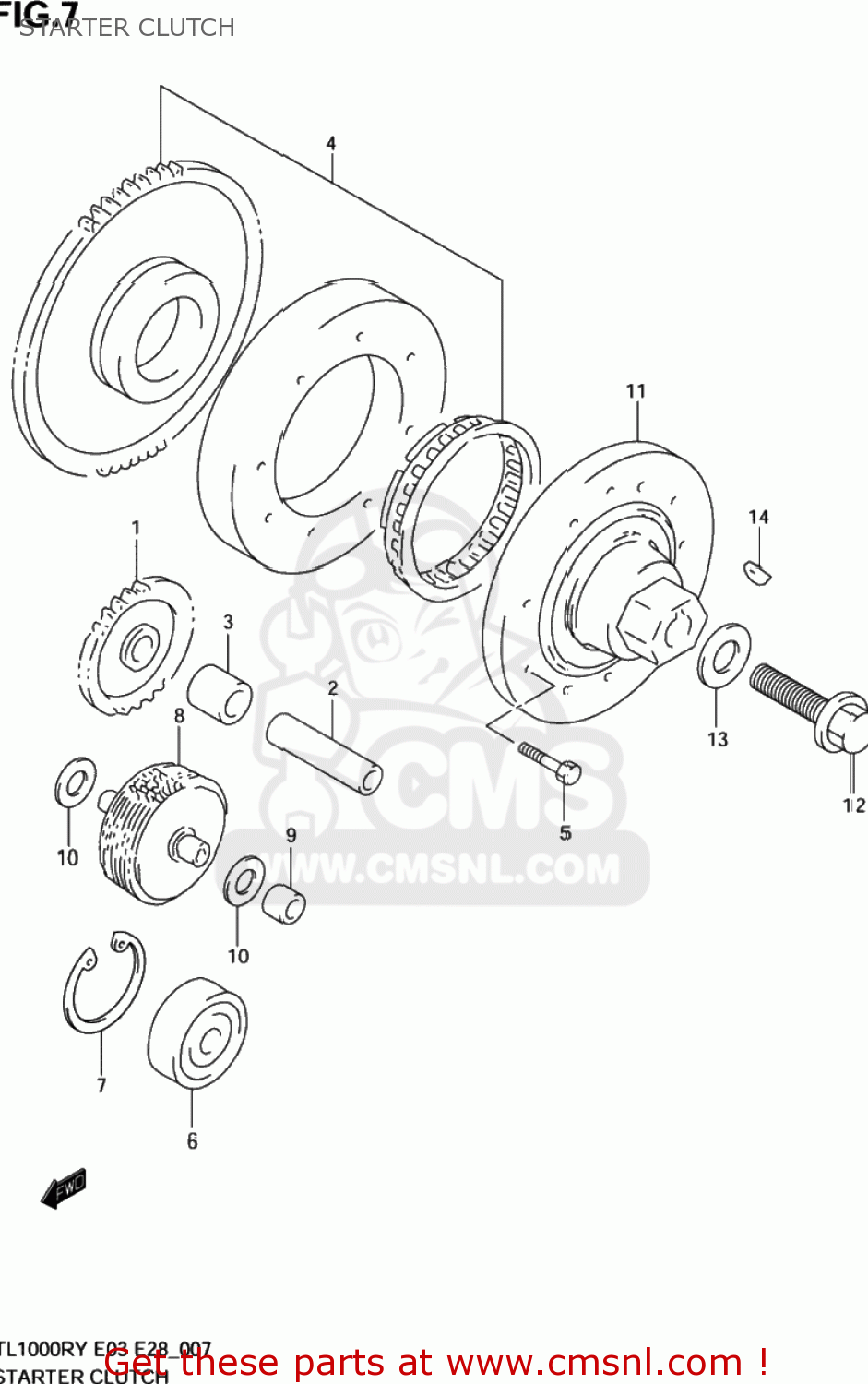

Starter clutch diagram TL1000R 2002 (K2) USA (E03)
STARTER CLUTCH TL1000R 2002 (K2) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1261202F00
ref: 1
GEAR,STARTER IDLE NO.2
€ 44.50
2
0920612002
ref: 2
PIN(7X12X50.5)
€ 9.00
3
0918012140
ref: 3
SPACER(12.5X19X17.5)
€ 5.50
4
1260002841
ref: 4
CLUTCH SET,STARTER
€ 345.00
5
0150006203
ref: 5
01500-0620A
BOLT
€ 2.00
6
0926212001
ref: 6
BEARING(12X28X8)
€ 15.00
7
0833141286
ref: 7
08331-4128A
CIRCLIP
€ 3.50
8
1260012D00
ref: 8
12600-12D01
LIMITER ASSEMBLY,STARTER IDLER GEAR
€ 122.50
8
1260012D00
ref: 8
12600-12D01
LIMITER ASSEMBLY,STARTER IDLER GEAR
€ 122.50
9
1261831D01
ref: 9
BUSH,LIMITER GEAR SHAFT
€ 17.50
10
0821110221
ref: 10
WASHER
€ 2.50
11
1264102F00
ref: 11
HOUSING,STARTER CLUTCH
€ 272.50
12
0910312004
ref: 12
BOLT(12X40)
€ 3.00
13
0916012036
ref: 13
WASHER(12X30X3)
€ 3.00
14
0942004008
ref: 14
KEY
€ 3.50
