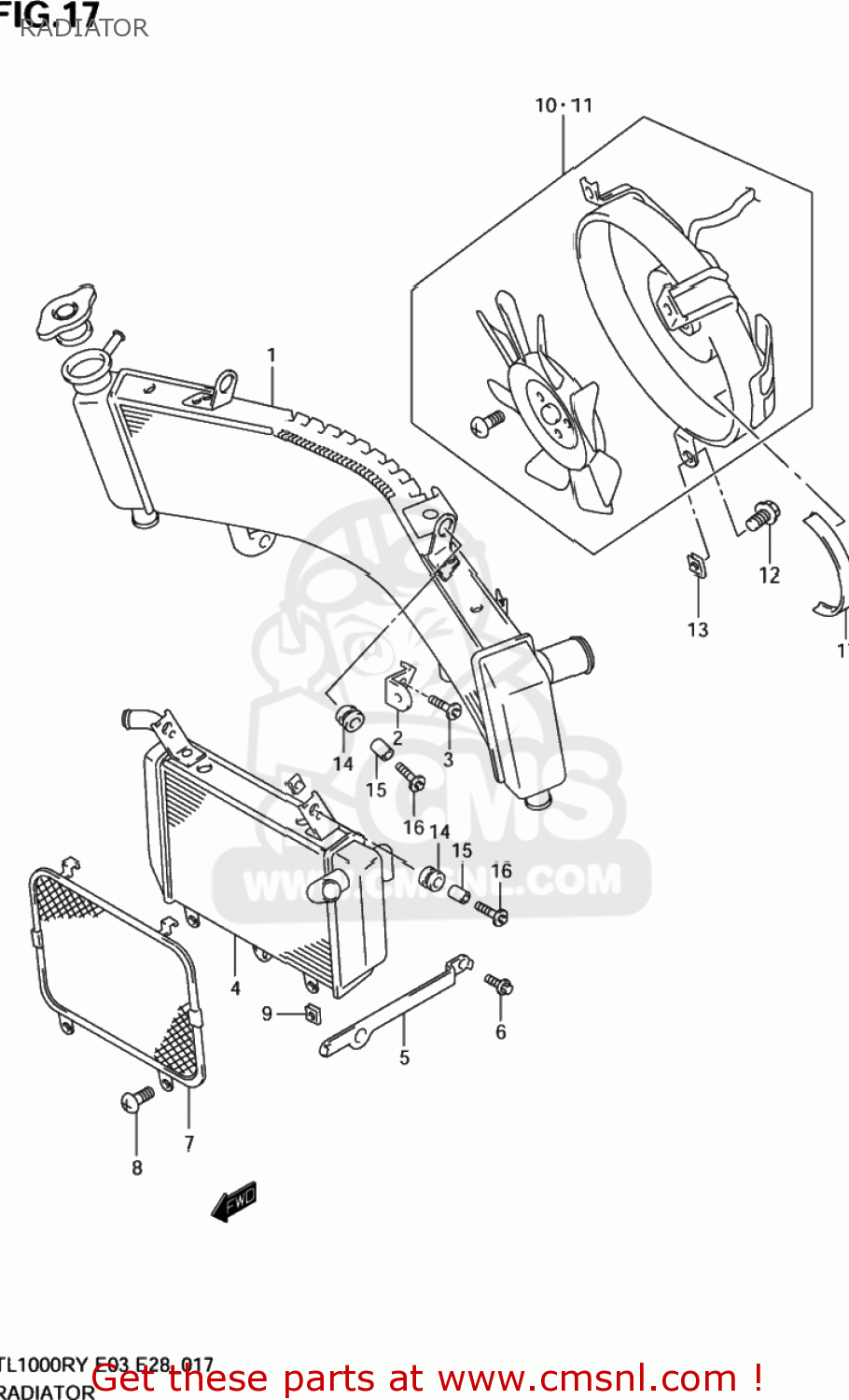

RADIATOR

ref

part #

description

quantity

1-1

1771002FA0
ref: 1-1
17710-02FB0

RADIATOR ASSEMBLY,WATER,UPPER

€ 852.00

1-2

1771002FA1
ref: 1-2
17710-02FB0

RADIATOR ASSY,

€ 852.00

2

1775102FA0
ref: 2

BRACKET,RADIATOR UPR

€ 6.50

3

0155006163
ref: 3
01550-0616A

BOLT

€ 2.50

4-1

1772002FA0
ref: 4-1
17720-02FA1

RADIATOR ASSEMBLY,WATER,LOWER

€ 830.00

4-2

1772002FA1
ref: 4-2

RADIATOR ASSY,WATER LWR

€ 830.00

5

1775202FA0
ref: 5

BRACKET,RADIATOR LWR

€ 12.50

6

0155006123
ref: 6
01550-0612A

BOLT

€ 2.50

7

1776002FA0
ref: 7

COVER,RADIATOR

€ 54.50

8

0214206123
ref: 8
02142-0612A

SCREW 6X12

€ 2.00

9

0914806015
ref: 9

NUT

€ 3.50

10

1781002FA0
ref: 10

FAN ASSY,RADIATOR,R

€ 355.00

11

1782002FA0
ref: 11

FAN ASSY,RADIATOR,L

€ 361.50

12

0155006103
ref: 12
01550-0610A

BOLT

€ 2.50

13

0914806015
ref: 13

NUT

€ 3.50

14

0932010042
ref: 14

CUSHION

€ 4.00

15

0918006290
ref: 15

SPACER(6.5X10X12)

€ 2.50

16-1

0911606147
ref: 16-1

BOLT(6X25)

€ 4.00

16-2

0911806097
ref: 16-2

BOLT(6X25)

€ 2.50

17-1

1781102FA0
ref: 17-1

MOLDING,FAN SHROUD,L,L(L:165)

€ 8.00

17-2

1781202FA0
ref: 17-2

MOLDING,FAN SHROUD,L,R(L:260)

€ 12.00

17-3

1781302FA0
ref: 17-3

MOLDING,FAN SHROUD,R,L(L:225)

€ 10.50

17-4

1781402FA0
ref: 17-4

MOLDING,FAN SHROUD,R,R(L:200)

€ 9.50
