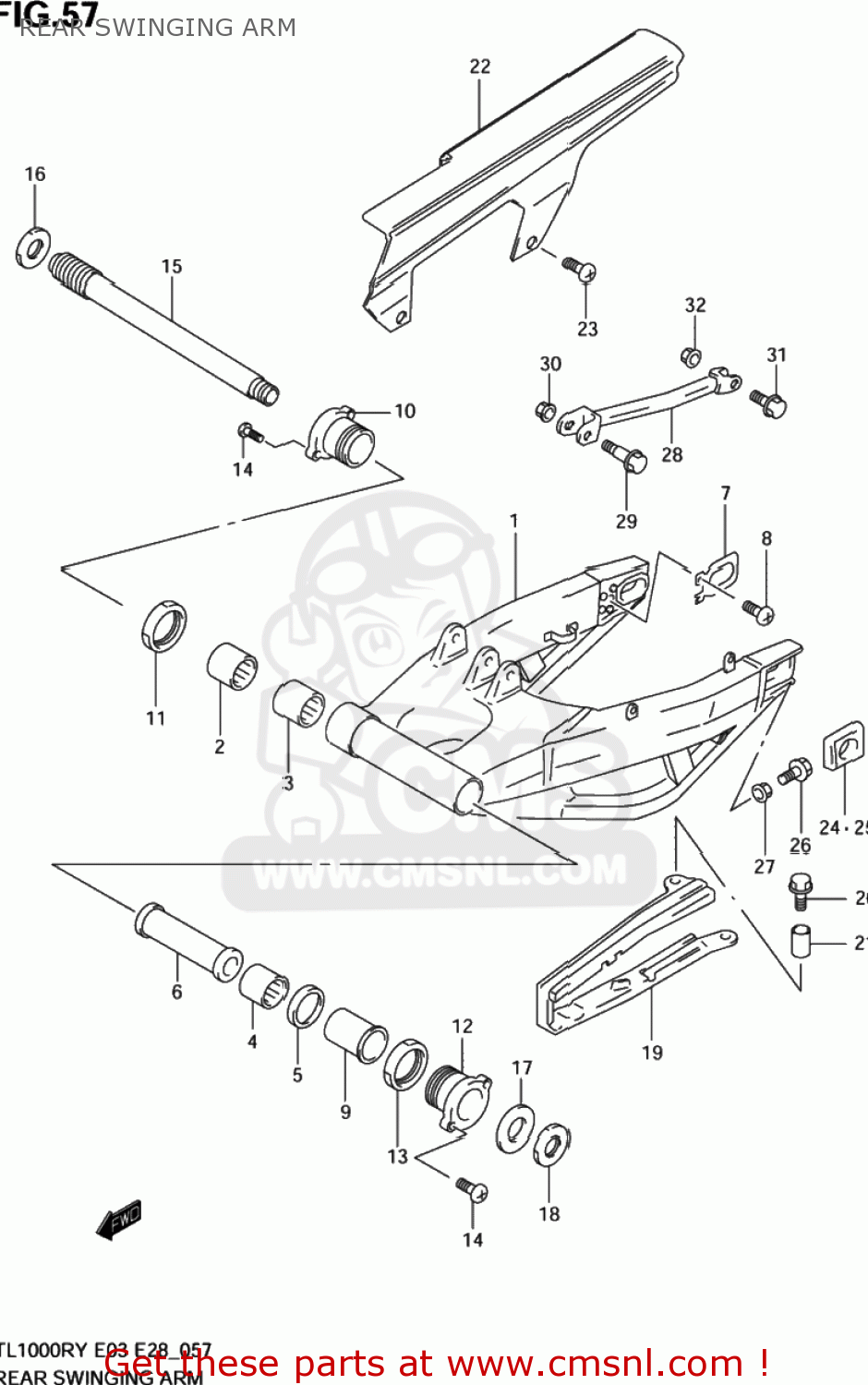

REAR SWINGING ARM

ref

part #

description

quantity

1

6100002FA0
ref: 1

SWINGINGARM ASSY,RR

€ 1,803.00

2

0926225061
ref: 2

BEARING(25X52X15)

€ 27.50

3

0811362057
ref: 3

BEARING

€ 18.00

4

0926330040
ref: 4

BEARING(30X40X25)

€ 31.50

5

0928330053
ref: 5

SEAL,OIL(30X40X6)

€ 8.00

6

6128133E10
ref: 6
61281-33E20

SPACER,REAR SWING PIVOT,CENTER

€ 26.00

7

6112433E00
ref: 7

PLATE,RR SWING ARM BRKT

€ 3.50

8

0214206163
ref: 8
02142-0616A

SCREW

€ 2.50

9

6125102FA0
ref: 9

SPACER,SWINGINGARM PIVOT BRG

€ 18.50

10

6121202FA0
ref: 10

BOSS,RR SWINGINGARM PIVOT,R

€ 49.50

11

6121333E00
ref: 11

NUT,RR SWGARM PIVOT BOSS,R

€ 27.00

12

6121402FA0
ref: 12

BOSS,RR SWINGINGARM PIVOT,L

€ 42.00

13

6121533E00
ref: 13

NUT,RR SWGARM PIVOT BOSS,L

€ 16.00

14

0212205123
ref: 14
02122-0512A

SCREW

€ 2.00

15

6121102FA0
ref: 15

SHAFT,RR SWINGINGARM PIVOT

€ 105.00

16

6121440C31
ref: 16

NUT,RR SWGARM PIVOT BOLT

€ 16.50

17

0916025070
ref: 17

WASHER(25.2X42X3.2)

€ 4.50

18

0915925001
ref: 18
09159-25003

NUT

€ 29.00

19

6127302FA0
ref: 19

BUFFER,CHAIN TOUCH DEFENSE

€ 38.50

20

0911606152
ref: 20

BOLT(6X20)

€ 2.00

21

0918006306
ref: 21

SPACER(6.5X9X5)

€ 2.00

22

6131034E00
ref: 22

CASE,CHAIN

€ 44.00

23

0913906083
ref: 23

SCREW(6X16)

€ 2.50

24

6144533E00
ref: 24

ADJUSTER,CHAIN,R

€ 42.00

25

6144633E10
ref: 25

ADJUSTER,CHAIN,L

€ 42.50

26

0910008287
ref: 26

BOLT(8X50)

€ 3.00

27

0831610083
ref: 27
08316-1008B

NUT

€ 3.00

28

6431002FA0
ref: 28

TORQUELINK,RR

€ 87.50

29

0911108085
ref: 29

BOLT(8X35.5)

€ 5.50

30

0831931087
ref: 30

NUT

€ 2.50

31

0910310019
ref: 31

BOLT(10X37)

€ 2.50

32

0831931107
ref: 32

NUT

€ 3.00
